Apogee Connect 8x8 MP
*Cena sa popustom može da se ostvari ukoliko se plaća gotovinski, virmanom (preko računa) ili odmah debitnom i kreditnom karticom.
Garantujemo najnižu cenu!

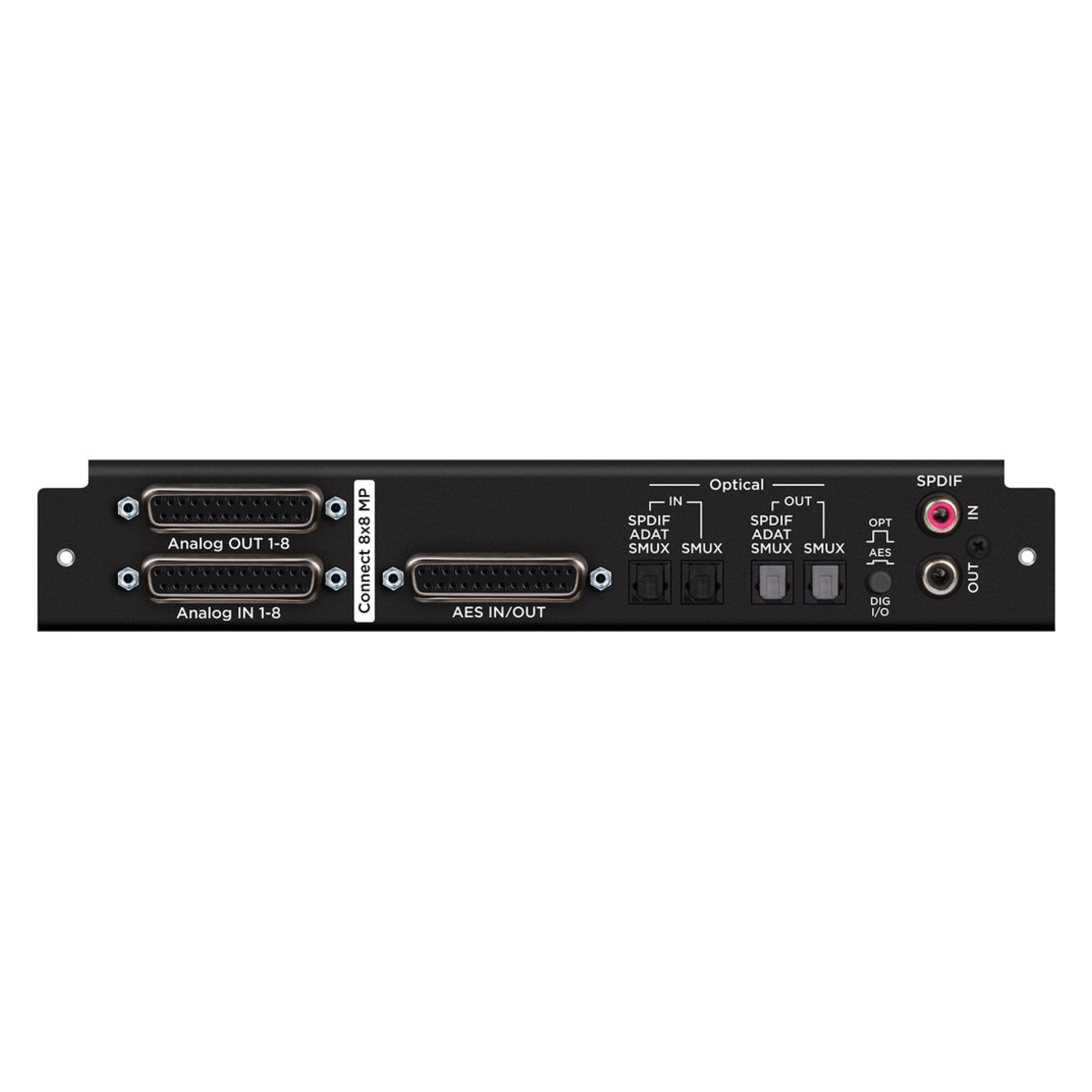

The Apogee Electronics Connect 8x8 MP is an expansion I/O module offering high-performance A/D and D/A conversion, eight high-gain mic preamps, and eight channels of analog and digital I/O for producers and engineers using Symphony I/O Mk II Thunderbolt or Dante chassis in personal, project, and commercial studios.
By utilizing Apogee's Advanced Stepped Gain Architecture, the Connect 8x8 MP delivers up to 72 dB of gain in 1 dB increments while maintaining ultralow noise, virtually nonexistent distortion, and noiseless gain adjustment.
Its analog I/O includes eight channels of balanced inputs and outputs on DB25 connectors. Additional DB25, TOSLINK optical, and RCA coaxial jacks provide connectivity for AES/EBU, ADAT, and S/PDIF digital inputs and outputs. The Connect 8x8 MP is easily installed in a Symphony I/O Mk II Thunderbolt or Dante chassis.
Key Features
• High-Performance A/D-D/A Conversion
• Ultralow Noise and Distortion
• Advanced Stepped Gain Architecture
• 8 x Mic Preamps with 72 dB of Gain
• 8 x Analog I/O via DB25 Connector
• AES, ADAT, and S/PDIF Digital I/O
• Up to 192 kHz Sample Rate
• For Mk II Thunderbolt/Dante Chassis
General
Compatible Interfaces: Apogee Symphony MkII
Connectivity
Analog Audio I/O:
• 1x DB-25 25-Pin Balanced Line/8-Channel Input
• 1x DB-25 25-Pin Line/8-Channel Output
Digital Audio I/O:
• 1x TOSLINK Optical ADAT / S/PDIF Input (S/MUX Support)
• 1x RCA Coaxial S/PDIF Input
• 1x TOSLINK Optical ADAT / S/PDIF Output (S/MUX Support)
• 1x RCA Coaxial S/PDIF Output
• 1x DB-25 AES3 Input
• 1x DB-25 AES3 Output
Host Connection: No
USB (Non-Host): No
Sync I/O: No
Network I/O: No
MIDI I/O: No
Digital Audio
Sample Rates: 192 kHz
Bit Depths: 32-Bit
