Features:
• 8 voices per audio track
• 4 × selectable machines per audio track:
Single Player
Multi Player
Subtracks
MIDI (also selectable on the bus tracks)
• 8 × stereo audio tracks
• 4 × bus tracks
• 3 × send effect tracks
• 1 × mix track
• 1 × digital base-width filter per track/subtrack
• 2 × assignable LFOs per track
• 1 × assignable modulation envelope per voice
• 2 × assignable FX LFOs per audio track
• 2 × assignable LFOs per effect bus, send effect, and mix
• Modulation setup per track for pitch bend, mod wheel, breath control, aftertouch
• Step Edit
• Extensive routing options
• Diverse sound library (single samples, drum sets, multi-sampled instruments, and presets

MIDI track features:
• 16 note polyphony per step
• 16 × assignable CC controls
• 2 × assignable LFOs per track
Performance features:
• 2 × Trig modes
Tracks
Velocity
• Keyboard mode with 36 different scales
• Song mode
• Chord mode

Sequencer features
• Up to 256 steps per pattern and track
• Arpeggiator per audio & MIDI track
• Polyphonic sequencing
• Individual pattern length per track
• Individual time scale multiplier per track
• Parameter locks
• Trig conditions & trig chance
• Retrig (audio & MIDI tracks only)
• Micro timing
• Sequencer lanes

Effects
• Comb +/- Filter
• Filterbank
• Low-pass Filter
• Multimode Filter
• Infinite Flanger
• Panoramic Chorus
• Phase 98
• Warble
• Chrono Pitch
• Frequency Warper
• Compressor
• Degrader
• Dirtshaper
• Daisy Delay
• Saturator Delay
• Rumsklang Reverb
• Supervoid Reverb

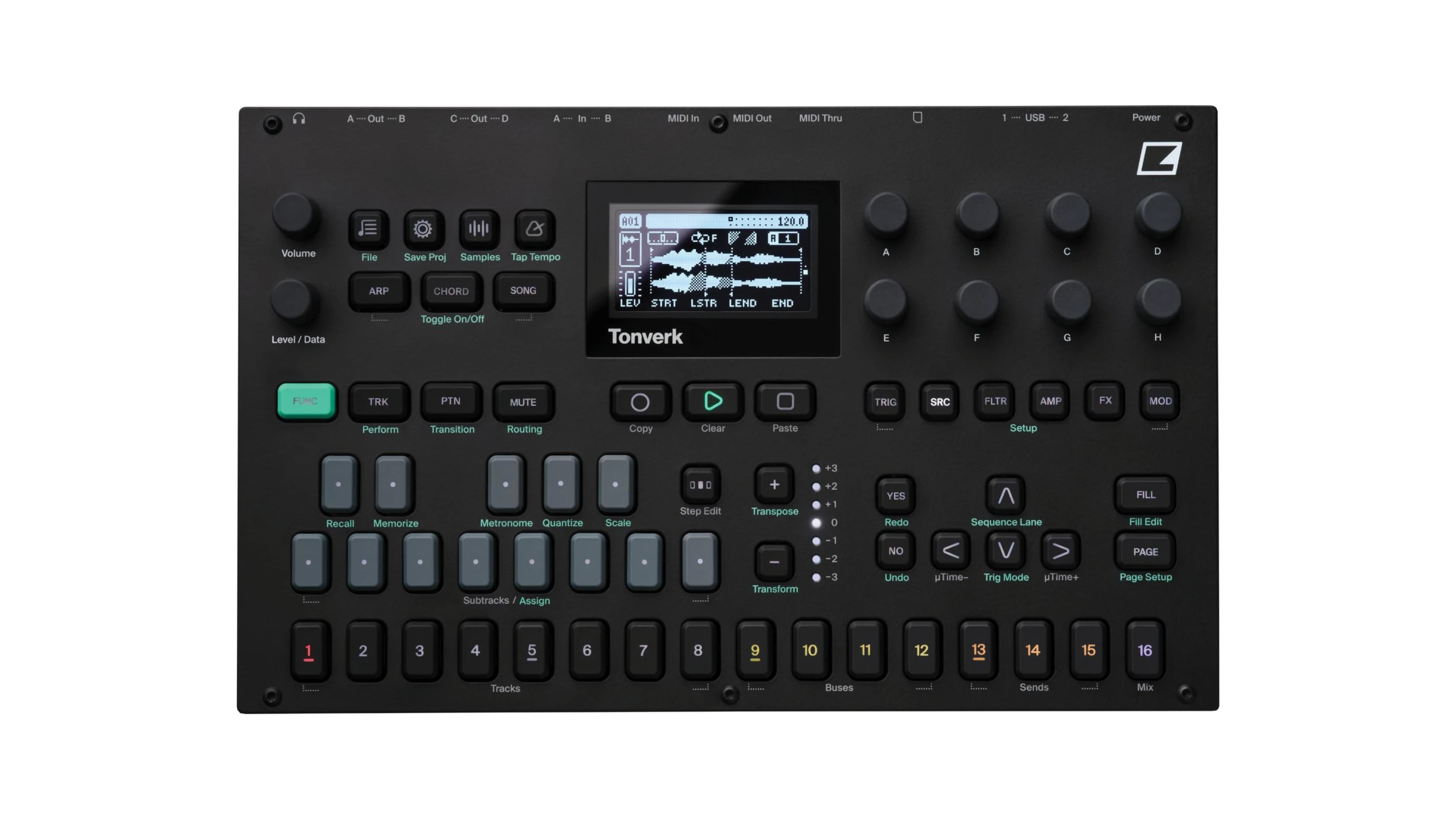

Hardware
• 128 × 64 pixel OLED screen
• 4 × ¼” impedance balanced audio out jacks
• 2 × ¼” balanced audio in jacks
• 1 × ¼” stereo headphone jack
• 48 kHz, 24-bit D/A and A/D converters
• 2 × USB-C port
• MIDI In/Out/Thru
• SD Card slot

Physical specifications
• Sturdy steel casing
• Dimensions: W 286 × D 176 × H 63 mm (11.3″ × 6.9″ × 2.5″) (including knobs and feet)
• Weight: approximately 1.85 kg (4.08 lbs)
• 100 × 100 mm VESA mounting holes. Use M4 screws with a max length of 7 mm

Miscellaneous
• Class Compliant USB Audio
• External Input mixer with routable outputs
• 3 year Elektron warranty

Included in the box
• 64 GB SD card
• Power Supply PSU-5
• Elektron USB-C cable
• Exclusive artwork
