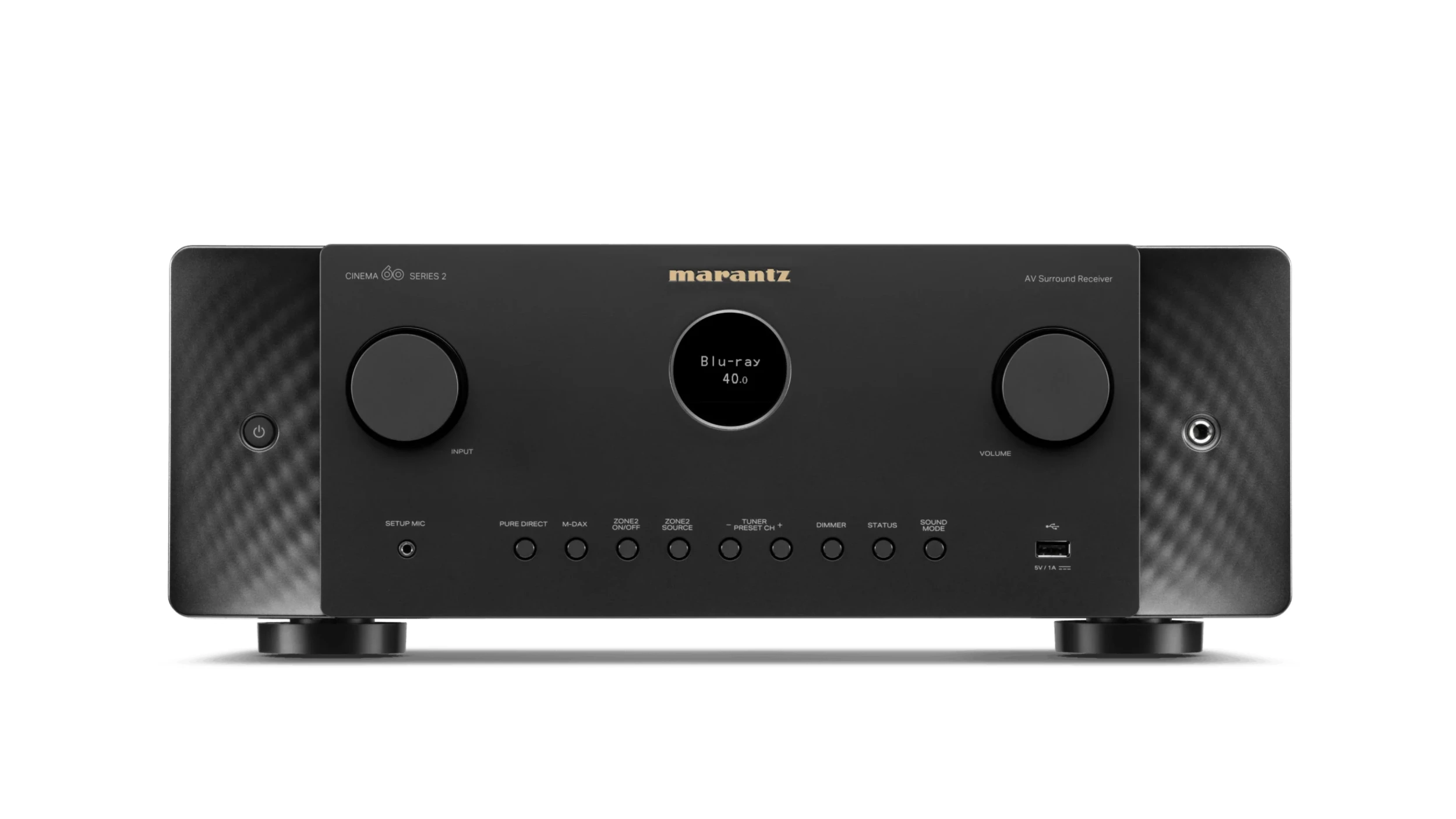

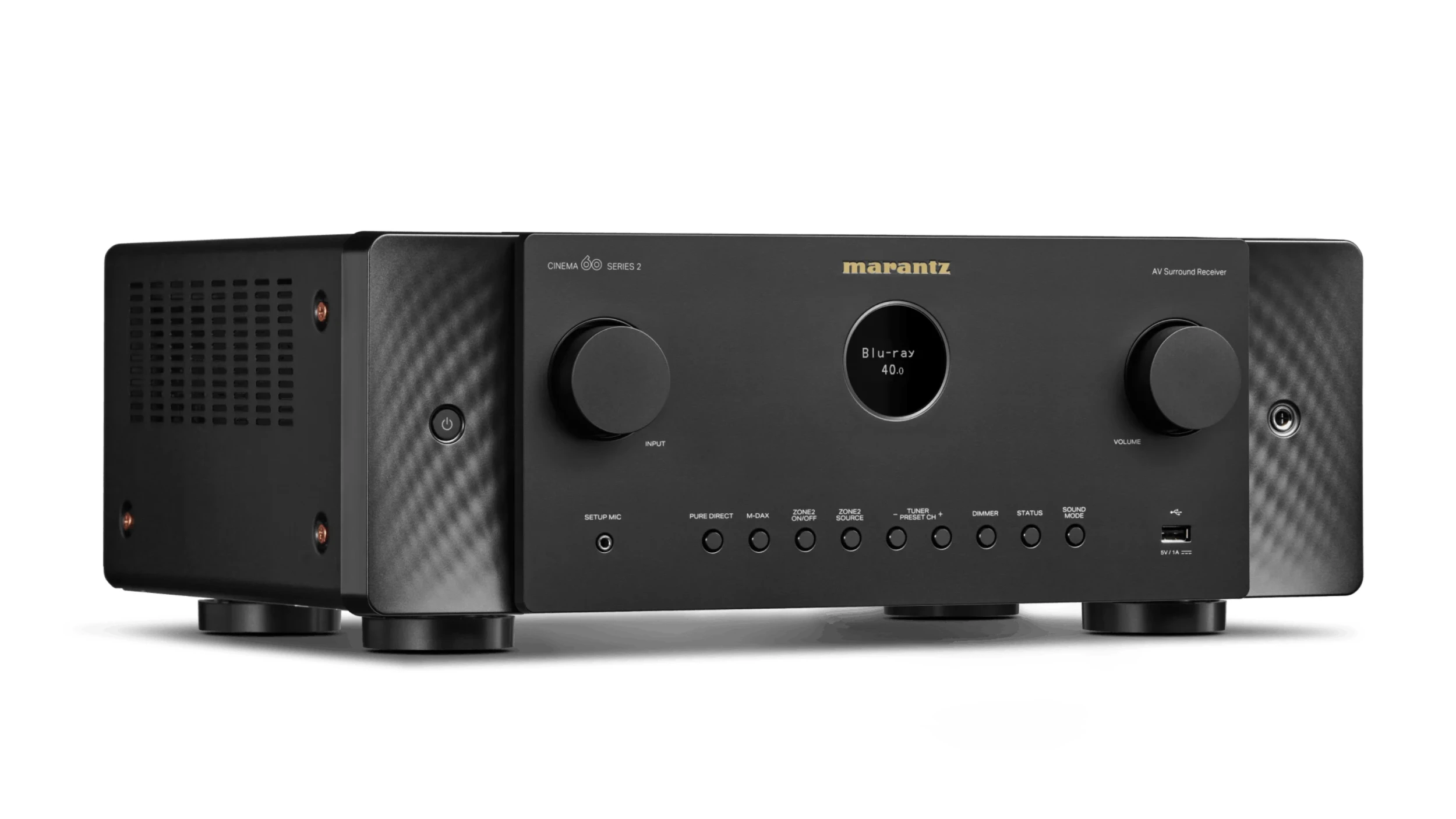

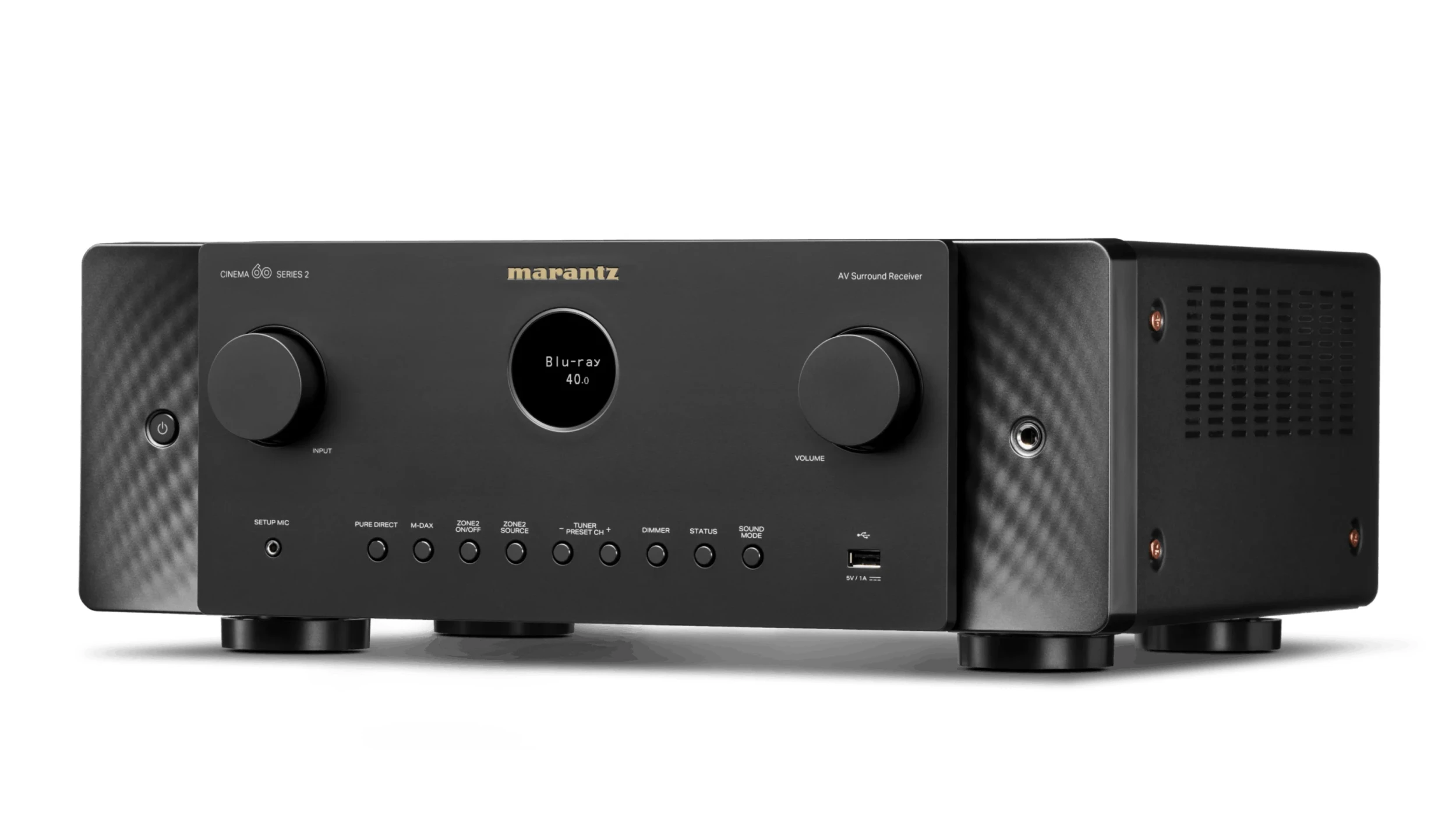

Marantz CINEMA60 DAB Black S2
7.2-Channel AV Receiver with Dolby Atmos and Powered by HEOS™
From explosive sound effects and crystal-clear dialogue to captivating scores, CINEMA 60DAB SERIES 2 elevates everything you love about movies, all in a timeless, feature-rich design. Built on decades of engineering expertise and a passion for exceptional sound, this powerful 7-channel AV receiver delivers breathtaking home theater experiences. Immersive surround sound is powered by an upgraded 32-bit 8-channel DAC and Dolby Atmos integration, while advanced connectivity includes 7 HDMI ports, eARC and support for two screens. CINEMA 60DAB SERIES 2 is engineered to bring your movies, music and games to life with the impact and clarity of signature Marantz sound.
Multichannel Surround
DTS-HD / DTS:X / DTS:X Pro: Yes / Yes / No
DTS Neo:6 / DTS Neural:X: No / Yes
DTS Virtual:X: Yes
IMAX Enhanced: No
Dolby TrueHD / Atmos / Atmos Height Virtualization / Atmos Music: Yes / Yes / Yes / Yes
Dolby ProLogic Il / Dolby Surround: No / Yes
Multichannel Stereo: Yes
Max Number of Processing (Preamp) Channels: 7.1
Sound Enhancements
Discrete Power Amplifier: Yes
Copper Plated Chassis: No
Power Transformer: Toroidal / EI: EI
Pure Direct: Yes
Current Feedback Topology: Yes
Hyper Dynamic Amplifier Modules (HDAM): Yes (SA2)
Audyssey: MultEQ XT
Audyssey Dynamic EQ / Dynamic Volume: Yes / Yes
Subwoofer Mode: Standard / Directional: Yes / No
Dirac Live upgradability: Yes
Compressed Audio Enhancer: MDAX2: Yes
Network
HEOS Multi-Room and Streaming: Yes
Bluetooth Re-transmit for Bluetooth headphones: Yes
Volume control for Bluetooth transmitter: Yes
Network Audio Sharing: Yes
Lossy formats: MP3 / WMA / AAC: Yes / Yes / Yes
Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24: Yes / Yes / Yes
DSD Audio Streaming: Yes (2.8/5.6MHz)
FLAC HD 192/24 / WAV 192/24 / ALAC 192/24: Yes / Yes / Yes
Gapless Playback: Yes (FLAC, WAV, ALAC, DSD)
AirPlay Audio Streaming: Yes (AirPlay2)
Internet Radio: Yes (TuneIn)
Spotify* Connect: Yes
Tidal* Connect: Yes
Qobuz* Connect: Yes
Pandora / SiriusXM: Yes / Yes
Other Streaming Services*: Amazon Music / Amazon Music HD/ TIDAL / Deezer / iHeart Radio / SoundCloud / Mood Mix
Roon Ready: Yes
Compatible with remote app for smartphones: Marantz AVR Remote / HEOS
Compatible with remote app for tablets: Android / iOS / Amazon Kindle
Wi-Fi / Bluetooth / Ethernet Ports: Yes / Yes / Yes
HDMI
HDMI Inputs: Back / Front: 6 / 0
HDCP2.3 support: Yes
HDMI Outputs: Main / Zone: 2 / 0
HDMI to HDMI scaling: 1080P/4K to 8K
HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB: Yes / Yes
8K/60Hz AB / 4K/120Hz AB Pass-through In/Out: 3 / 2 (up to 40Gbps)
Enhanced ARC / ARC: Yes / Yes
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR: Yes / Yes / Yes / Yes / Yes
ALLM (Auto Low Latency Mode) Pass-through for gaming: Yes
Variable Refresh Rate / Quick Flame Transport / Quick Media Switching: Yes / Yes / No
AMD FreeSync compatible: Yes (HDMI 4-6)
3D Signal Pass-Through / HDMI Pass-Through in Standby Mode: Yes / Yes
Picture Adjust / Noise Reduction: No / No
CEC / DSD Audio Capability / Auto LipSync: Yes / No / Yes
Multiroom/CI
HEOS Multi-Room Integrated: Yes
HEOS Link Compatibility: IR/ IP: Yes / Yes
Multi-Room zones: 2
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog: No / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / Preout: Yes / Yes
Zone HDMI Output from HDMI Source: No
IP Control / RS232 Control / Web Control / App Control: Yes / No / Yes / Yes
IR Flasher In / Marantz Remote Bus: Yes / Yes
DC Trigger Output: 1
HDMI Diagnostics: Yes
Others
Auto Speaker Setup by Microphone: Audyssey MultEQ XT Dirac Live (upgrade)
Front Display: Porthole OLED
Graphic User Interface - GUI: Modern HD GUI
ISF Certification: No
GUI Languages: 9
Setup Assistant / Smart Select: Yes / Yes
Firmware Update by Network / USB: Yes / Yes
Variable Cross Over / Optimized Bass Redirection / Bass Sync: Yes / Yes / No
ECO Mode / Auto Power Off / Sleep Timer: Yes / Yes / Yes

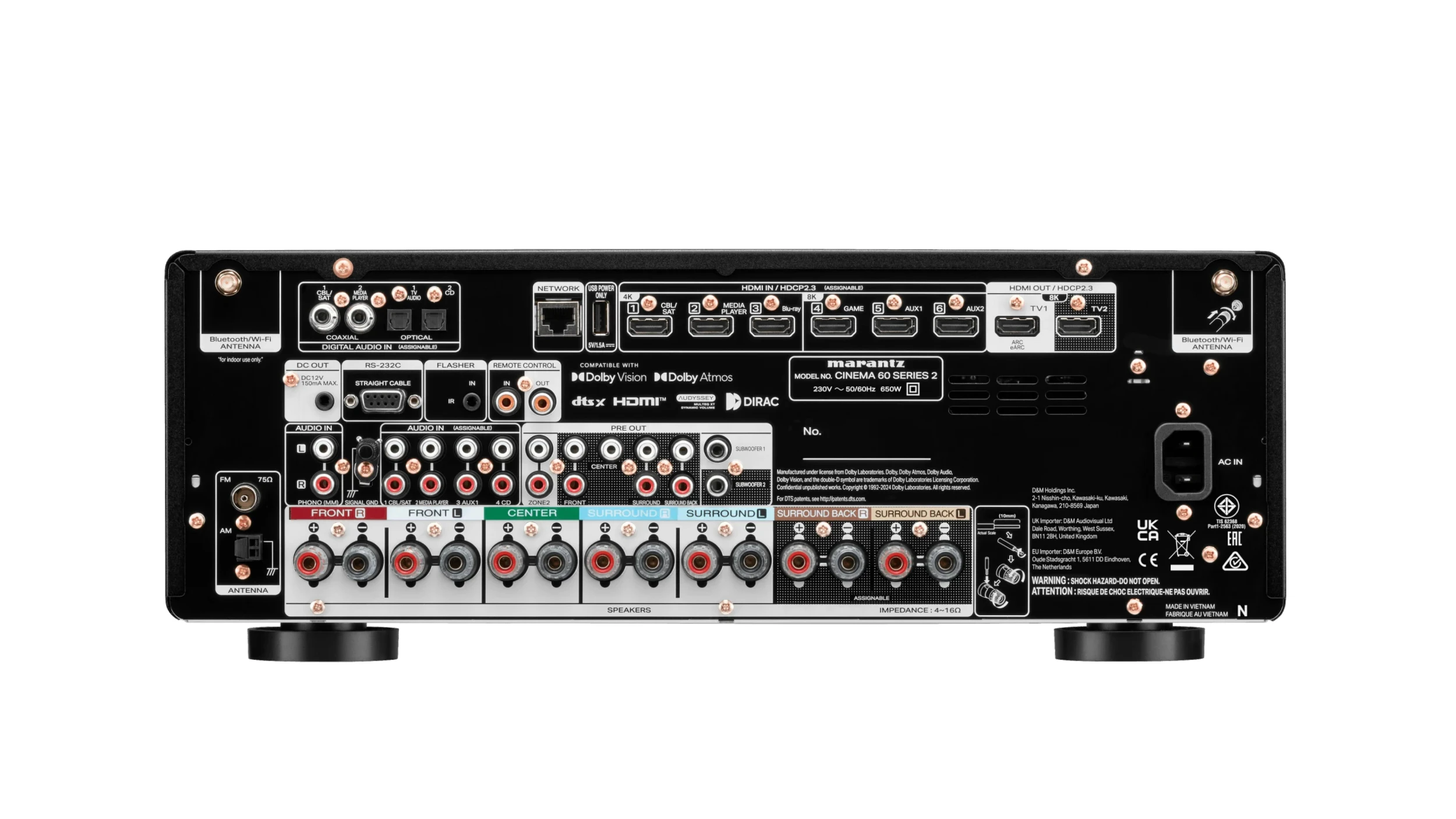

Inputs Outputs
HDMI In / Out: 6 / 2
Multi-Room Video Out: Video / HDMI: No / No
Analog In / Out: 4 / 0
Phono (MM) In: Yes
Digital In: Optical / Coaxial: 2 / 2
Multi-Room Out: analog / digital: 1 / 0
Multichannel Pre-Out: Yes (7.2)
Subwoofer Out: 2
Speaker Terminal: Gold Plated Screw / Regular Screw: No / Yes
Number of Speaker Terminals: 7
Speaker A / B: assignable
Bi-Amp Drive: assignable
Multi-Room Speaker Terminal: assignable
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB: No / No / No / No / Yes
USB Audio / Made for iPod / Made for iPhone: Yes / No / No
USB Power supply on rear panel: Yes
AM/FM Tuner: Yes
Specifications
Number of Power Amps: 7
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive): 100W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive): 140W
General
Metal Front Panel: No
System Remote Control: RC054SR
Power Consumption in W: 650
Power Consumption No-Sound (ECO on/off) in W: 45 W / 75 W
Standby Consumption in W: 0.2
CEC Standby Consumption in W: 0.5
Network Standby Consumption in W: Less than 2.0
Maximum Dimensions
Antenna: Horizontal: (W x D x H) in inches: 17.4 × 13.9 × 6.5
Antenna: Vertical: (W x D x H) in inches: 17.4 × 13.9 × 9.3
W/o Antenna: (W x D x H) in inches: 17.4 × 13.5 × 6.5
Weight in lbs.: 24
What's in the box: Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, cardboard microphone stand, 2 external detachable antennas, AC cord
