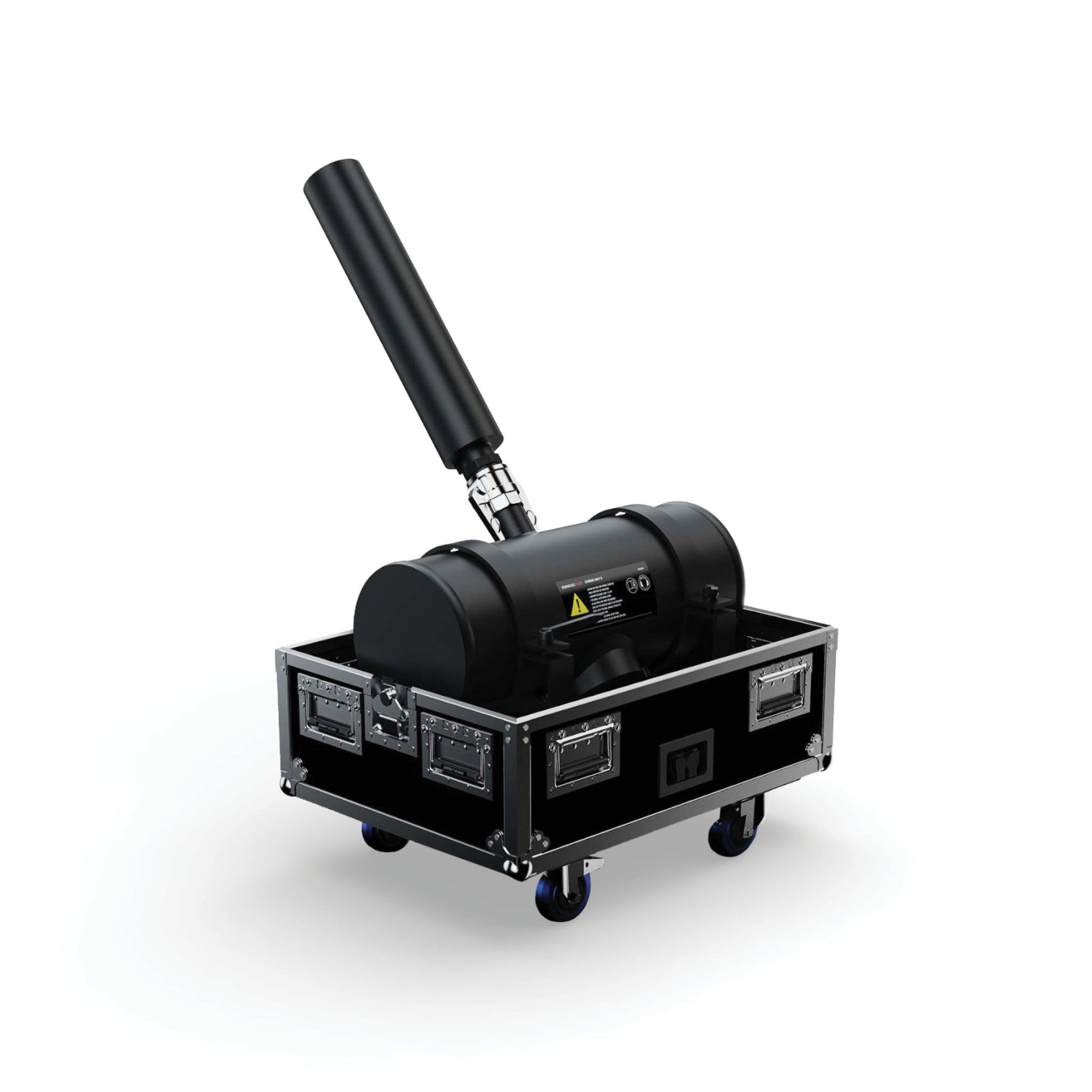

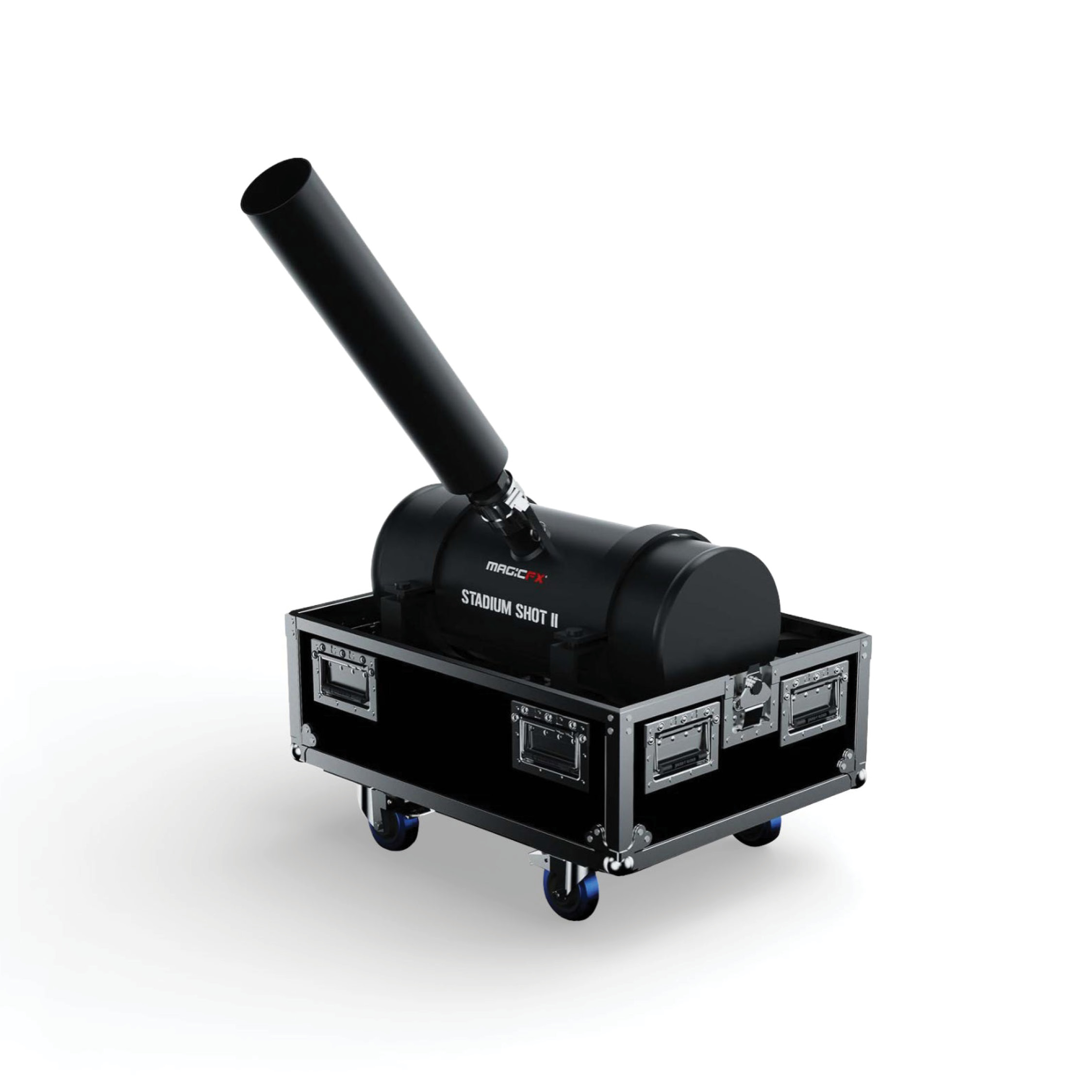

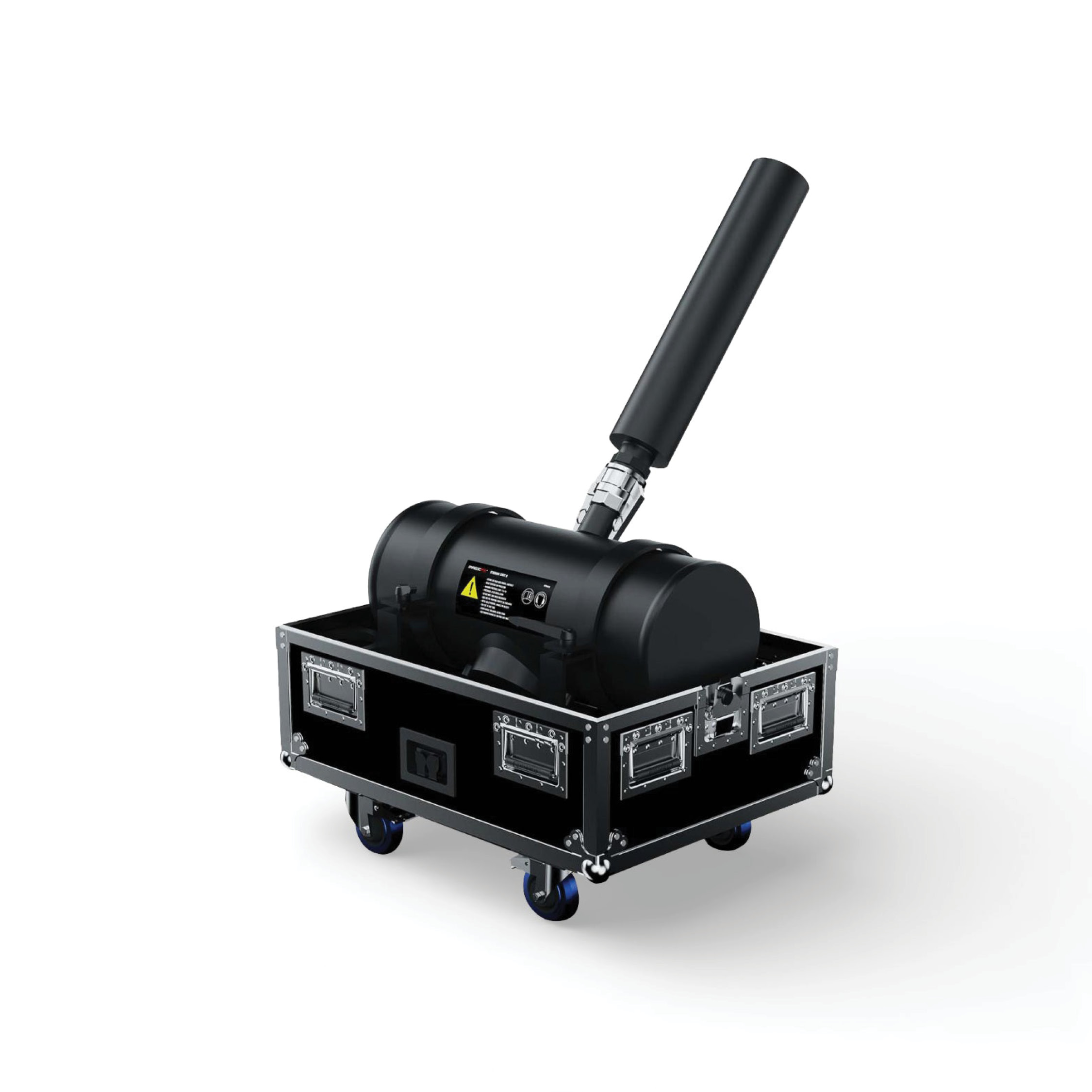

MagicFX StadiumShot II
The MagicFX StadiumShot II is a highly efficient confetti / streamer FX with a 35L tankm with an 8 bar compression system. The system can reach max. distances until 20m, loaded with confetti, and 35-40m loaded with streamers. The system can take 2-3 kg of confetti, 25 bags of streamers a 10mx1.5cm, 12 bags of streamers a 10mx5cm or 8 bags of Stadium Streamers a 20mx5cm.
consumption
consumable type: confetti and streamers
max effect duration: single shot
output range: confetti 20 m / streamers 40 m
enviromental
humidity: 20% to 90%
indoor or outdoor: both
maximum temperature: 70 °C
minimum temperature: -10 °C
noise level: 70 dB (at 5 m)
mechanical
height: 86 cm
length: 80 cm
mounting surface: floor
weight: 108 kg
width: 60 cm
power and control
control: power On/off / Pyro
frequency: 50 / 60 Hz
power: 20 W
voltage input: 100 – 250 VAC 12 – 24 VDC
safety
danger zone: When pressurized, create a danger zone around the output pipe of the Stadiumshot II in the shot direction of: 1 m at the base of the output pipe, ranging 7 m and spreading out 3 m when confetti is used. 1 m at the base of the output pipe, ranging 14 m and spreading out 6 m when streamers are used.
output range: 20 m confetti / 40 m streamers
safety zone: 2 m around the Stadiumshot II
other
quantity per carton: 1
