Features
Components:
• 3” woofer with woven fiberglass cone
• 1/2” PEI diaphragm tweeter with fluid cooling
Contemporary, high-design appearance
Built-in InvisiBall® mounting hardware*, plus available U-bracket
Weather resistant enclosure and transducers
Wide 100° x 100° coverage
50 Watt power handling (100 Watt program) in direct 8Ω setting, plus built-in 15 Watt 70V/100V multi-tap transformer.
High fidelity sound character with broad frequency response of 70 Hz – 20 kHz.

Frequency Range (-10dB): 70 Hz to 20 kHz
Frequency Response (±3 dB): 95 Hz - 19 kHz
Power Rating: 100W Continuous Program (2 hrs)50 W (200W peak), Continuous Pink Noise (2 hrs) 40 W (160W peak) Continuous Pink Noise (100 hrs)
Maximum Input Voltage: 17.2 V RMS (2 hrs), 34.4 V peak
Maximum SPL (1m): 103 dB ave. Continuous Pink Noise (109 dB peak)
Sensitivity: 86 dB, 1W/1m (ave. 100 Hz – 10 kHz)
Coverage Angle: 100°H x 100°V
Directivity Factor (Q): 5.8 (averaged 1kHz – 16kHz)
Directivity Index (DI): 7.2 dB (averaged 1kHz – 16kHz)
Impedance: 8 ohms (THRU setting)
Crossover Type: 2nd order low-pass, 2nd order high-pass
Transformer Taps: 70V: 15W, 7.5W, 3.7W, 1.8W100V: 15W, 7.5W, 3.7W Insertion Loss <0.43 dB at any tap settingThru Setting: 8Ω nominal
Recommended ProtectiveHigh-Pass: 70 Hz high-pass (24 dB/oct) (for 8Ω operation and for all 70V/100V taps settings).
Drivers:
• LF: 76 mm (3.0 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp Kapton™ voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
• HF: 13 mm (0.5 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
Enclosure: High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
Grille: Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-23WMG-1 (&-WH) available with WeatherMax™ multi-layer foam and tight-weave mesh vapor barrier backing.
Mounting Hardware: InvisiBall™ wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-23UB-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel.
Outdoor Capability: IP-44 per IEC529 (IP-55 when installed with the optional MTC-23WMG-1 WeatherMax™ grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-23WMG-1 WeatherMax™ grille for breaking up driving rain and for especially difficult environments.

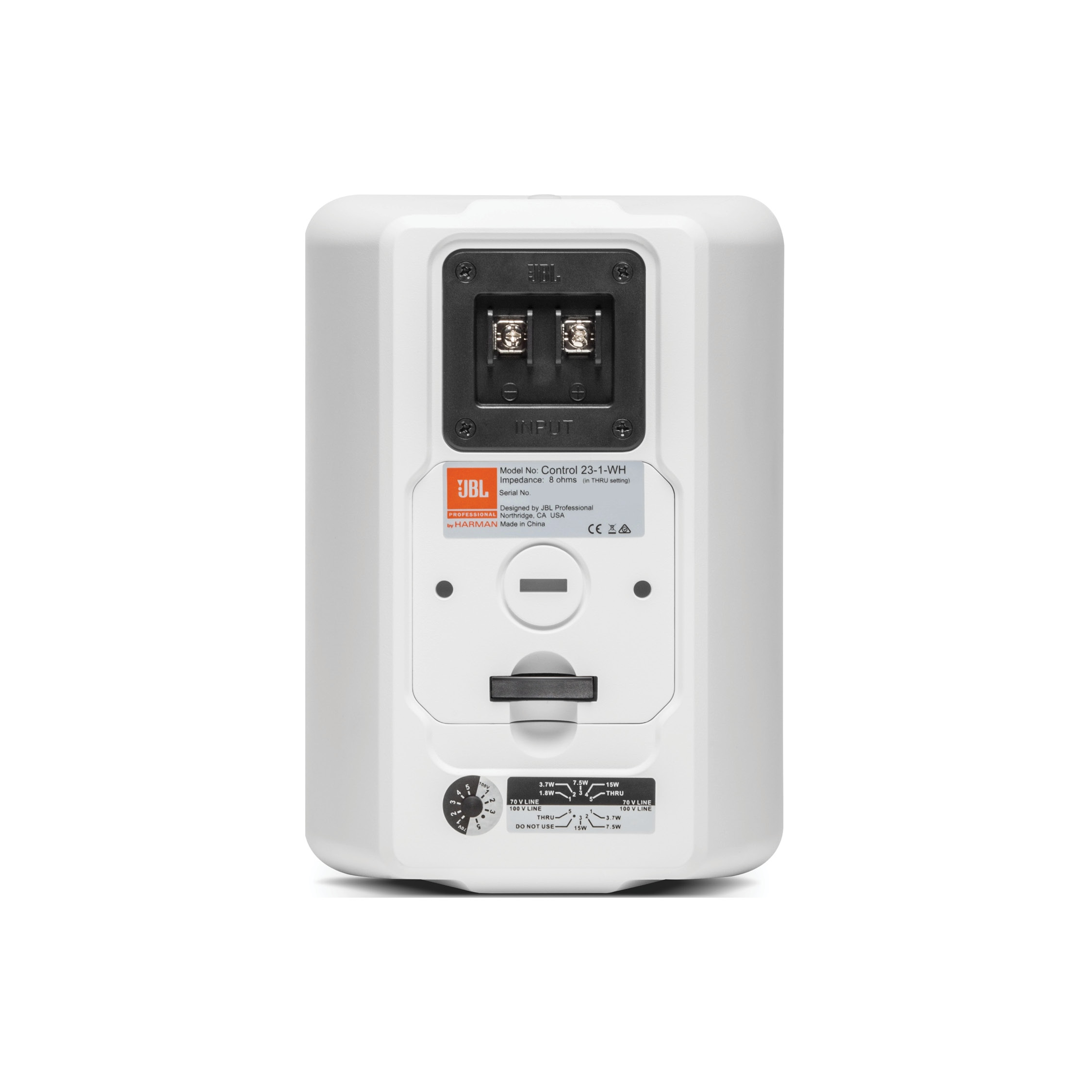

Input Connectors: Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection.
Agency Rating: ROHS-compliant; Transformer UL Recognized per UL1876
Colors: Black (RAL9004) or white (-WH, RAL9016)
Dimensions (H x W x D): 200 x 141 x 111 mm (7.9 x 5.6 x 4.4 in); 141 mm (5.6 in) deep total when mounted on InvisiBall wall-mount bracket.
Net Weight: 1.8 kg (4.0 lbs)
Shipping Weight: 3.85kg (8.5 lbs) for the pair-pack (for 2 speakers) 12.0kg (26.5lbs) for the master-pack (for 6 speakers)

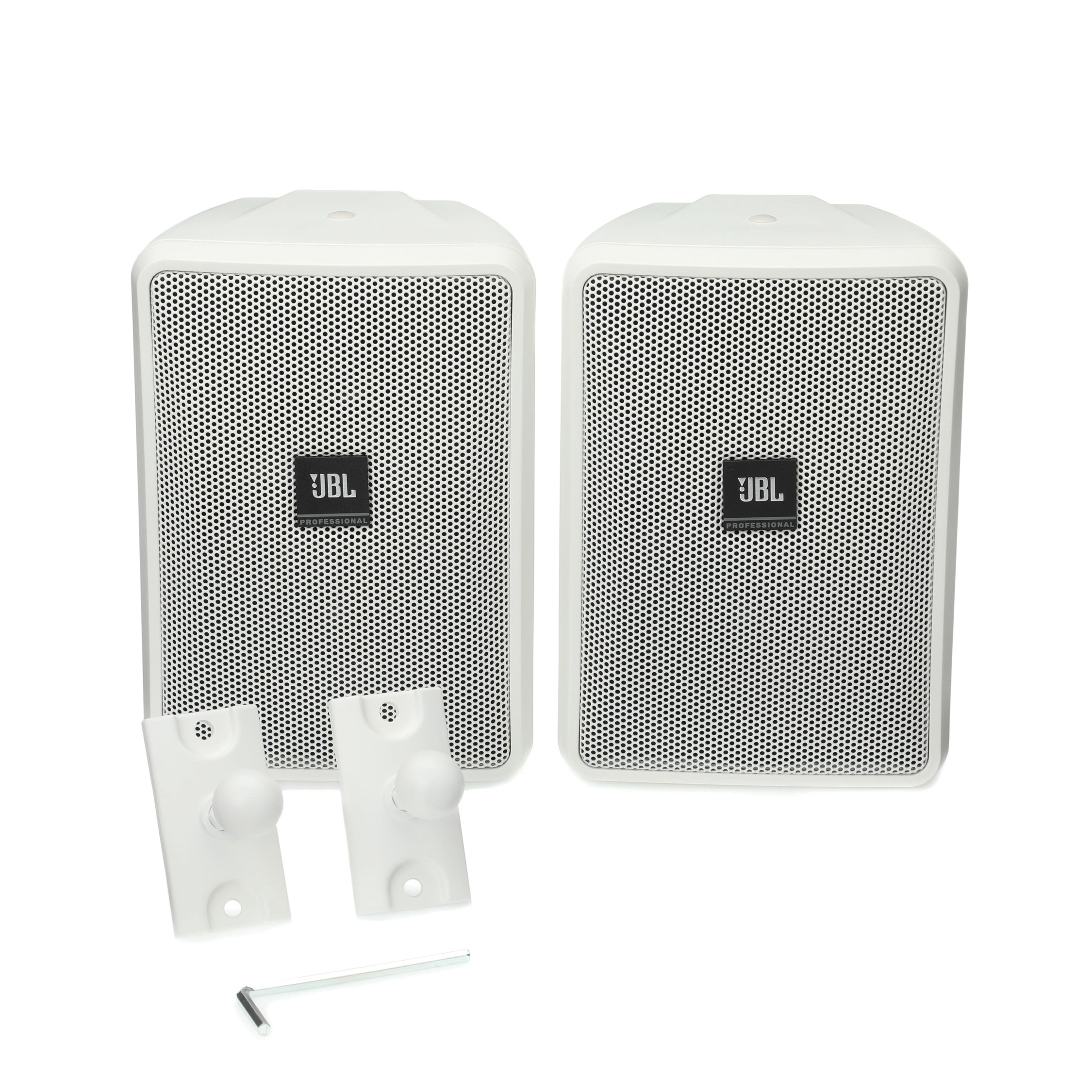

Included Accessories: InvisiBall™ wall-mounting system), 4 mm x 80 mm hex key
Optional Accessories: MTC-23UB-1 – Yolk-type U-bracket (&-WH) MTC-23WMG-1 – WeatherMax grille with backing (&-WH) MTC-23CM – Ceiling-Mount InvisiBall adapter (&-WH)
