JBL Control 29 AV Black
Premium Indoor / Outdoor Monitor Speaker

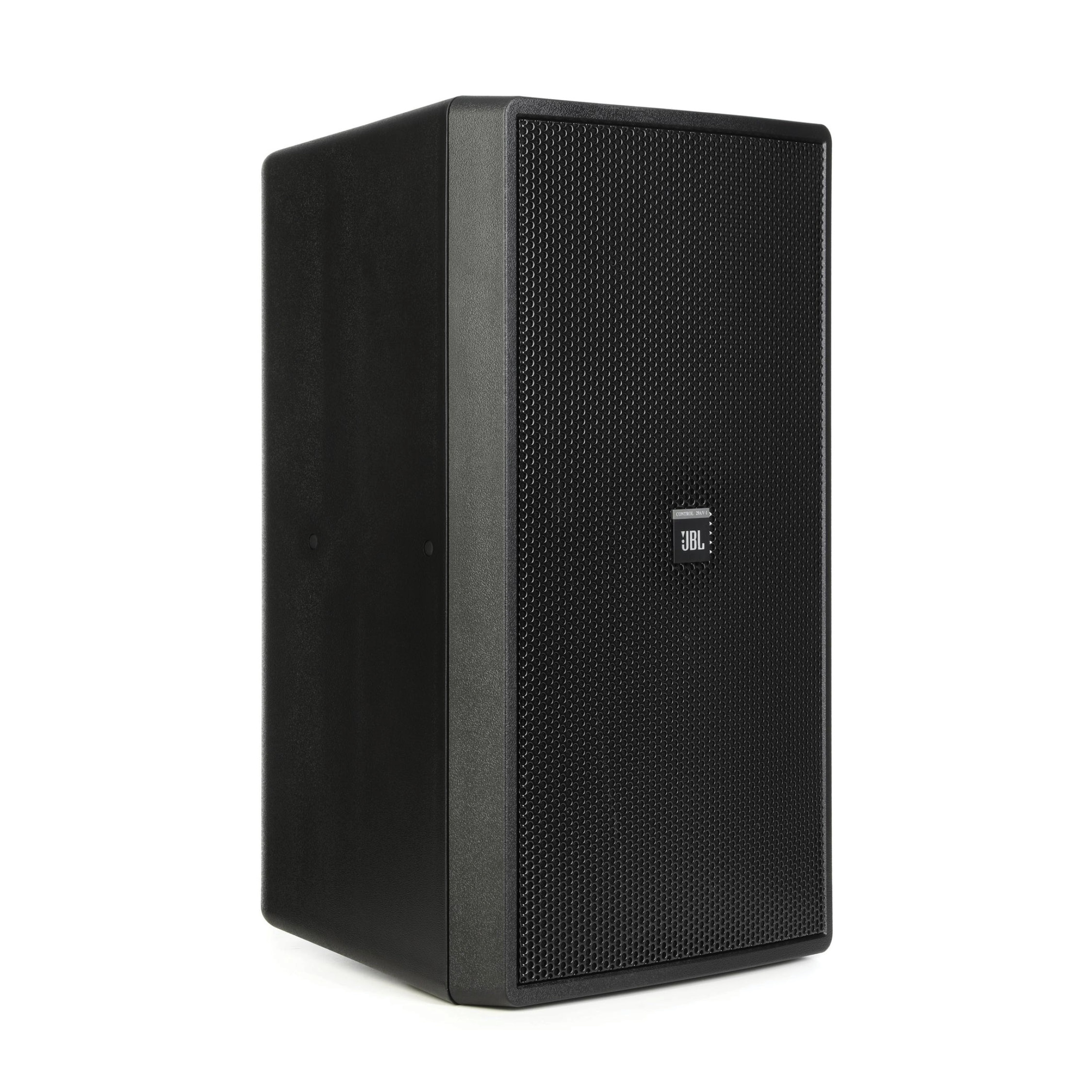

The black JBL Control 29AV-1 is a passive 8" shielded loudspeaker with a low-saturation transformer designed for voice amplification and foreground music reproduction in a variety of indoor and outdoor venues. The 110W transformer allows the Control 29AV-1 to be driven by 70V, 100V, or 8-Ohm power amplifiers (available separately). Each Control 29AV-1 is equipped with a durable 8" Kevlar-cone woofer and a 1" titanium-diaphragm compression driver, yielding a frequency response of 43 Hz to 15 kHz, and a continuous program power capacity of 300W. With a rotatable horn, the loudspeaker supports positioning for horizontal or vertical orientation.
Features
• Extended bandwidth, extremely smooth frequency response.
• 110° x 85° HF coverage, rotatable horn.
• 110 W transformer for 70 V or 100 V lines, with 8 ohm thru.
• SonicGuard™ overload protection.
• 200 mm (8 in) Kevlar cone woofer,
• 25 mm (1 in) titanium diaphragm compression driver.
• Includes InvisiBall™ mounting hardware, plus ten 6 mm attachment points for suspension and
• optional U-bracket.
• Sealed input panel cover and screwdown input terminals.
Frequency Range: 37 Hz –18 kHz (-10 dB)
Power Capacity: 300 W Continuous Program Power; 150 W Continuous Pink Noise
Transformer Taps: 70 V: 110 W, 55 W, 28 W & 14 W 100 V: 110 W, 55 W, & 28 W, Thru Position: 8 ohms nominal
Frequency Response: 45 Hz – 18 kHz ( ± 3 dB)
Maximum SPL (1m): Short-Term: 120 dB; Long-Term: 114 dB
Nominal Sensitivity: 90 dB (2.83V / 1m)
Coverage Angle: 110°H x 85°V, Rotatable
Directivity Factor (Q): 7.2 dB, averaged 500 Hz to 16 kHz
Directivity Index (DI): 8.6 dB, averaged 500 Hz to 16 kHz
Impedance: 8 ohms
Minimum Impedance: 6.3 ohms @ 230 Hz
Crossover Network: 3rd order High Pass, 2nd order Low Pass with impedance compensation, 2.5 kHz crossover frequency
Drivers:
• LF: 200 (8 in) kevlar cone with pure butyl rubber surround, 50 mm (2 in) voicecoil on fiberglass former
• HF: 25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround
Enclosure: High impact polystyrene
Grille: Thermoset composite coated steel, WeatherMax multi-layer foam
Overload Protection: Full-range power limiting to protect network and transducers. Serviceable internal fuse to protect during exceptional overload conditions.
Outdoor Capability: IEC 529 IP-X4 rating. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray.

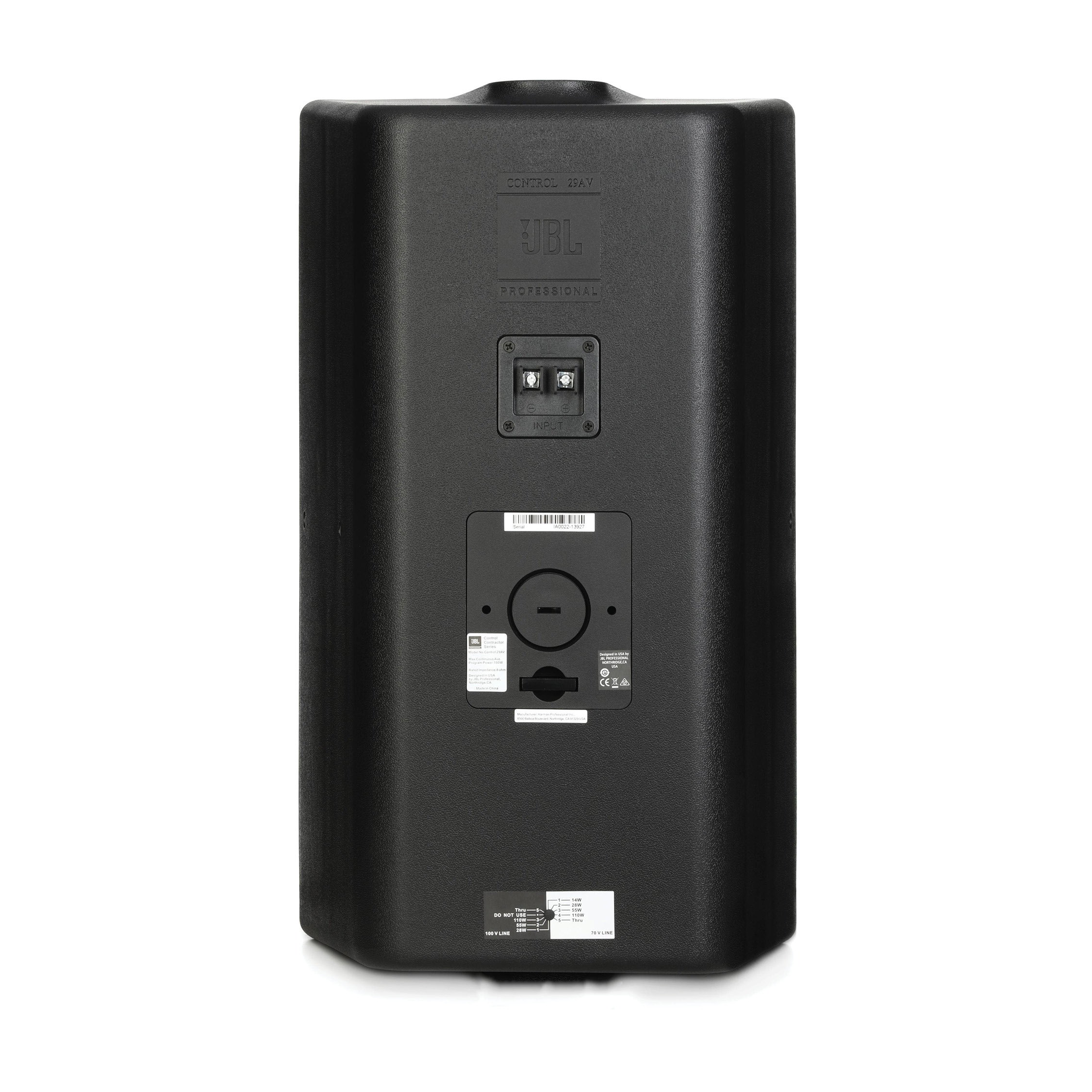

Input Connectors: Screw-down terminal strip, zinc plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5 mm2).
Safety Agency: Transformer is listed per UL1876
Colors: Black or white (-WH)
Dimensions (H x W x D): 520 x 306 x 277 mm (20.5 x 12.0 x 10.9 in.)
Net Weight (each): 12.2 kg (26.8 lb.)
Shipping Weight (ea): 14.0 kg (30.8 lb.)

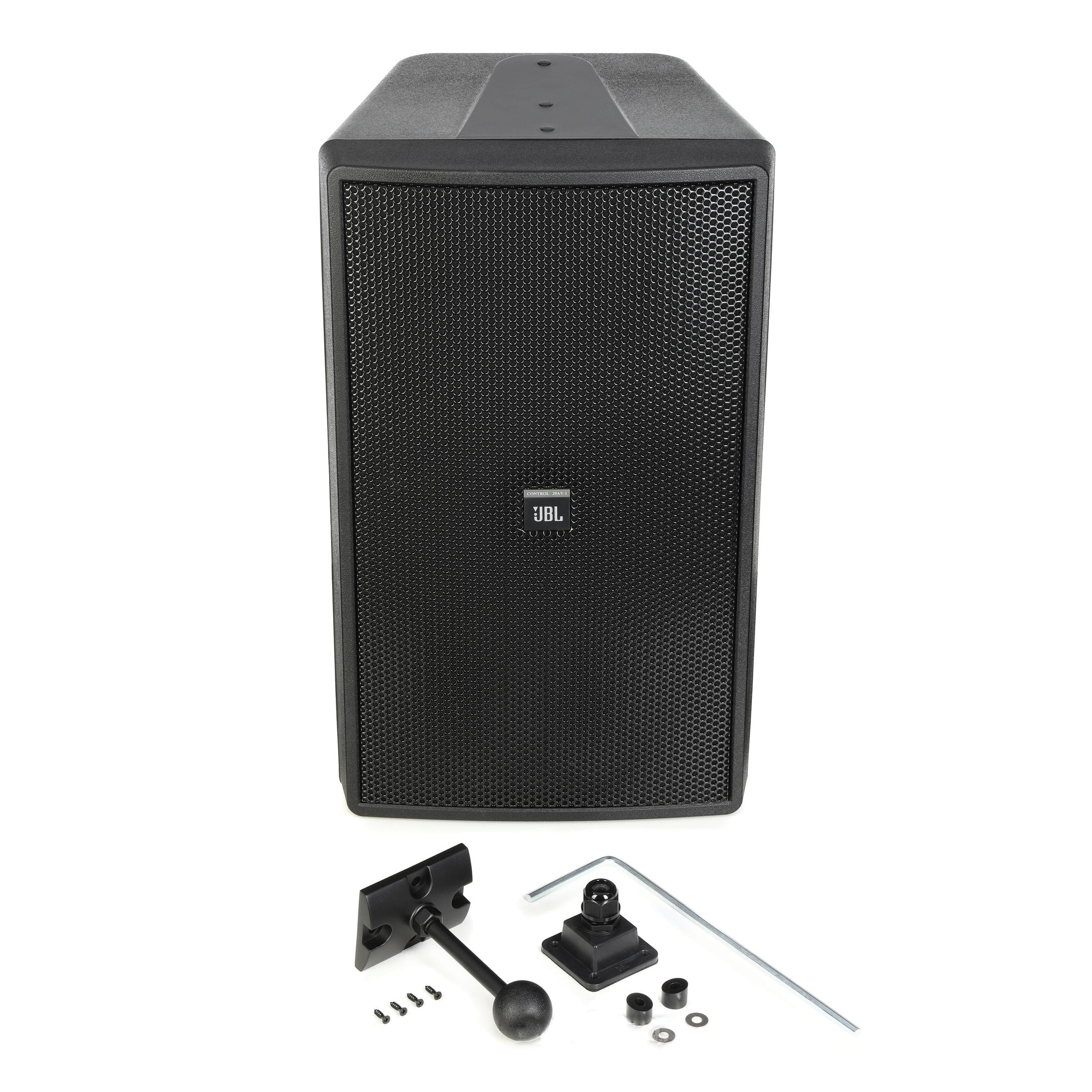

Included Accessories: 1 pc MTC-PC2 input panel cover, InvisiBall mounting base, 6 mm x 260 mm InvisiBall Hex wrench.
Optional Accessories: MTC-29CM to install speaker down from the ceiling MTC-29UB U-bracket
Mounting Hardware: InvisiBall™ aimable wall-mounting system included. Optional U-bracket.
