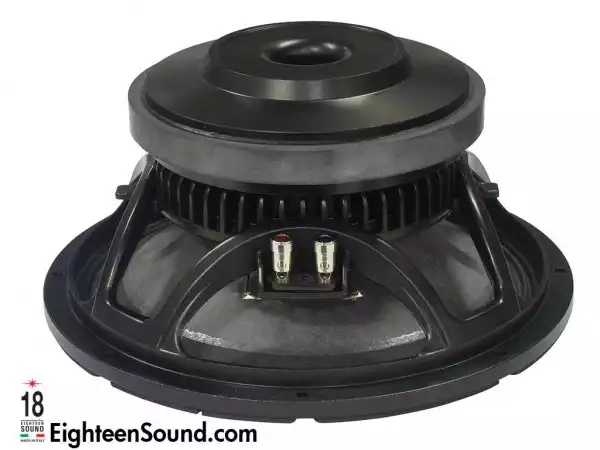

Eighteensound 12W750 - Zvučnik

Šifra: 9261
Na stanju
Regularna cena:
22.440,00 rsd
13.900,00 rsd (Bez PDV-a)
Cena sa popustom * :
Cena za kupovinu na rate:
Cena sa popustom * :
16.680,00 rsd

*Cena sa popustom može da se ostvari ukoliko se plaća gotovinski, virmanom (preko računa) ili odmah debitnom i kreditnom karticom.

Iznos rate:
Ušteda : 5.760,00 rsd
Prikazana cena je za komad.

Garantujemo najnižu cenu!


Ukoliko želite da platite na rate kreditnom karticom, molimo Vas da izaberete broj rata.

Važi za kreditne kartice logo_banka

Broj rata:

Dostupno u prodavnici:
  • Futoški put 1, Novi Sad
  • Cara Dušana 85, Niš
  • Svetogorska 9, Beograd
Prijavi povoljniju cenu Obavesti me ako cena padne Postavi pitanje

The 12W750 meets the specific market requirement for a loudspeaker which combines the excellent linearity, good efficiency and high power handling of the 15W750 model but in a 12 inch (300mm) chassis for use in more compact systems. It is primarily intended for application in compact reflex and band-pass enclosures but can also be used for horn loaded configurations.

The curvilinear paper cone has been made from a special high strength woodpulp designed to achieve the best possible linearity within its intended frequency range and to control bell-mode resonances around the cone circumference. The cone is carried by an unusually deep profile, triple roll suspension made from a polycotton material which is more resistant to aging and fatigue than traditional cotton-based ones. The 75 mm (3 inch) diameter aluminum voice coil employs the Interleaved Sandwich Voice coil (ISV) technology, in which a high strength fiberglas former carries windings on both the outer and inner surfaces to achieve a mass balanced coil. This results in an extremely linear motor assembly with a reduced tendency for eccentric behavior when driven hard. The magnetic structure has been optimized using FEACAD resource to maximize the flux density in the voice coil gap. Voice coil cooling has been achieved by incorporating airways between the chassis back plate and the top plate of the magnet, allowing heated air from the voice coil and gap to be channeled away and dissipated by the chassis basket. Due to the increasing use of audio systems at outdoor events, the ability to perform in adverse weather conditions or in high-humidity areas is an essential feature of the 12W750. This has been achieved using an exclusive cone and magnet plate treatment process which increases resistance to corrosion and renders the cone water repellent.

General Specifications

Nominal Diameter 300 mm (12 in)
Rated Impedance 8 Ohm
AES Power 600 W
Program Power 1200 W
Peak Power 2500 W
Sensitivity 97 dB
Frequency Range 50 ÷ 4600 Hz
Power Compression @-10dB 0,9 dB
Power Compression @-3dB 2,8 dB
Power Compression @Full Power 3,8 dB
Max Recomm. Frequency 1800 Hz
Recomm. Enclosure Volume 40 ÷ 90 lt. (1,41 ÷ 3,18 cuft)
Minimum Impedance 6,4 Ohm at 25°C
Max Peak To Peak Excursion 38 mm (1,50 in)
Voice Coil Diameter 75 mm (3 in)
Voice Coil Winding Material aluminum
Suspension Triple Roll, Polycotton
Cone Curvilinear, water repellent high damping pulp

Thiele Small Parameters

Fs 49 Hz
Re 5,2 Ohm
Sd 0,0531 (82,31
Qms 7,00
Qes 0,30
Qts 0,28
Vas 73 lt. (2,58 cuft)
Mms 57 gr. (0,13 lb)
BL 18 Tm
Linear Mathematical Xmax ± 8 mm (± 0,31 in)
Le (1kHz) 0,95 mH
Ref. Efficiency 1W@1m (half space) 96,6 dB

Mounting information

Overall diameter 310 mm (12,2 in)
N. of mounting holes and bolt 8
Mounting holes diameter 5,90 mm (0,23 in)
Bolt circle diameter 295 mm (11,61 in)
Front mount baffle cutout ø 280 mm (11,02 in)
Rear mount baffle cutout ø 280 mm (11,02 in)
Total depth 148 mm (5,83 in)
Flange and gasket thickness 13,5 mm (0,53 in)
Net weight 7,5 kg (16,5 lb)
Shipping weight 8,3 kg (18,26 lb)
CardBoard Packaging dimensions 332 x 332 x 184 mm (13,07 x 13,07 x 7,24 in)
