Features
Two-way full range speaker with 8-inch LF driver and a 1-inch compression driver.
Passive crossover board features separate cooling zones to ensure safe and continuous operations in the toughest environments.
Wide dispersion of 90 × 60 degrees, with rotatable horn for horizontal installation.
Designed for fixed and mobile applications, with a wide array of flying options.
Features top hats for quick set-up.

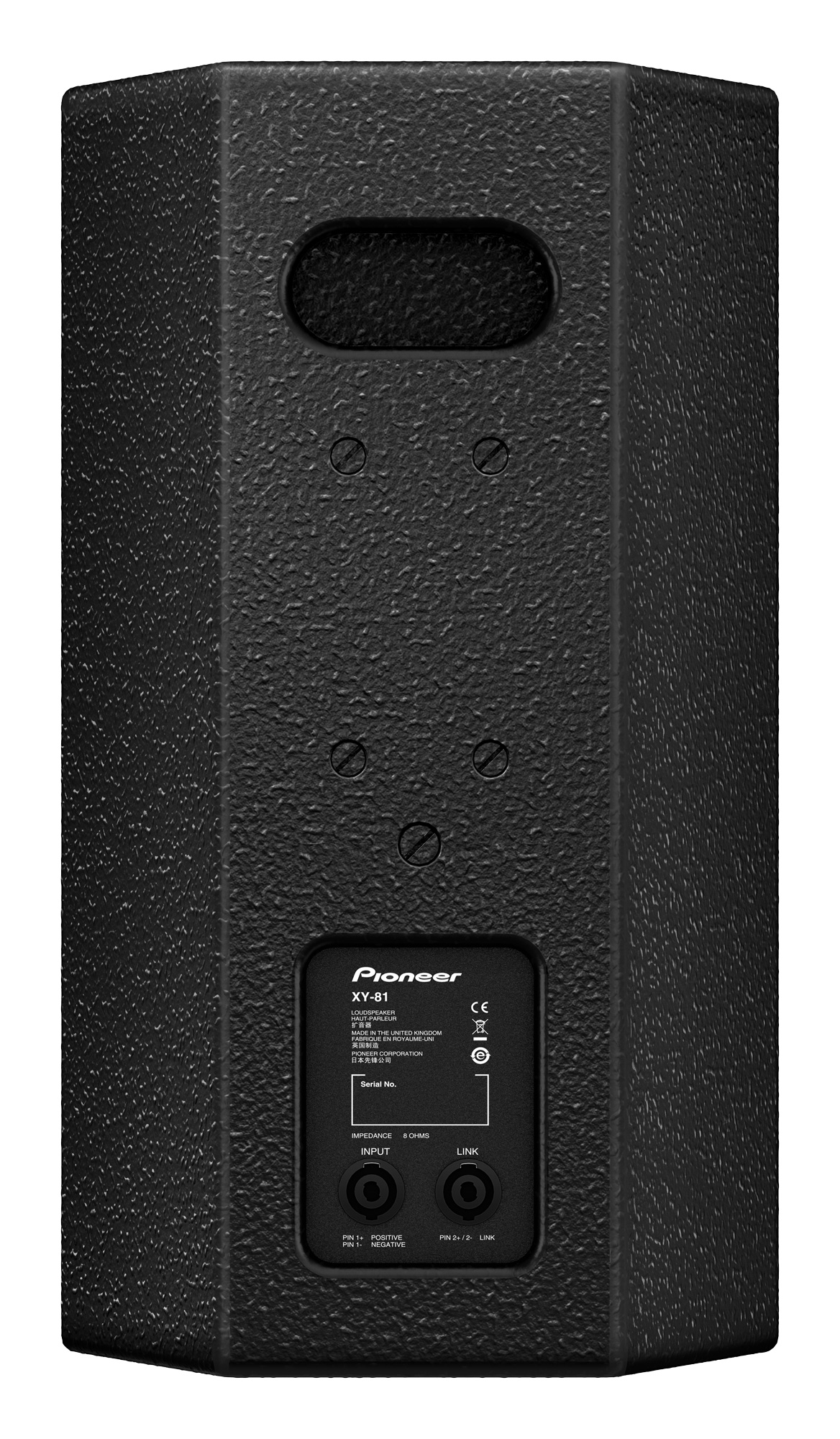

NL4 INPUT and LINK OUT connections as standard.
Robust enclosure made from premium multi-laminate birch plywood.
Impact resistant textured paint finish.

Hardware
Enclosure Type: Two-way passive, reflex-loaded
Rigging and Hardware
8 × M8 threaded mounting points (4 top/4 bottom),
1 × M8 threaded mounting points on rear,
4 × M6 threaded points on rear (for wall mount bracket),
1 × flush handle on rear,
1 × 35 mm polemount socket
Grille: Hex punched steel
Enclosure: 15 mm (0.6-inch) birch plywood
Finish: Impact-resistant, Black semi-matt textured
System data
Frequency response: 75 hz to 20 kHz
Sensitivity (1W/1m): 91 dB
Nominal Impedance: 8 Ω
Loudspeaker data
Power Handling: 350 W RMS, 700 W Program
Power Handling AES: 116 dB cont., 122 dB peak
Power Handling (RMS/Program): 90 °H × 60 °V, rotatable
Transformer taps:
8 inch (200 mm) LF cone driver,
1-inch (25 mm) exit neodymium HF compression driver
Maximum SPL: Asymmetric internal passive crossover
Dispersion: 2 × Neutrik SpeakON™ NL4
Dimensions / Weight
Dimensions ( W x H x D): 262 × 462 × 255 mm
Weight:12 kg (26.5 lbs)
