ChamSys MagicQ DMX Full Dongle
The MagicDMX Full USB to DMX Interface offers a full universe of DMX control with RDM support and without any time limit. It has the option of being used either as Output, or as an Input enabling use for monitoring DMX. Remotely set DMX addresses, select fixture modes and auto patch RDM compliant fixtures to MagicQ.
Hardware Specifications:
DMX Port(s): 1
RDM Support: Yes
USB Port(s): 1 (USB-C)
Unlocks ‘demo mode features: No
Time Restriction: No
MagicQ features restricted when using MagicDMX Interfaces:
Execute Window full screen
Scheduled Events and Automations
iOS / Android Remote app
10Scene Gateway and 10Scene remote app
Remote Control Protocol (serial, or network)
Web Server editing (viewing is supported)
Auto starting Playbacks
Startup in full screen / saved window positioning
Playback Synchronisation
Multi Programming including Net Sessions
Triggering of playbacks using DMX input
Mouse control of pan/tilt (only supported when connected to a MagicQ Wing with encoders)
Audio control and playback synchronisation with Winamp (this is supported when connected via network to a MagicQ console)
Timecode receive from ArtNet
Midi Notes & Timecode from 3rd Party USB/Virtual interfaces.
Audio input from PC/Mac sound card
Cased Weights and Dimensions:
Width:135mm (5.3”)
Depth: 93mm (3.6”)
Height: 38mm (1.4”)
Weight (MagicDMX Inside case): 0.1kg (0.22lbs)
Software Specifications:
Universes: 64
Channels: 32,768
Number of fixtures: upto 32,768
Cues: 5000
Cue stacks: 2000
Palettes: 4096
Groups: 5000
Media server support: 50 (each different content)
Included Accessories:

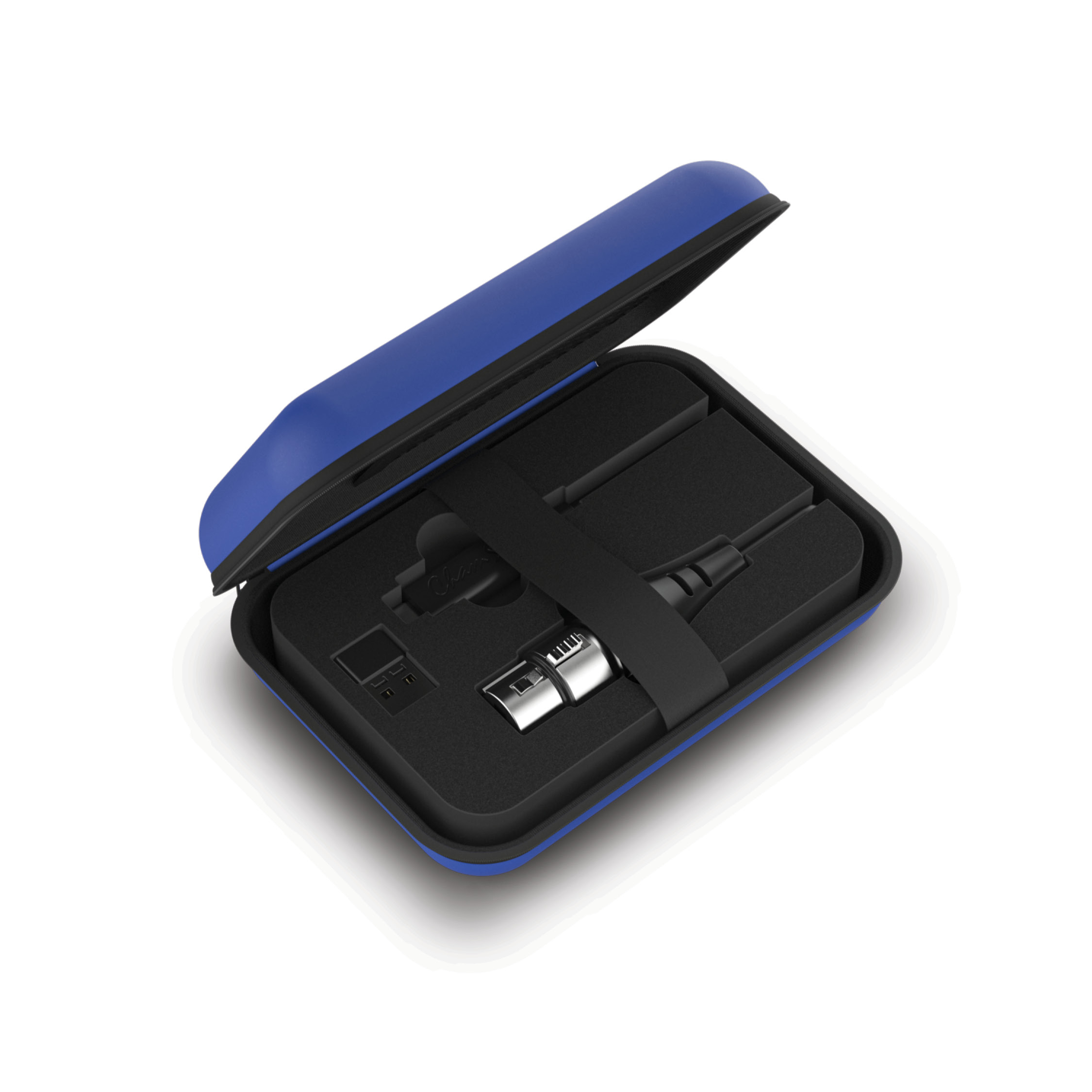

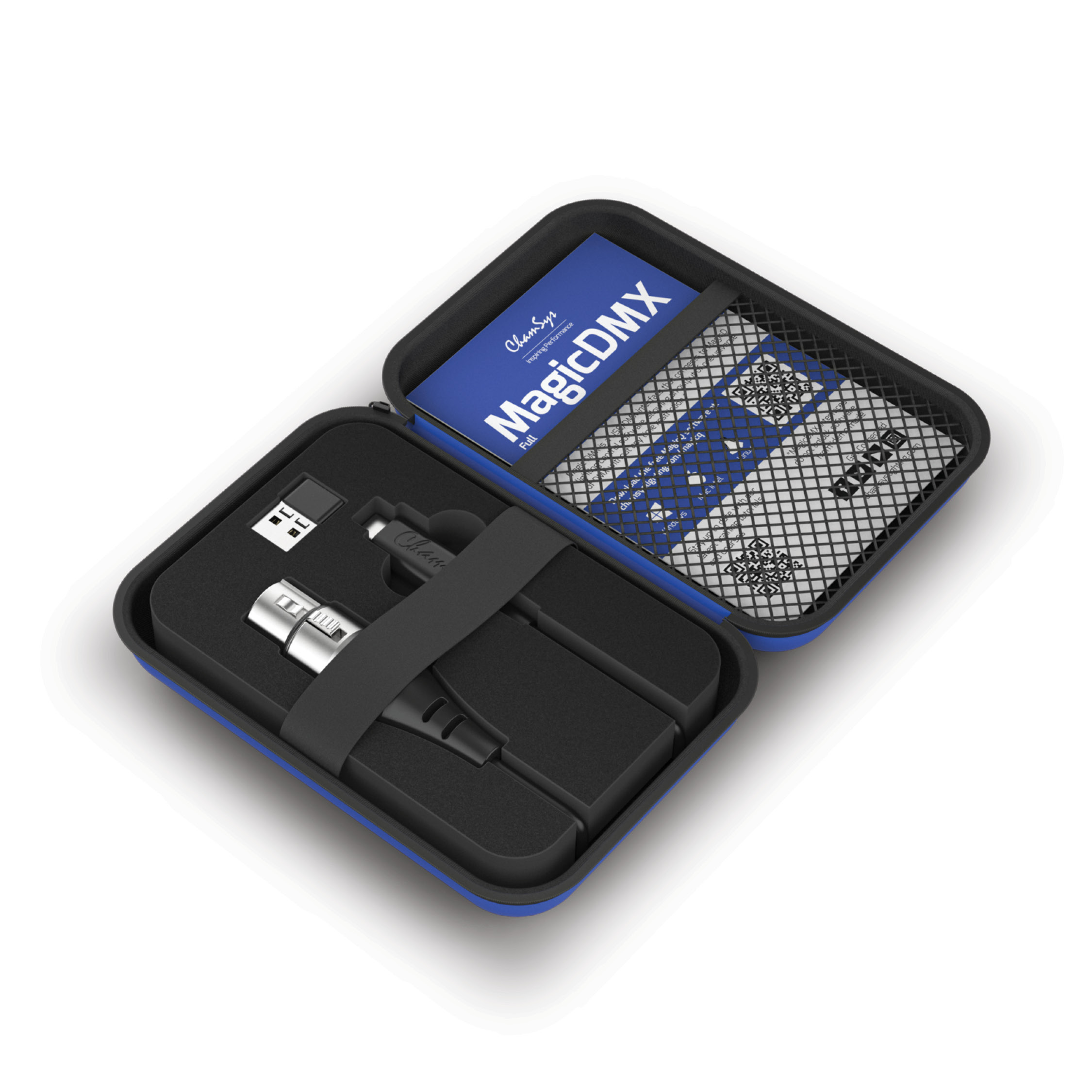

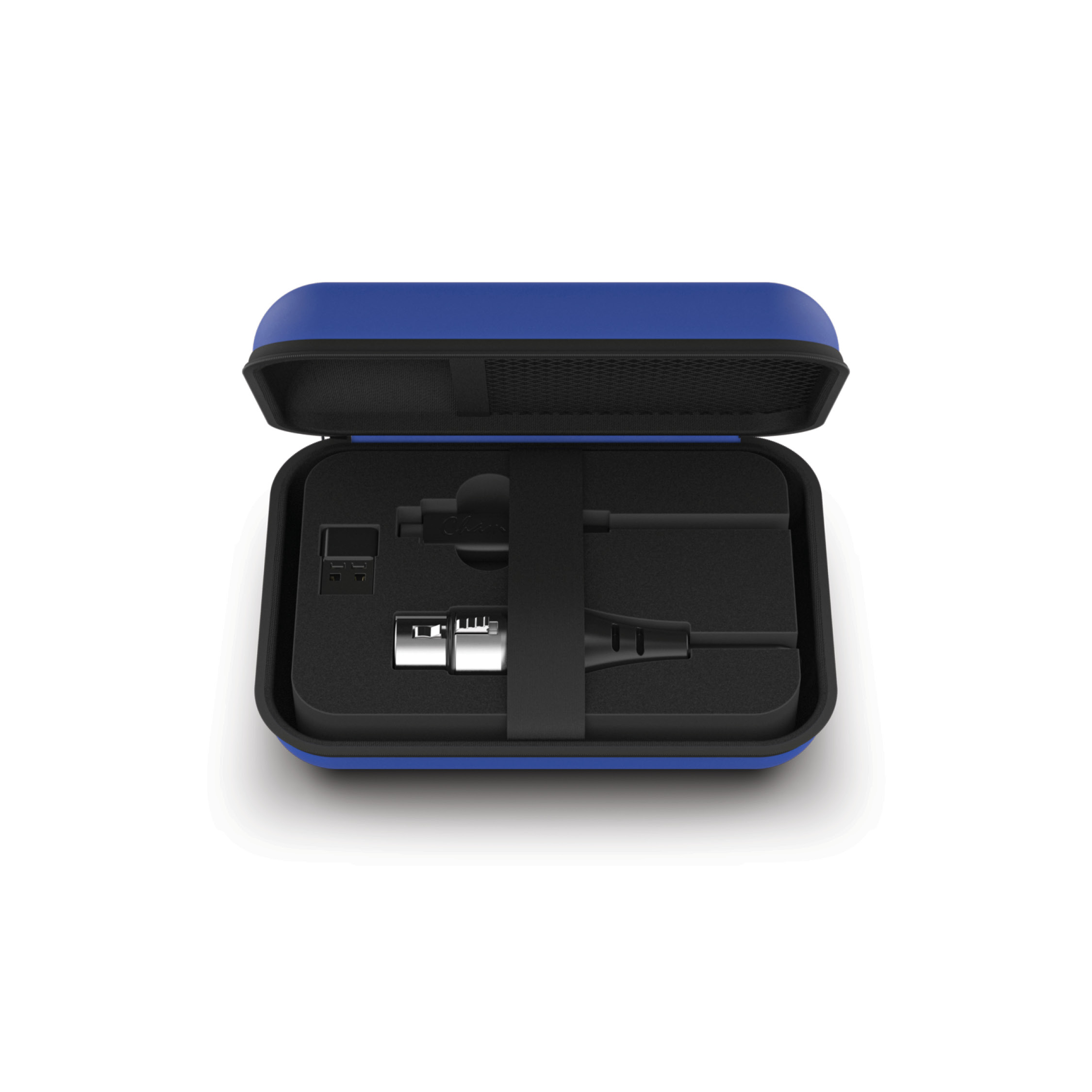

Soft Shell Carry Case: 1
