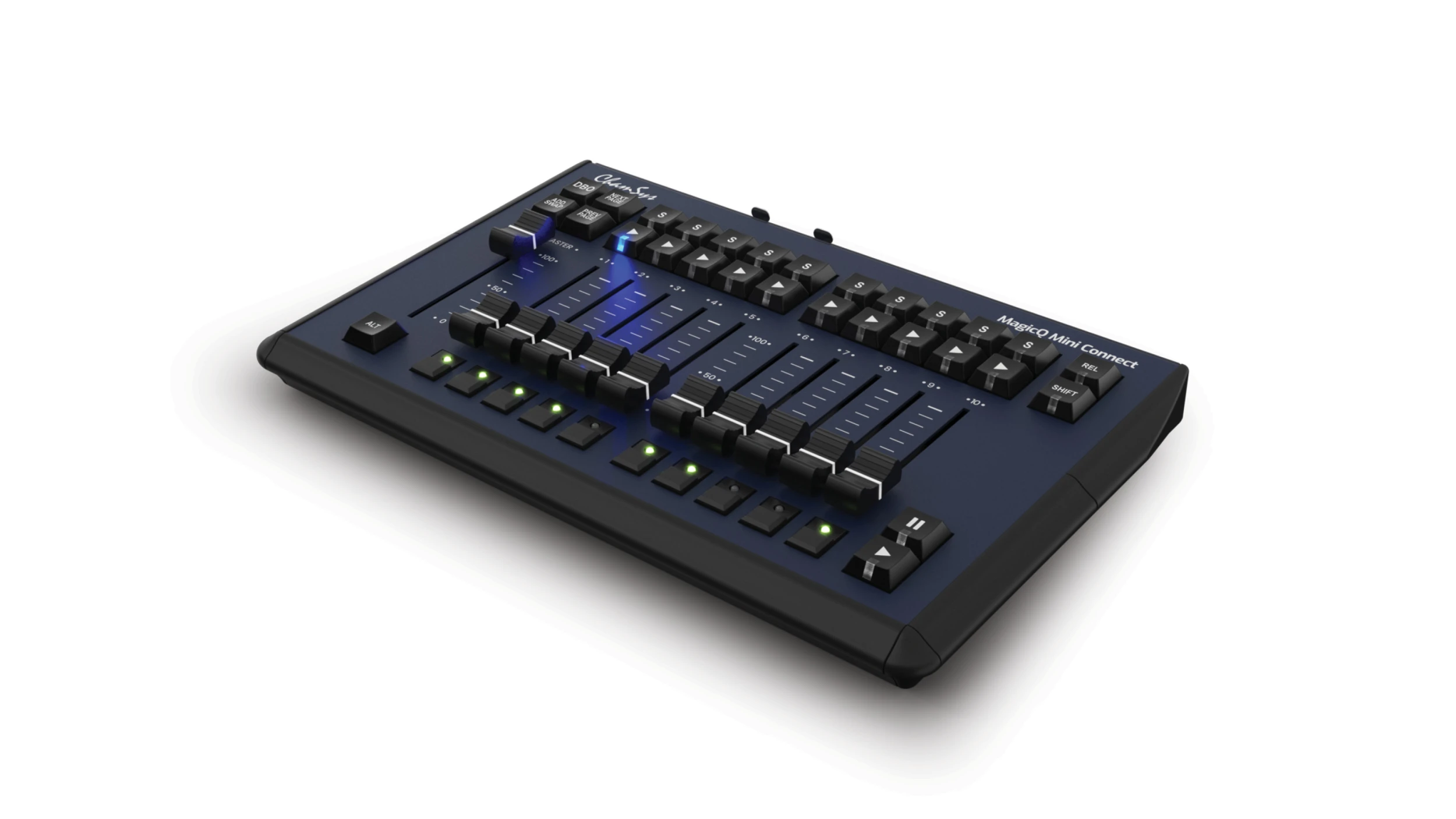

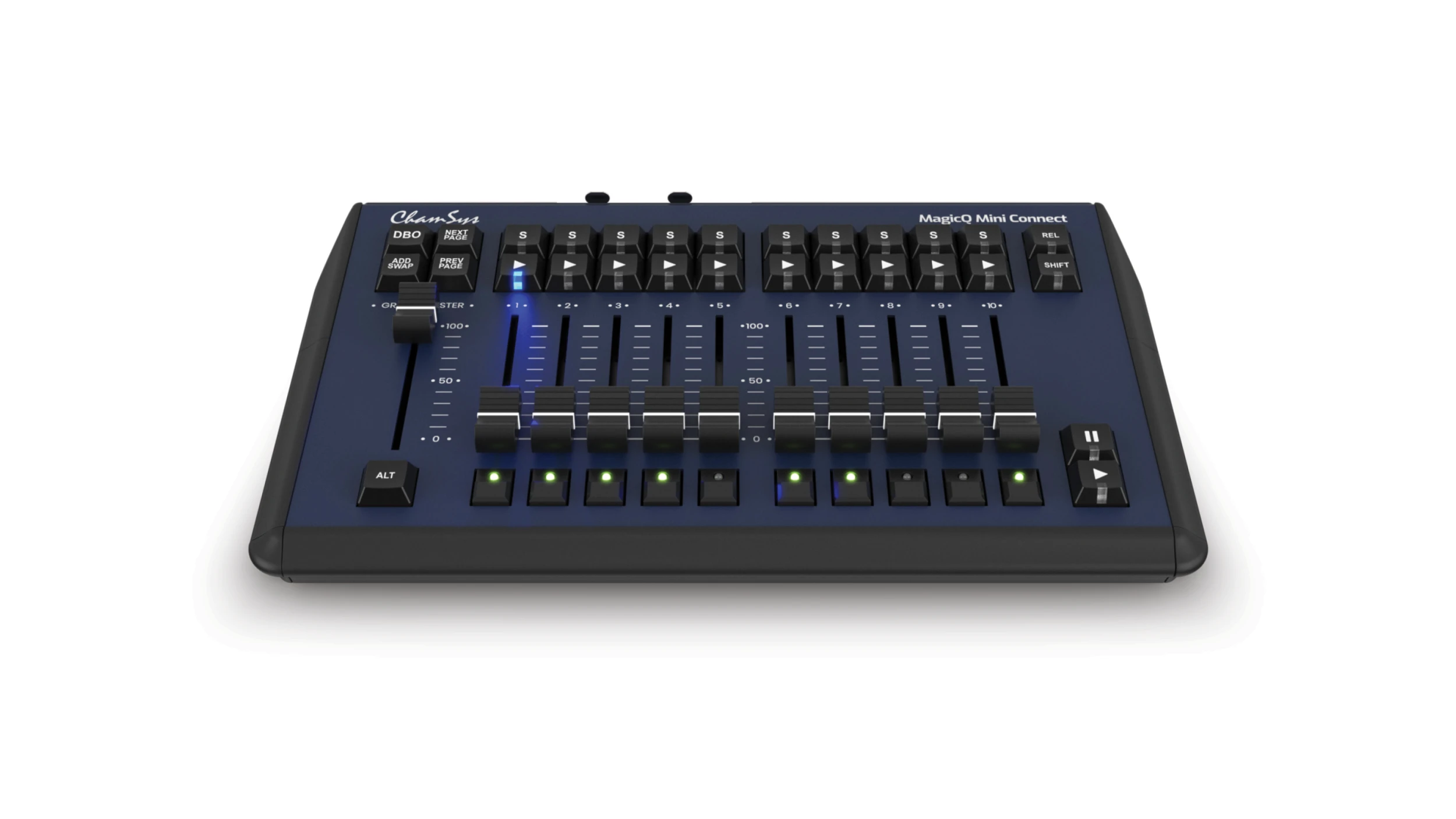

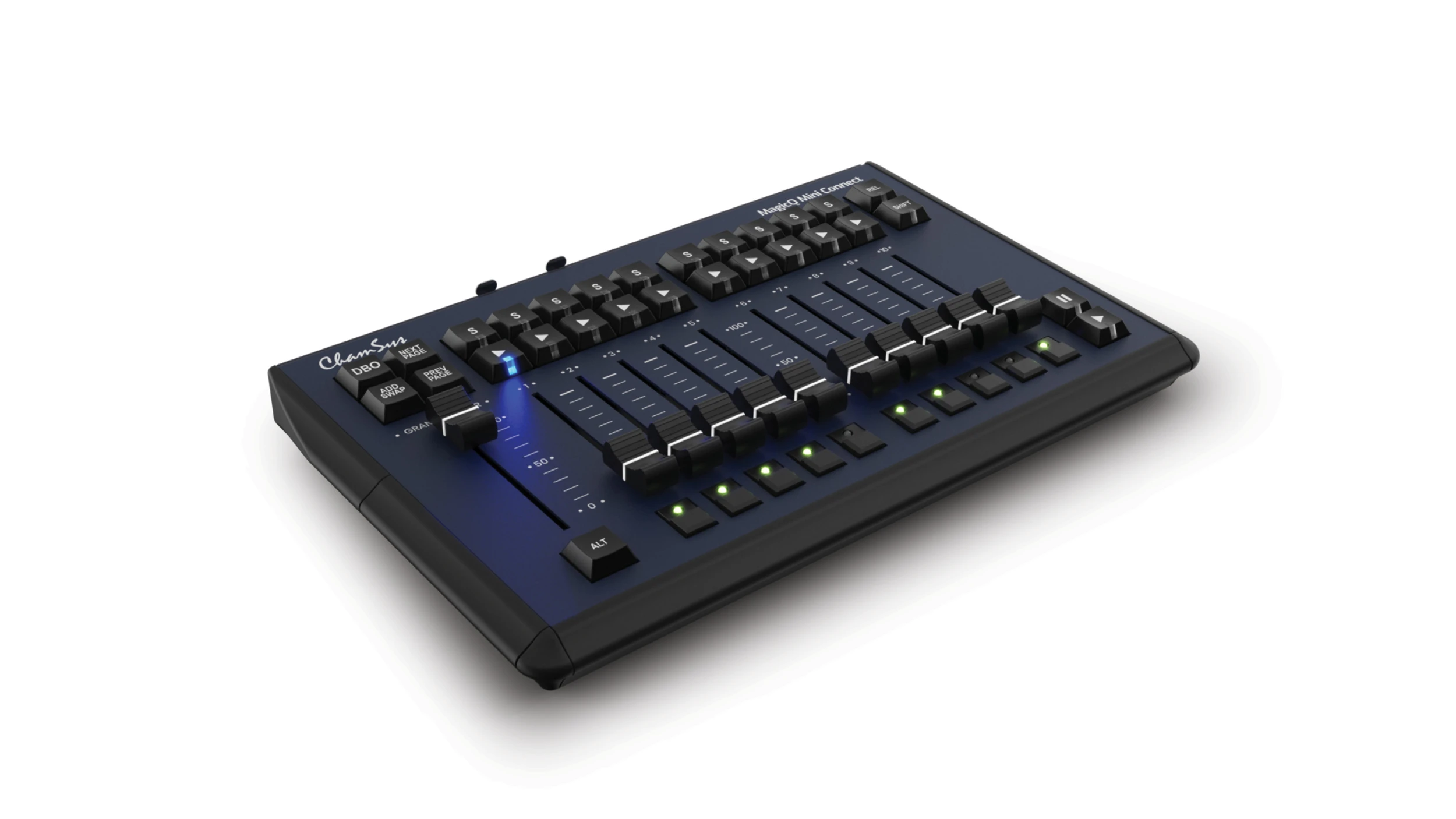

ChamSys MaqicQ Compact Mini Connect
The MagicQ Compact Mini Connect is a highly portable
USB-powered control surface that couples physical playback
control with the power of MagicQ software.
Attached to a Windows, Linux or OSX system running MagicQ
software, the Compact Mini Connect turns your computer into
a powerful lighting, media and LED control center. Live show
controls include 10 playback faders, Flash, Go and Select
buttons, and a dedicated Grand Master fader.
The Compact Mini Connect is ideal for theatres, venues,
clubs and installations. With 1 direct DMX512 output and
an onboard network port that sends up to 64 universes of
ArtNet and sACN, the Compact Mini Connect is also capable of
commanding large shows as well as offering a cost-effective
backup solution for users of larger MagicQ consoles.
Hardware Specification
• Playbacks: 10

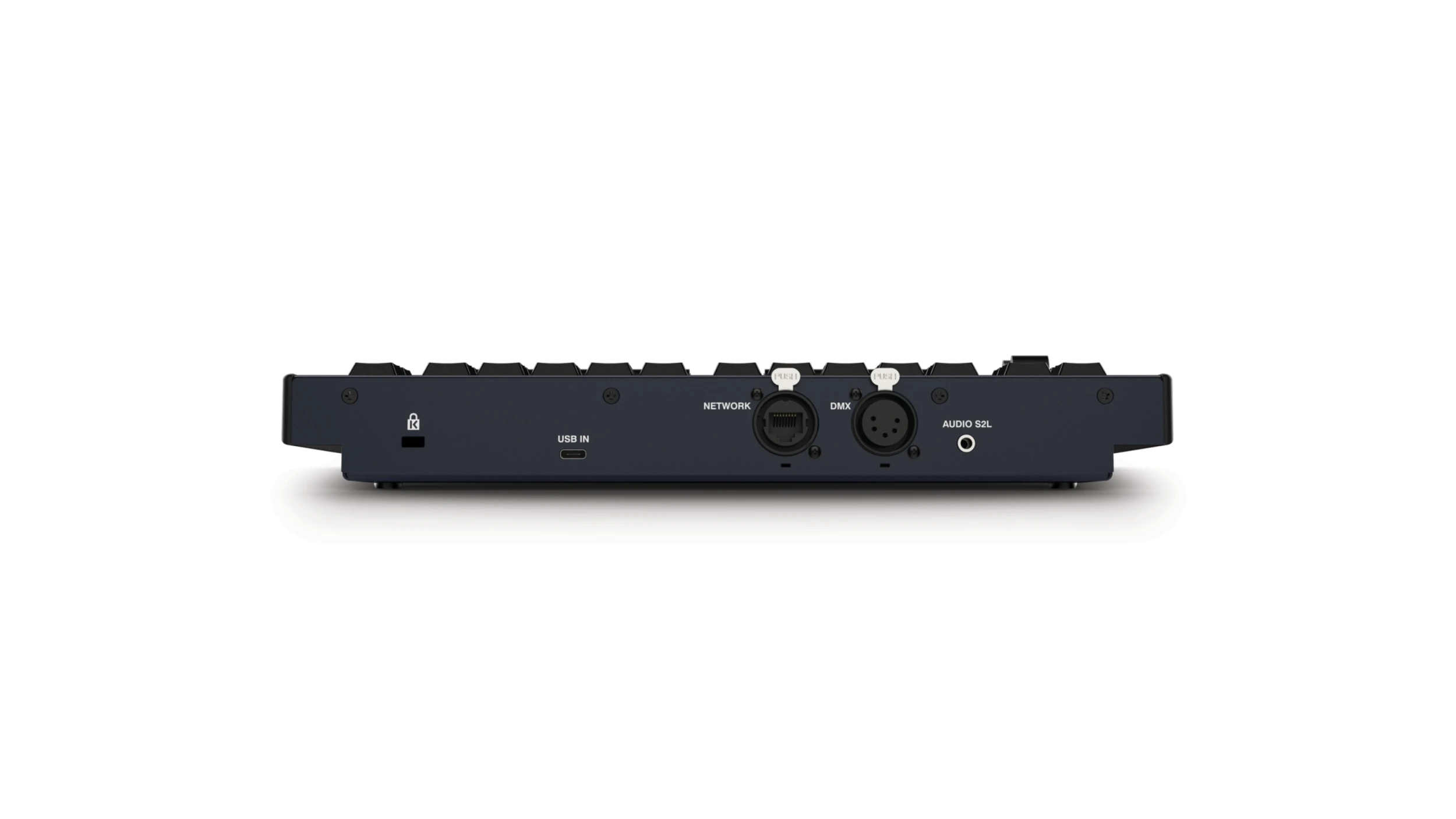

• Network Interface/Port: 1
• RDM Direct DMX Port: 1
• USB Ports: 1 (USB-C)
Software Specifications
• Universes: 64
• Channels: 32,768
• Number of fi xtures: upto 32,768
• Cues: 5000
• Cue stacks: 2000
• Palettes: 4096
• Groups: 5000
• Media server support: 50 (each different content)
Included Accessories
• USB A-C Cable
Weights and Dimensions
• Width: 327mm (12.8”)
• Depth: 204mm (8.03”)
• Height:45mm (1.77”)
• Weight: 1.85kg (4.1lbs
