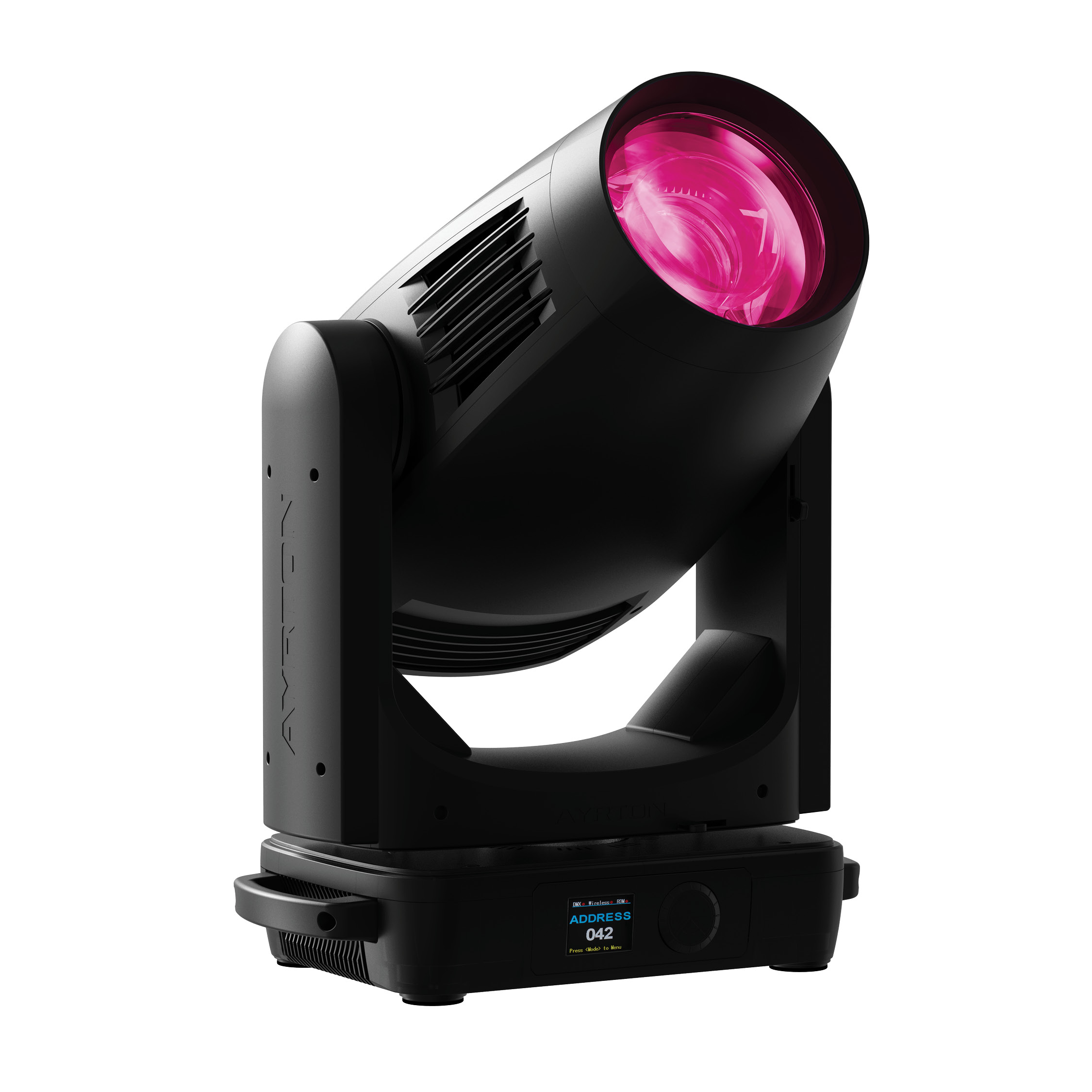

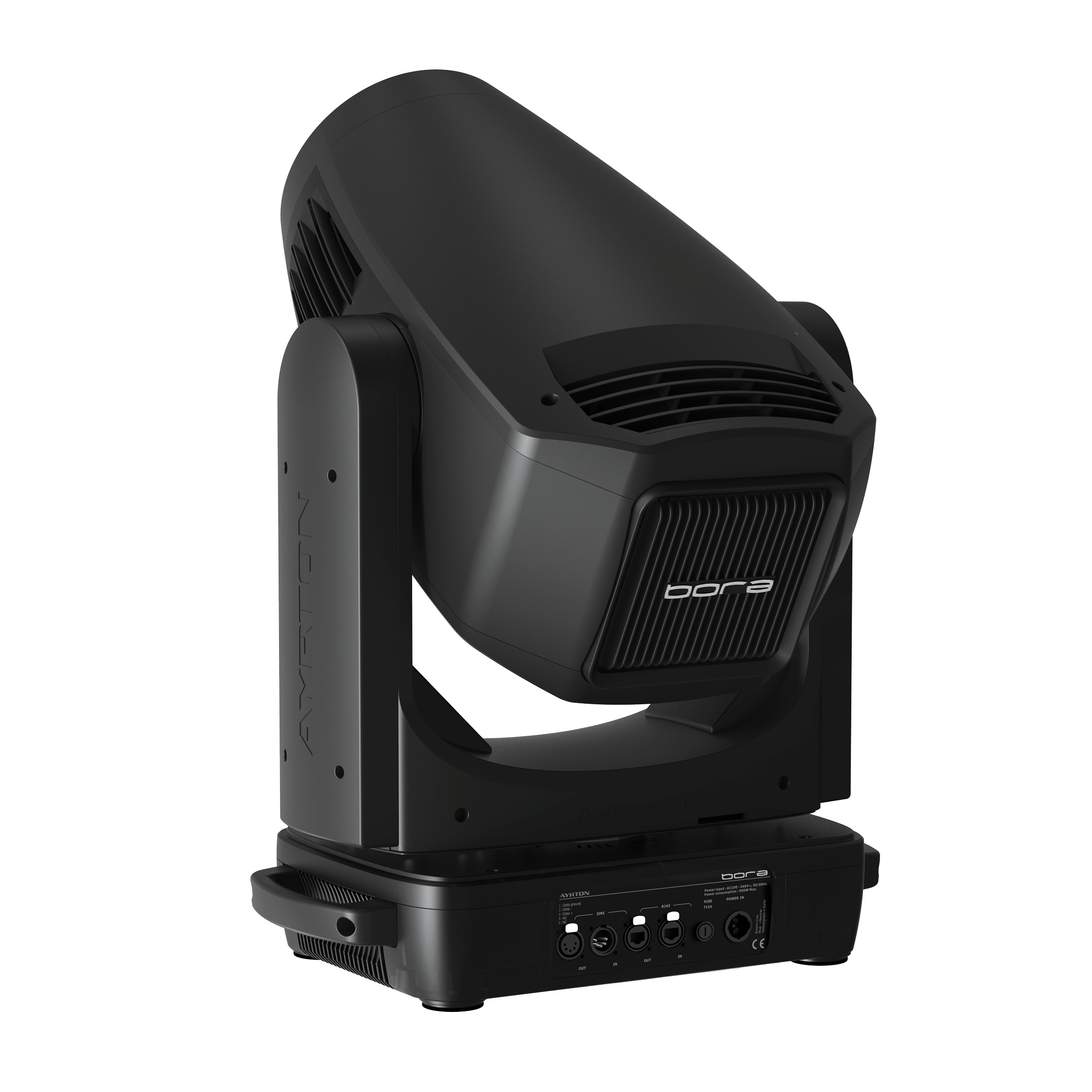

AYRTON Bora
Ayrton has developed Bora, its new feature-packed 750 W wash luminaire, using a radical approach.
Its specific function is to establish the perfect atmosphere for your creative design. Fitted with a frontal 178 mm spherical lens, the proprietary optical system using 13 high-quality lenses was developed specifically for “wash” applications. It features an 8:1 zoom ratio for a wide zoom range from 8 ° to 64 °. The optics produces an extremely uniform flat beam with no hot spot, ensuring a perfectly homogeneous colour mix regardless of the colour combination selected. Bora comes in two versions, each to meet the specific requirements of lighting professionals. Bora S is designed for scenic applications. It is equipped with a new LED module calibrated at 8000 K, delivering powerful metallic white light with record-breaking output of 40,000 lumens. Devised specifically for applications that require perfect colour reproduction, Bora TC is equipped with an entirely new LED module using a monochromatic light source calibrated at 6200 K with a native colour rendering index greater than 90, and extremely high TM30 readings.
OPTICS
• 13-element 8:1 zoom in high-resolution optic system
• Beam aperture: 8 ° to 64 °
• Fast motorised linear zoom
• Tempered anti-reflective coated lenses
• 178 mm frontal lens for greater performance
LIGHT SOURCE
• Bora S
• 60,000 lumens 8000 K white light engine
• Total luminaire output: up to 40,000 lumens
• Colour temperature output: 6800 K
• CRI: greater than 70
• Bora TC
• 48,000 lumens 7000 K white light engine
• Total luminaire output: up to 31,000 lumens
• Colour temperature output: 6200 K
• CRI: greater than 90
• Bora S & Bora TC
• Rated life (L70): up to 40,000 hours
• Flicker free sources management suitable for TV applications and all video-recorded events
MOVEMENT
• Extremely accurate positioning
• Moving head operated via either 8 or 16 bit resolution
• High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movements
• Pan and tilt with automatic repositioning
• Moving-head range: 540 ° (pan) & 262 ° (tilt)
COLOURS
• Sophisticated colour mix system providing CMY colour mixing
• Variable CTO colour temperature correction
• 2 fixed colour wheels with six complementary colours each
GOBOS
• Indexable rotating gobo wheel with 6 gobos plus open position
• Adjustable-speed rotating gobo in both directions
• Gobo diameter: 34.3 mm
• Image diameter: 25 mm
BARNDOORS
• 4 individually positionable shutter blades on a 100% surface area in all positions
• Rotation of the framing system module: +/- 45 °
IRIS DIAPPHRAGM
• Fast iris diaphragm with adjustable dynamic effects
• Iris range: 15% to 100% open
FROST
• 0% to 100% variable linear frost
DIMMER / STROBE
• Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
• Strobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
• Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
• Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
• Information menu including hour counter, temperature, software version
HARDWARE FEATURES
• Graphic LCD display for addressing and special functions settings, with flip function
• Clicking jog wheel to set functions
• Excess temperature protection
• Integrated LumenRadio™ wireless CRMX TiMo™ RDM receiver
• XLR 5 pin male and female connectors for DMX connection
• etherCON RJ45 IN / OUT connectors for ArtNet™ connection
• powerCON TRUE1 male connector for power connection
CONTROL
• DMX 512 protocol, through DMX cable or wireless system
• DMX-RDM compatible
• Stand-alone mode and Main/Follow modes
• ArtNet™ & sACN protocol through Ethernet cable
• Local control panel, with LCD display
• Choice of 3 DMX modes (from 30 to 52 DMX channels)
POWER SUPPLY
• Electronic supply with active PFC
• 120 to 240 Volts – 50/60 Hz
• Power: 1,150 W maximum
COOLING SYSTEM
• Advanced liquid cooling system
• Self-adjusting variable speed fans for quiet operation (Auto mode)
• Selectable ventilation user’s modes with a new Silent Mode
• Safety protection against temperatures excesses
HOUSING
• Moving-head skeleton made of aluminium and steel metal plates
• Base in die-cast aluminium
• Heatsinks in aluminium and copper
• Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
• Two-side handles for transportation
• Four heavy-duty feet for better stability
• IP20 protection rating
• Exterior finish: black (Carbon)
INSTALLATION
• Fastening brackets system: two Omega ¼ turn brackets designed for use with standard clamps
• Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire
• Safety-cable attachment point
OPERATING PARAMETERS
• Operating positions: all (device on floor or fixed to a support)
• Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
• Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)
• Minimum usage distance: 2 m (6.56 ft)
COMPLIANCE
• EU (EMC & LVD):
• EMC Directive 2014/30/EU
• LVD Directive 2014/35/EU
• US (Safety & EMC):
• UL 1573
• FCC Part 15, Subpart B: 2018
• Substance regulations
• RoHS
• REACH
• CP65
SIZE
• Product: 494 x 737 x 280 mm (l x h x d)
• Flight-case foam: 655 x 590 x 555 mm (l x h x d)
WEIGHT
• Product: 37.8 kg
