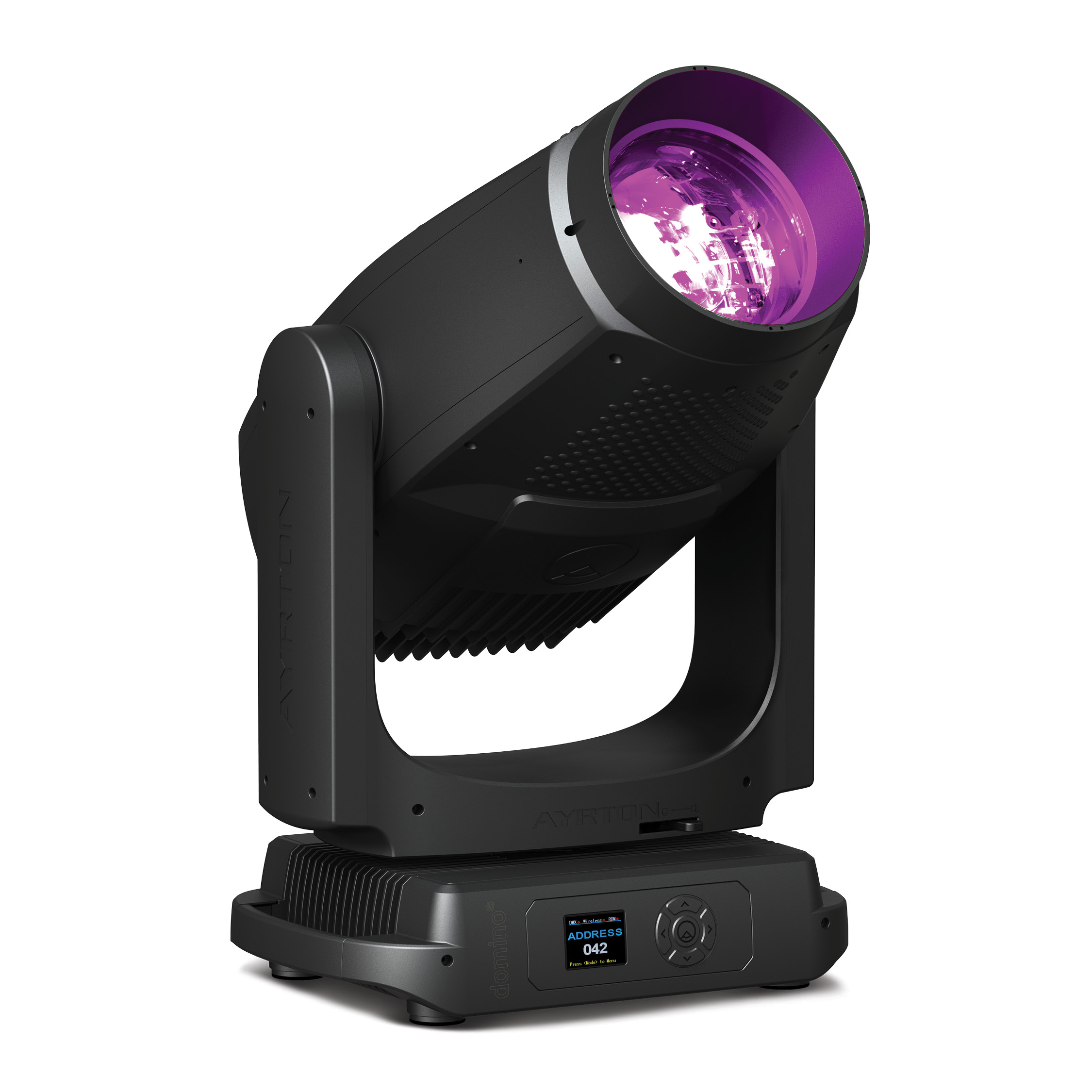

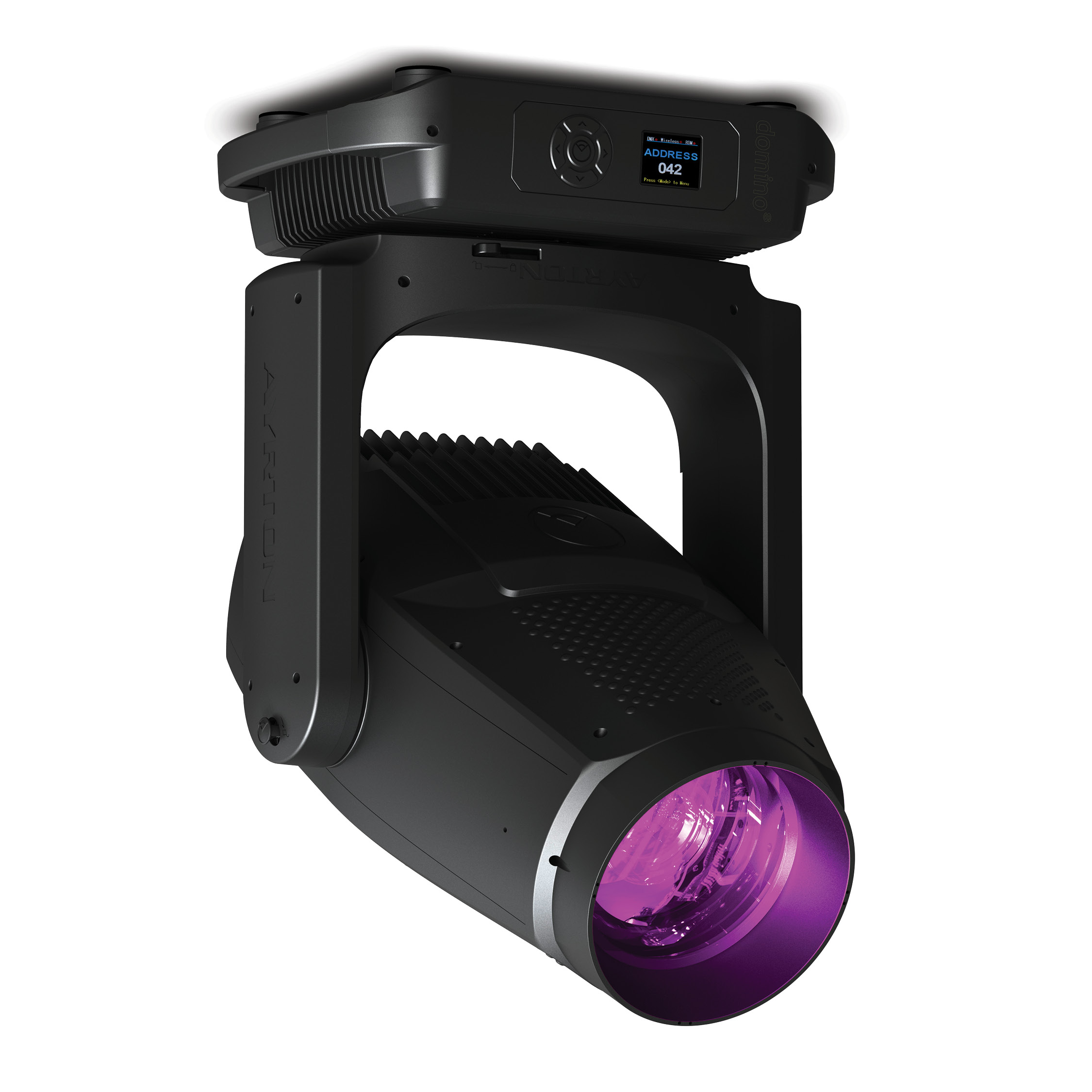

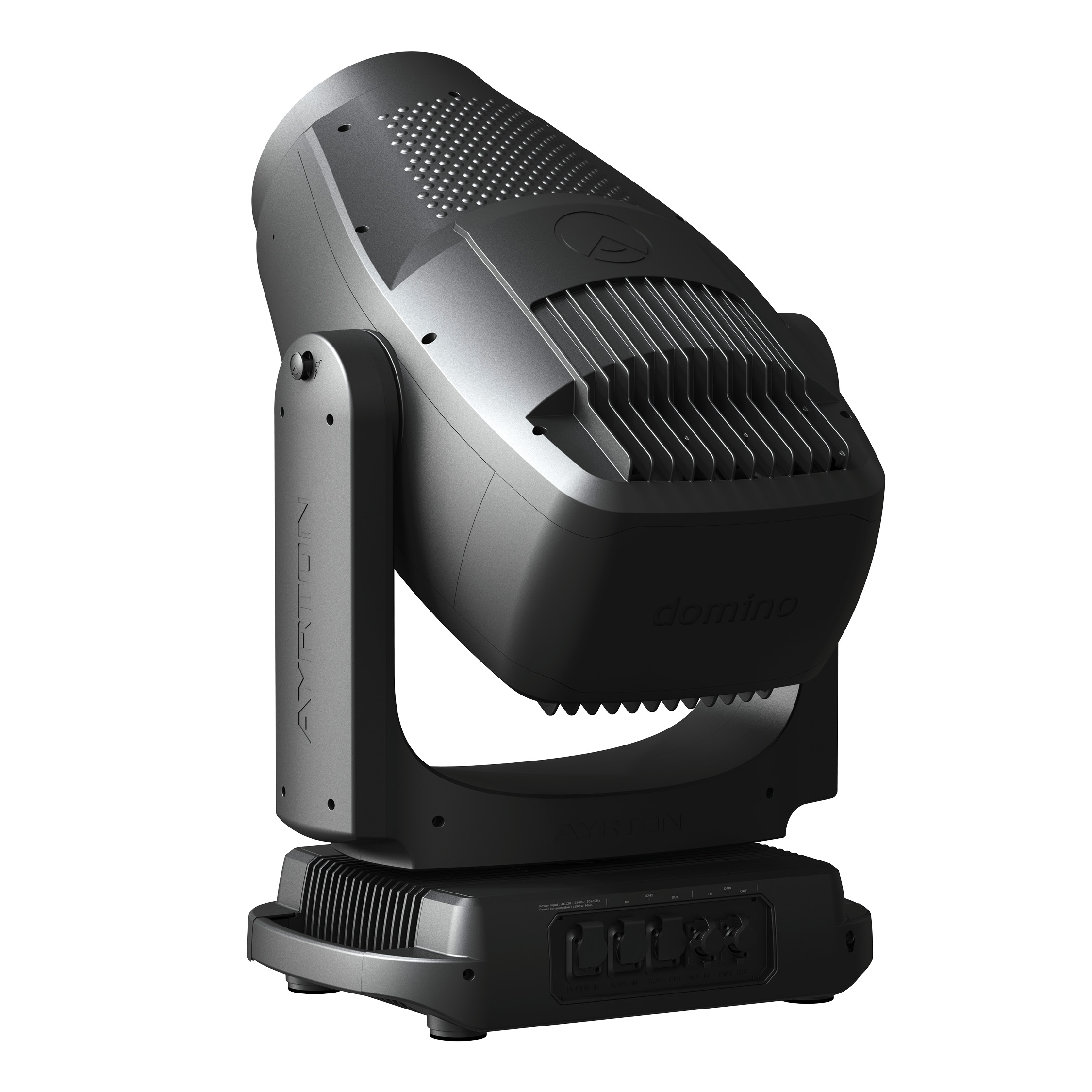

AYRTON Domino
A new member of Ayrton’s IP65 multi-function luminaire family designed for intensive outdoor use, Domino Profile is a marvel of technology that combines extraordinary light power with full-featured standard equipment.
Equipped with an entirely new 1000 W monochromatic high-efficiency LED emitter calibrated at 8000 K, Domino Profile S can deliver powerful metallic white light with record output of 51,000 lumens at a colour temperature of 7000 K, when operating at a steady state. Domino Profile TC is specially designed for situations that require perfect colour rendition, it will amaze colour aficionados with its C.R.I. greater than 90 and extremely high TM30 readings, at a colour temperature of 6000 Kelvin. Designed around the exceptional optics of Huracán Profile, this luminaire was specifically developed to achieve an optimal resolution-to-performance-to-efficiency ratio. These optics deliver an extremely uniform flat beam with no hot spot and reproduce high-definition images impeccably. Fitted with a 178 mm frontal lens, the proprietary optical system uses 13 lenses, producing a 10:1 zoom ratio and a zoom range of 6 ° to 60 °. Designed to operate in the most extreme situations, Domino Profile can resist hot or cold temperatures, wind, rain, hail, salt fog, sand and dust. It can withstand arid environments, heavy rainfall, and sudden climatic variations.
OPTICS
• 13-element 10:1 zoom high-resolution optic system
• Beam aperture: 6 ° to 60 °
• Fast motorised linear zoom
• Tempered anti-reflective coated lenses
• 178 mm frontal lens for greater performance
LIGHT SOURCE
• Domino Profile S
• 75,000 lumens 8000 K white light engine
• Total luminaire output: up to 51,000 lumens
• Colour temperature output: 7000 K
• CRI: greater than 70
• Domino Profile TC
• 56,000 lumens 7000 K white light engine
• Total luminaire output: up to 36,400 lumens
• Colour temperature output: 6500 K
• CRI: greater than 90
• Domino Profile S & Domino Profile TC
• Rated life (L70): up to 40,000 hours
• Flicker-free source management suitable for TV applications and all video-recorded events
MOVEMENT
• Extremely accurate positioning
• Moving-head operated via either 8- or 16-bit resolution
• High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
• Pan and tilt automatic repositioning
• Moving-head range: 540 ° (pan) & 263 ° (tilt)
COLOURS
• Sophisticated colour mix system providing CMY colour mixing
• Variable CTO colour temperature correction
• Fixed colour wheel with six complementary colours
• 2 CRI and TM30 optimizer filters
GOBOS
• 2 indexable rotating gobo wheels with 7 high-precision glass gobos, plus open position
• Adjustable-speed rotating gobo in both directions
• Gobo diameter: 30 mm
• Image diameter: 25 mm
• Gobo thickness: 1.1 mm
FRAMING SYSTEM
• 4 individually positionable shutter blades on a 100% surface area in all positions
• Rotation of the framing system module: +/- 60 °
IRIS DIAPHRAGM
• Fast iris diaphragm with adjustable dynamic effects
• Iris range: 15% to 100% open
FROST
• 2 frost filters: one light, one heavy
EFFECTS
• Focusable black & white graphic animation effect-wheel with continuous rotation in both directions
• Focusable colour graphic animation effect-wheel with continuous rotation in both directions
• 2 rotating and indexable prisms: one 5-facet circular, one 4-facet linear
DIMMER / STROBE
• Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
• Strobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
• Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
• Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
• Information menu including hour counter, temperature, software version
HARDWARE FEATURES
• Graphic LCD display for addressing and special function settings, with flip function
• 5 menu buttons to set the functions
• Excess temperature protection
• Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
• Domino-IP65
• IP65 XLR 5-pin male and female connectors for DMX connection
• IP65 RJ45 IN / OUT connectors for ArtNet™ connection
• IP65 powerCON TRUE1 male connector for power connection
• Domino-IP66
• DMX IN / OUT tails to bare end for IP66 DMX connection
• Ethernet IN / OUT tails to bare end for IP66 ArtNet™ connection
• Power tail to bare end for IP66 power connection
CONTROL
• DMX 512 protocol, through DMX cable or a wireless system
• DMX-RDM compatible
• Stand-alone mode and Main/Follow modes
• ArtNet™ & sACN protocol through Ethernet cable
• Local control panel, with IP65 LCD display
• Choice of 3 DMX modes (from 44 to 66 DMX channels)
POWER SUPPLY
• Electronic supply with active PFC
• 120 to 240 Volts – 50/60Hz
• Power: 1,800 W maximum
COOLING SYSTEM
• Advanced liquid cooling system
• IP68 self-adjusting variable speed fans for quiet operation (Auto mode)
• Selectable ventilation user modes with a new Silent Mode
• Safety protection against temperatures excesses
HOUSING
• Moving-head skeleton made of die-cast aluminium
• Base in die-cast aluminium
• Heatsinks in aluminium and copper
• Moulded covers in in die-cast aluminium
• Two-side handles for transportation
• Four heavy-duty feet for better stability
• IP65 protection rating
• Exterior finish: black (Carbon)
INSTALLATION
• Fastening brackets system: two Omega ¼ turn brackets designed for use with standard clamps
• Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire
• Safety cable attachment point
OPERATING PARAMETERS
• Operating positions: all (device on floor or fixed to a support)
• Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
• Minimum permitted ambient temperature (Ta min): -20 °C (-4 °F)
• Minimum usage distance: 3 m (9.84 ft)
COMPLIANCE
• EU (EMC&LVD)
• EMC Directive 2014/30/EU
• LVD Directive 2014/35/EU
• US (Safety & EMC)
• UL 1573
• FCC Part 15, Subpart B: 2018
• Substance regulations
• RoHS
• REACH
• CP65
SIZE
• Product: 490 x 841 x 330 mm (l x h x d)
• Flight-case foam: 715 x 665 x 555 mm (l x h x d)
WEIGHT
• Product: 52 kg
