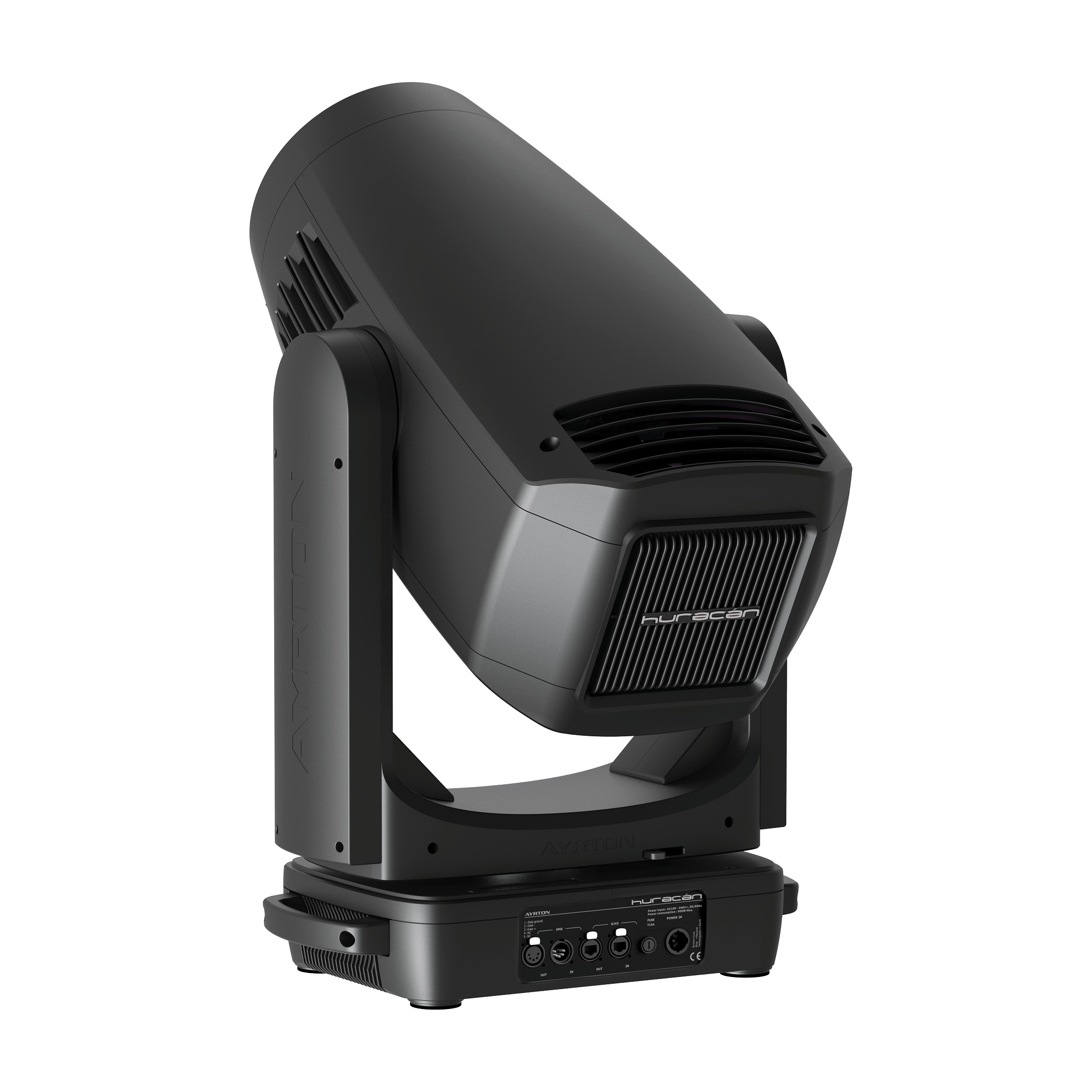

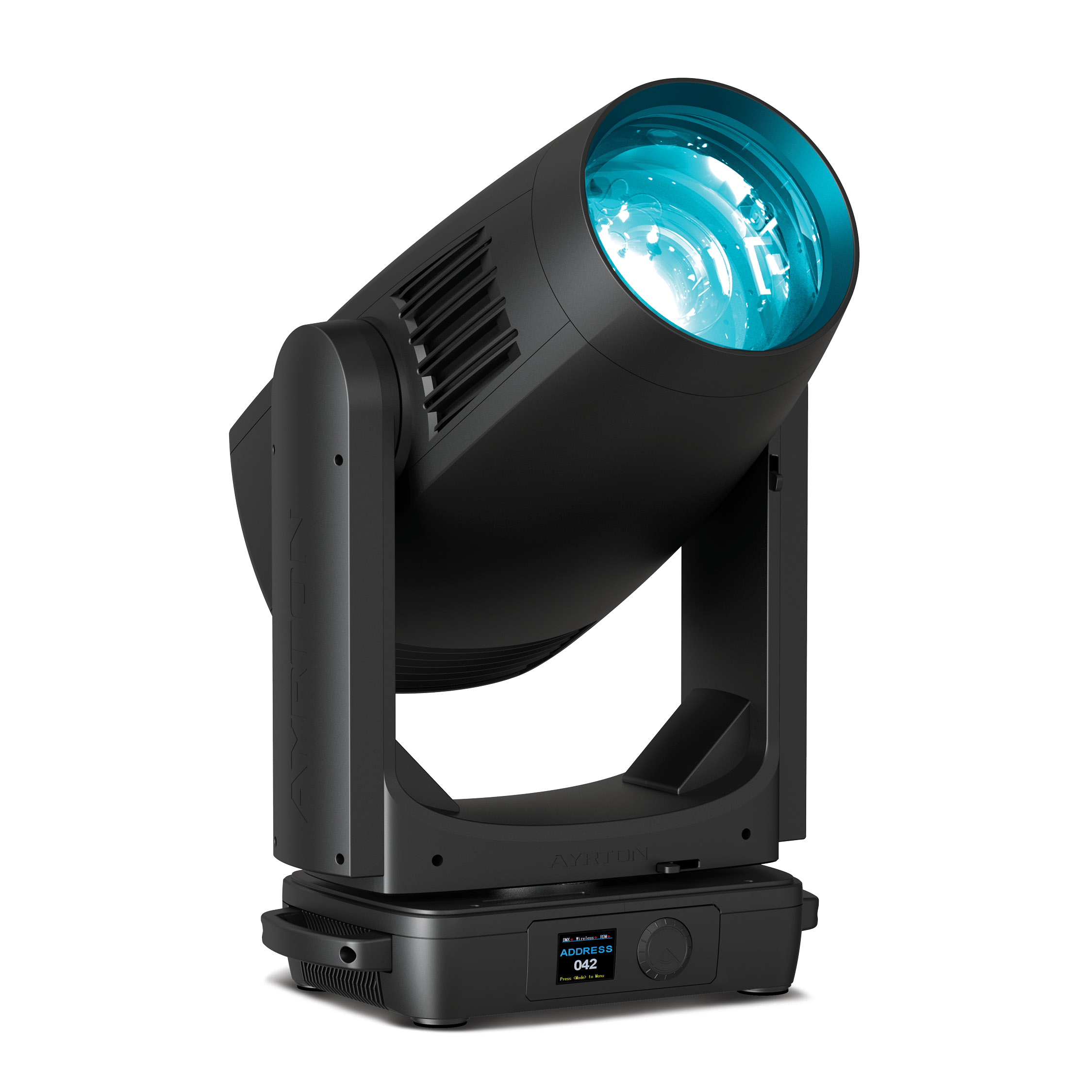

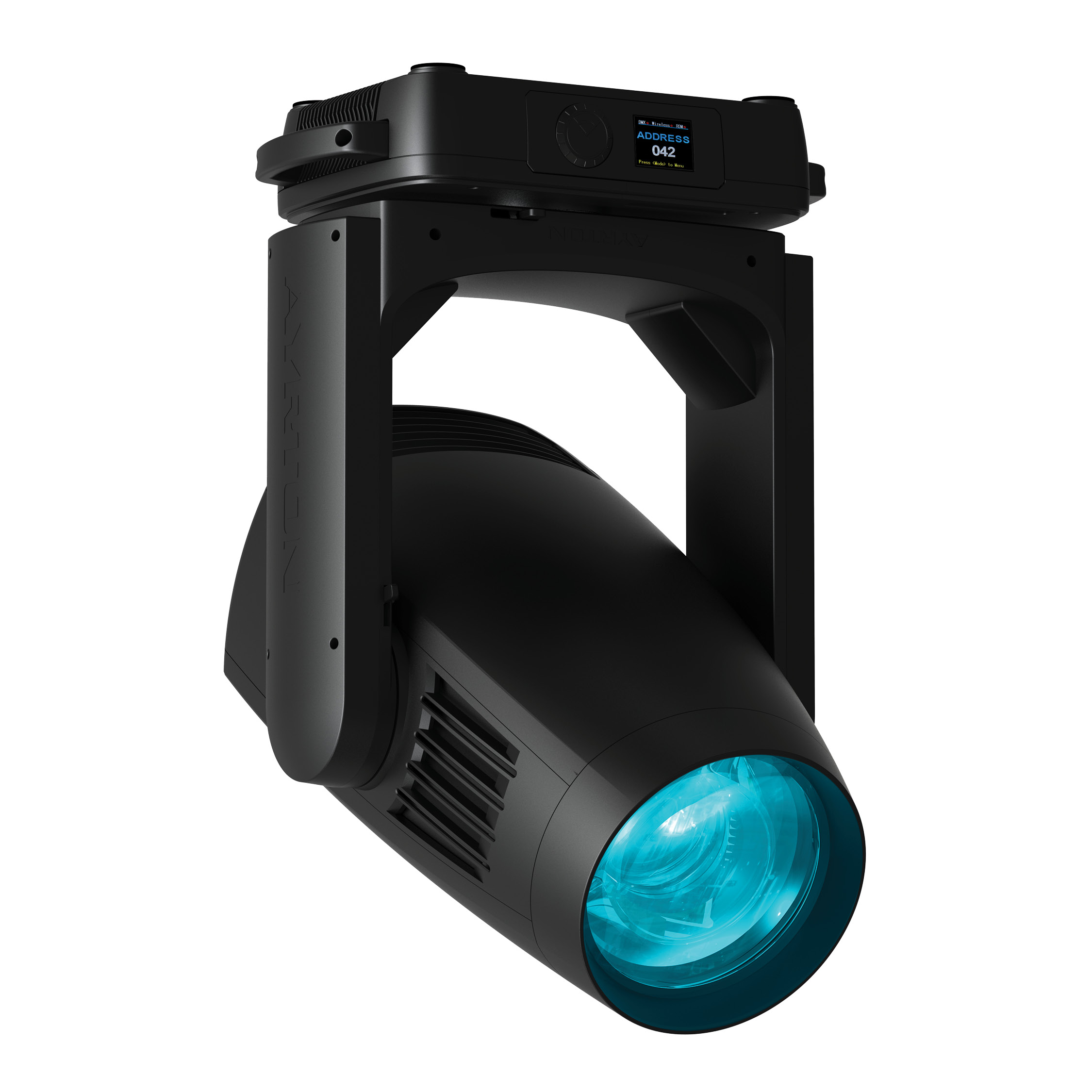

AYRTON Huracan LT
Huracán LT is the first LED luminaire in the brand new line of “LT” (Long Throw) products dedicated to long-range applications.
To achieve an ultra-intense beam from a LED source, Ayrton has added 225 mm-diameter, extra-large frontal optics weighing 7 kg. The proprietary optical system has 13 lenses, delivering a 15:1 zoom ratio and a zoom range of 3.5 ° to 53 °. Fitted with a next-generation, oversized liquid phase-change cooling system and a new high-efficiency 1000 W LED module, Huracán LT delivers record light output of 51,000 lumens at a colour temperature of 6700 Kelvin when operating at a steady state. Provided with multiple optical tools designed for shaping light, Huracán LT is factory-equipped with a removable high-transmission diffusion filter to erase the edge of the beam without changing its angle; a progressive linear frost system for precision adjustment of the desired diffusion level for creating artificial wash effects; and two combinable image-multiplying rotating prisms – one linear with four facets, and the other circular with five facets.
OPTICS
• 13-element 15:1 zoom high-resolution optic system
• Beam aperture: 3.5 ° to 53 °
• Fast motorised linear zoom
• Tempered anti-reflective coated lenses
• 225 mm frontal lens for greater performance
LIGHT SOURCE
• 75,000 lumens 8200 K white light engine
• Total luminaire output: up to 51,000 lumens (integrating sphere measurement, Fan mode AUTO)
• Colour temperature output: 6700 K
• CRI: greater than 70
• Rated life (L70): up to 40,000 hours
• Flicker-free source management suitable for TV applications and all video-recorded events
MOVEMENT
• Extremely accurate positioning
• Moving-head operated via either 8- or 16-bit resolution
• High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
• Pan and tilt automatic repositioning
• Moving-head range: 540 ° (pan) & 262 ° (tilt)
COLOURS
• Complex colour mixing system with a double CMY saturation level capable of generating billions colours (patent pending)
• Variable CTB colour temperature correction
• Variable CTO colour temperature correction
• Variable CTP colour temperature correction
• Fixed colour wheel with six complementary colours
GOBOS
• Two indexable rotating gobo wheels with seven high precision glass gobos, plus open position
• Adjustable-speed rotating gobo in both directions
• Gobo diameter: 30 mm
• Image diameter: 25 mm
• Gobo thickness: 0.5 mm (metal gobo) – 1.1 mm / 2.2mm
FRAMING SYSTEM
• 4 individually positionable shutter blades on a 100% surface area in all positions
• Rotation of the framing system module: +/- 60 °
IRIS DIAPHRAGM
• Fast iris diaphragm with adjustable dynamic effects
• Iris range: 15% to 100% open
FROST
• 2 frost filters: one light, one heavy
EFFECTS
• Monochromatic multi-position graphical animation effects wheel with continuous rotation in both directions
• CMY & RGB colour graphic animation effect-wheel with continuous rotation in both directions
• 2 combinable rotating and indexable prisms: one 5-facet circular, one 4-facet linear
DIMMER / STROBE
• Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
• Strobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
• Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
• Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
• Information menu including hour counter, temperature, software version
HARDWARE FEATURES
• Graphic LCD display for addressing and special functions settings, with flip function
• Clicking jog wheel to set functions
• Excess temperature protection
• Integrated wireless CRMX TiMo RDM receiver from LumenRadio
• XLR 5 pin male and female connectors for DMX connection
• Ethercon RJ45 IN / OUT connectors for ArtNet connection
• PowerCON TRUE1 male connector for power connection
CONTROL
• DMX 512 protocol, through DMX cable or a wireless system
• DMX-RDM compatible
• Stand-alone mode and Main/Follow modes
• ArtNet & sACN protocol through Ethernet cable
• Local control panel, with LCD display
• Choice of 3 DMX modes (from 44 to 70 DMX channels)
POWER SUPPLY
• Electronic supply with active PFC
• 120 to 240 Volts – 50/60Hz
• Power: 1,470 W maximum
COOLING SYSTEM
• Advanced liquid cooling system
• Self-adjusting variable speed fans for quiet operation (Auto mode)
• Selectable ventilation user modes including Super Silent Mode
• Safety protection against excess temperature•
HOUSING
• Moving-head skeleton made of aluminium and steel metal plates
• Base in die-cast aluminium
• Heatsinks in aluminium and copper
• Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
• Two-side handles for transportation
• Four heavy-duty feet for better stability
• IP20 protection rating
• Exterior finish: black (Carbon)
INSTALLATION
• Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps
• Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire
• Safety cable attachment point
OPERATING PARAMETERS
• Operating positions: all (device on floor or fixed to a support)
• Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
• Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)
• Minimum usage distance: 3 m (9.84 ft.)
COMPLIANCE
• EU (EMC & LVD):
• EMC Directive 2014/30/EU
• LVD Directive 2014/35/EU
• US (Safety & EMC)
• UL 1573
• FCC Part 15, Subpart B:2018
• Substance regulations
• RoHS
• REACH
• CP65
SIZE
• Product: 494 x 867 x 280 mm (l x h x d)
• Flight-case foam: 745 x 550 x 660 mm (l x h x d)
WEIGHT
• Product: 53.8 kg
