AYRTON Veloce Wash -

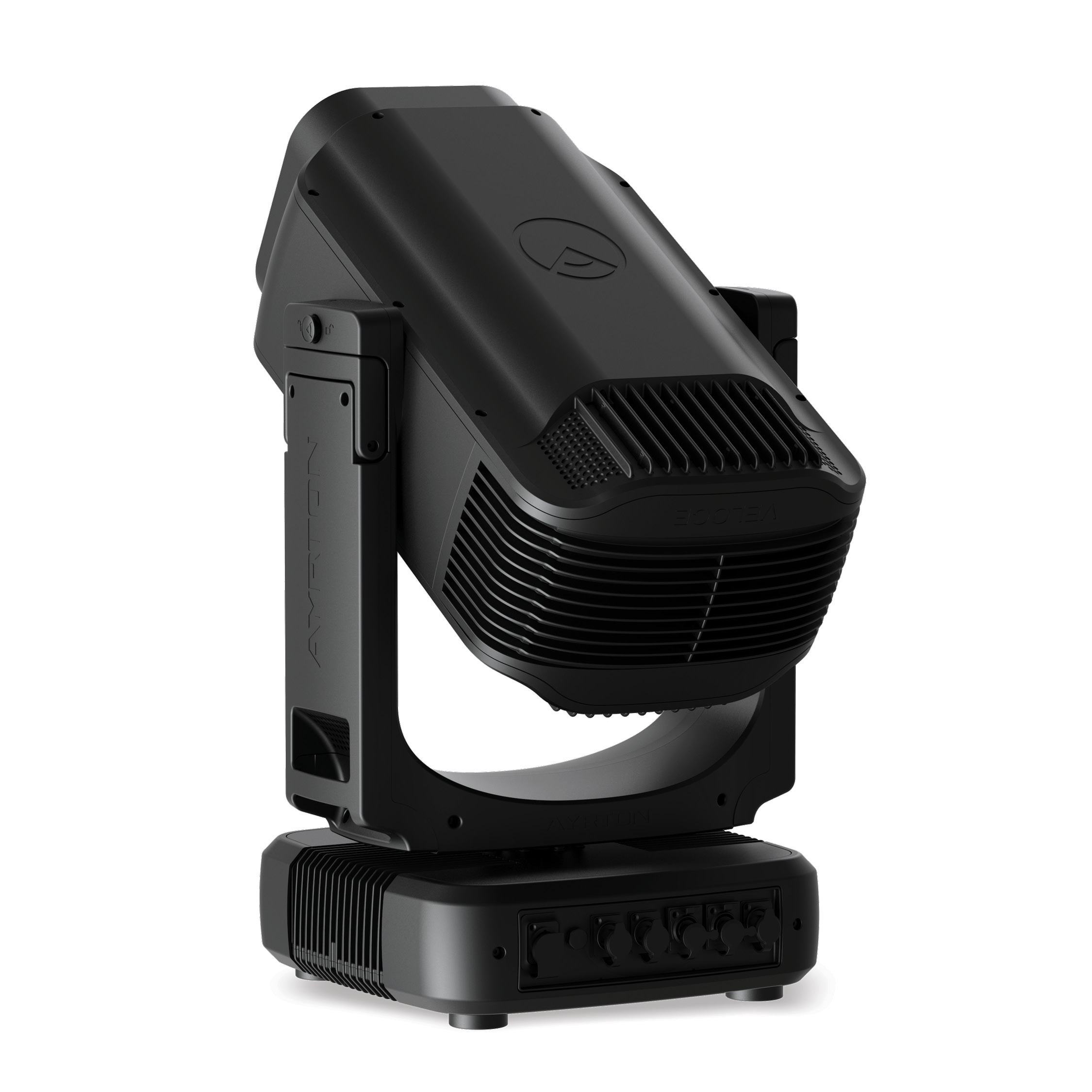

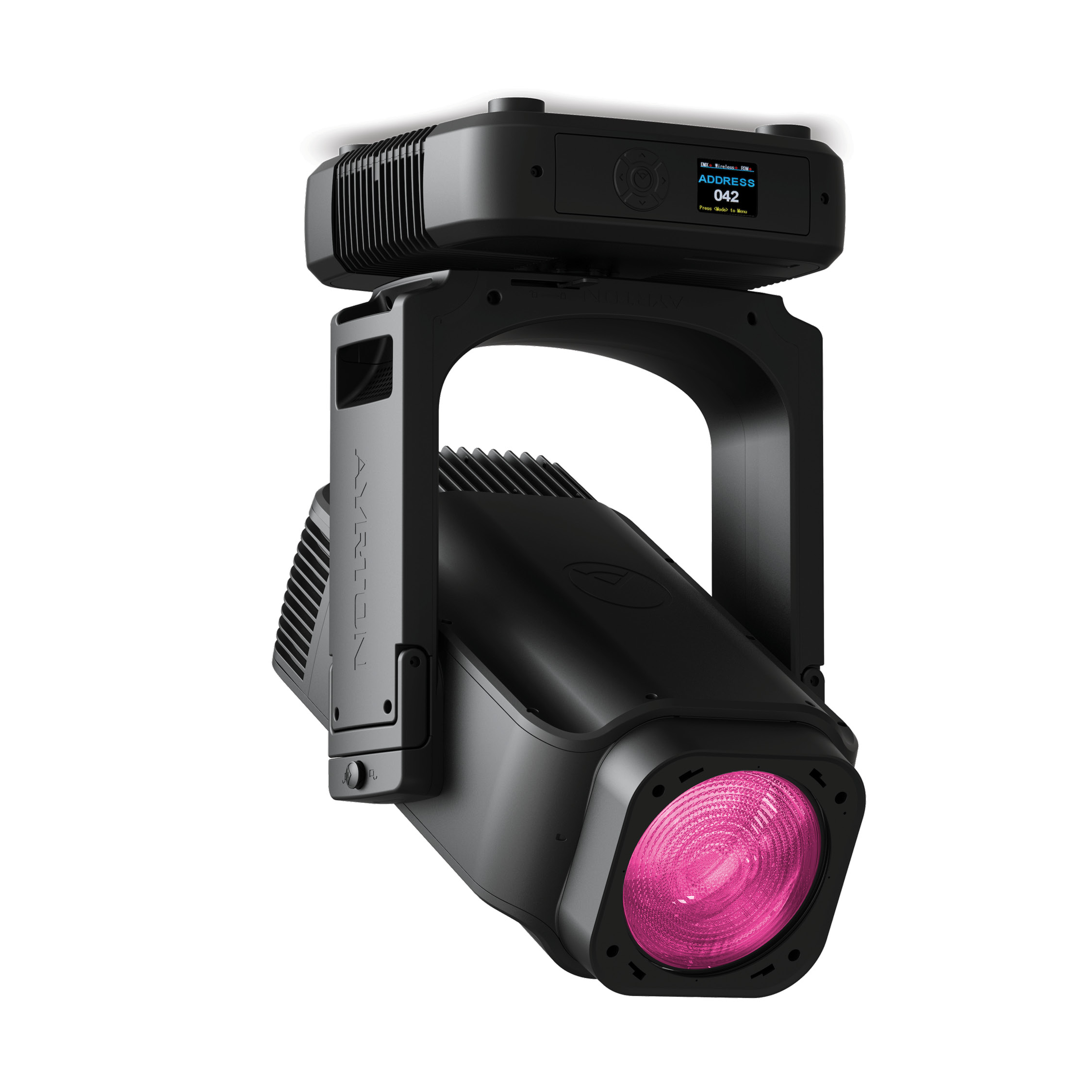

Following the launch and immediate success of the all-new Veloce Profile, Ayrton is proud to unveil Veloce Wash, the fourth luminaire in the “Ultimate” series, boasting a cutting-edge design and breathtaking performance.
Built on the advanced principle of perfect scalability, this ultra-compact luminaire pushes the boundaries of integration with a sealed 850 W high-efficiency LED module, calibrated at 6500 K, delivering a powerful 40,000-lumen output. With an optimal black body positioning, it ensures perfect light neutrality. Like all Ultimate series luminaires, Veloce Wash is a versatile tool designed to perform in all conditions—indoors, outdoors, and even in coastal environments. The use of lightweight aluminum components significantly reduces weight, achieving the best weight-to-power ratio on the market, without resorting to costly or unstable special alloys. Weighing just 39 kg, Veloce Wash is the lightest luminaire in its category. For greater creative freedom, it features continuous, unlimited pan & tilt rotation. Equipped with a 190 mm front lens, its proprietary 12-lens optical system delivers a 14:1 zoom ratio, covering a versatile range from 4 ° to 57 °.
OPTICS
• 12-element 14:1 zoom high-resolution optic system
• Zoom aperture: 4 ° to 57 °
• Fast motorised linear zoom
• Tempered anti-reflective coated lenses
• 190 mm frontal Fresnel lens
LIGHT SOURCE
• 58,000 lumens white light engine
• Total luminaire output: up to 40,000 lumens (integrating sphere measurement, Stage Fan mode)
• Colour temperature output: 6500 K
• Variable CRI: 70 to 86
• Rated life (L70): up to 40,000 hours
• Flicker-free source management suitable for TV applications and all video-recorded events
MOVEMENT
• Extremely accurate positioning
• Moving-head operated via either 8- or 16-bit resolution
• High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
• Pan and tilt automatic repositioning
• Moving-head range: infinite pan and tilt rotation
COLOURS
• Sophisticated colour mixing system providing CMY color mixing
• Variable CTO colour temperature correction
• Variable CTP
• Fixed colour wheel with seven complementary colours
GOBOS
• Indexable rotating gobo wheel with six high precision glass gobos and a scrim filter
• Progressive scrim filter to reduce light intensity at shallow projection angles
• Adjustable-speed rotating gobo in both directions
• Gobo diameter: 30 mm
• Image diameter: 18 mm
• Gobo thickness: 1.1 mm
FRAMING SYSTEM
• 4 individually positionable shutter blades on a 100% surface area in all positions
• Rotation of the shutter blade module: +/- 90 °
IRIS DIAPHRAGM
• Fast iris diaphragm with adjustable dynamic effects
• Iris range: 15% to 100% open
FROST
• 0% to 100% variable linear frost
EFFECTS
• Focusable CMY & RGB graphic animation effect-wheel with continuous rotation in both directions
• Beam ovalising filter, indexable and rotatable
DIMMER / STROBE
• Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
• Strobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
• Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
• Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
• Information menu including hour counter, temperature, software version
HARDWARE FEATURES
• Graphic LCD display for addressing and special functions settings, with flip function
• 5 menu buttons to set functions
• Excess temperature protection
• Integrated wireless CRMX TiMo RDM receiver from LumenRadio
• IP65 XLR 5 pin male and female connectors for DMX connection
• IP65 RJ45 IN / OUT connectors for ArtNet connection
• IP65 PowerCON TRUE1 male connectors for power connection
CONTROL
• DMX 512 protocol, through DMX cable or a wireless system
• DMX-RDM compatible
• Stand-alone mode and Main/Follow modes
• ArtNet & sACN protocol through Ethernet cable
• Local control panel, with IP65 LCD display
• 60 DMX channels footprint
POWER SUPPLY
• Electronic supply with active PFC
• 100 to 240 Volts – 50/60Hz
• Power: 1300 W maximum
COOLING SYSTEM
• Advanced liquid cooling system
• IP68 Self-adjusting variable speed fans for quiet operation (Auto mode)
• Selectable ventilation user modes including Super Silent Mode
• Safety protection against excess temperature
HOUSING
• Moving-head skeleton made of aluminium and steel metal plates
• Head in die-cast aluminium
• Base in die-cast aluminium
• Heatsinks in aluminium and copper
• Arms in self-extinguishing fire retardant ABS PC (V0 class)
• Four-side handles for transportation
• Four heavy-duty feet for better stability
• IP65 protection rating
• Exterior finish: black (Carbon)
INSTALLATION
• Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps
• Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire
• Safety cable attachment point
OPERATING PARAMETERS
• Operating positions: all (device on floor or fixed to a support)
• Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
• Minimum permitted ambient temperature (Ta min): -20 °C (-4 °F)
• Minimum usage distance: 4 m (13.123 ft)
COMPLIANCE
• EU (EMC & LVD):
• EMC Directive 2014/30/EU
• LVD Directive 2014/35/EU
• US (Safety & EMC)
• UL 1573
• FCC Part 15, Subpart B:2018
• Substance regulations
• RoHS
• REACH
• CP65
SIZE
• Product: 405 x 757 x 366 mm (l x h x d)
• Flight-case foam: 680 x 640 x 500 mm (l x h x d)
WEIGHT
• Product: 39 kg
PRODUCT CODES
• 012541: VELOCE WASH – ULTIMATE IP65 6 SERIES
