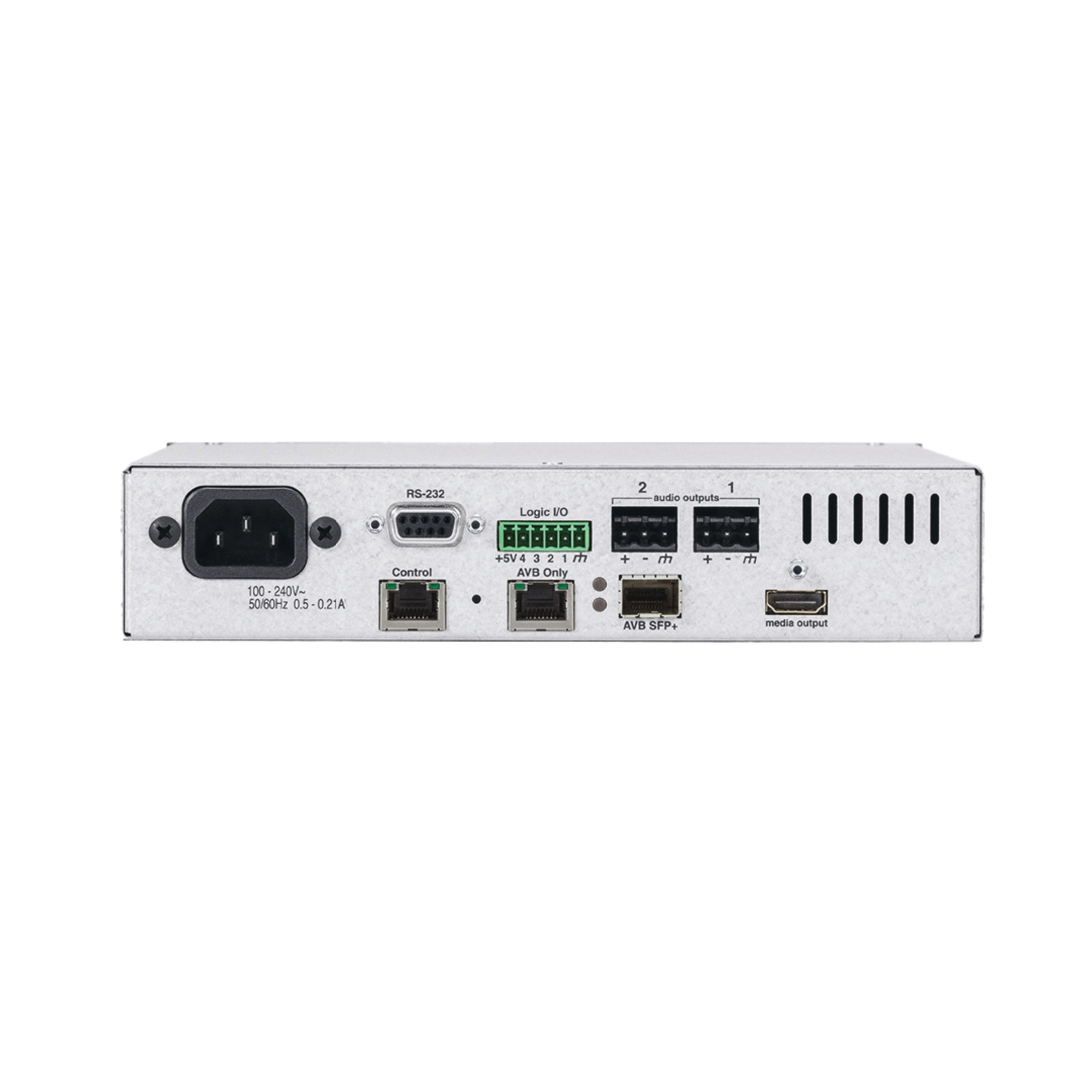

BIAMP TesiraLUX OH-1
Acting as an AVB listener, the OH-1 fully integrates digital audio and video on a single network, allowing for simplified lip sync management and end-to-end network transit latencies of less than 1.5 frames. The AVB/TSN streams can be received over1Gb or 10Gb ports while control signals are managed via a separate 1Gb Ethernet port. The OH-1 accepts 8 channels of PCM audio for embedding/de-embedding, and includes 2 mic/line level analog outputs.
GENERAL
Height: 1.75 inches (44 mm)
Width: 8.5 inches (216 mm)
Depth: 10.4 inches (264 mm)
Weight: 4 lbs (1.8 kg)
ENVIRONMENTAL
Operating Environment:
• Ambient Operating Temperature Range: 32-104° F (0–40° C)
• Humidity: 0–95%, non-condensing
• Altitude: 0-6,600 feet (0–2000 Meters) MSL
Ambient Operating Temperature Range: 32 - 104° F (0 - 40° C)
Humidity: 0-95% relative humidity (non-condensing)
Altitude: 0-6,600 ft (0-2000m) MSL
POWER
Power: Current Draw (100-240VAC 50/60Hz): 0.5-0.21A
Current Draw: (100-240VAC 50/60Hz) = 0.5-0.21A
Control: RJ-45 with Ethernet cable (Cat 5e and above)
Logic I/O:
• Logic Input Trigger: Contact Closure or 5V TTL
• LED Driver: 5V/10mA per output
• Logic Output Type:
• Open Collector; Sink 40V/300mA per output
RS-232: 115200/8-N-1
MEDIA
1 Gb: RJ-45 with Ethernet cable (Cat 5e and above)
10 Gb: 10G fiber SFP+
VIDEO
Supported Resolution: Up to 4K60
Physical Interfaces: HDMI
Colorspace: Up to Rec. 2020
Color Formats: YUV, RGB
Chroma Sampling: 4:4:4, 4:2:2, 4:2:0
Color Bit Depth: 8-bit, 10-bit, 12-bit, 16-bit
Network Transit Latency: 1.5 frames (25ms @ 60fps)
HDMI Audio Formats: 8ch PCM
AUDIO
Crosstalk:
• Channel to channel @ 1kHz = < -95dB|1kHz = 0dB gain,
• +4dBu input: < -85dB|54dB gain,
• -50dBu input: < -75dB
CERTIFIED SOLUTIONS
TAA Compliant: TAA Compliant
COMPLIANCE
Certifications:
• FCC Part 15B (USA)
• UL and C-UL (USA and Canada)
• CE Marked (Europe)
• RoHS Directive (Europe)
