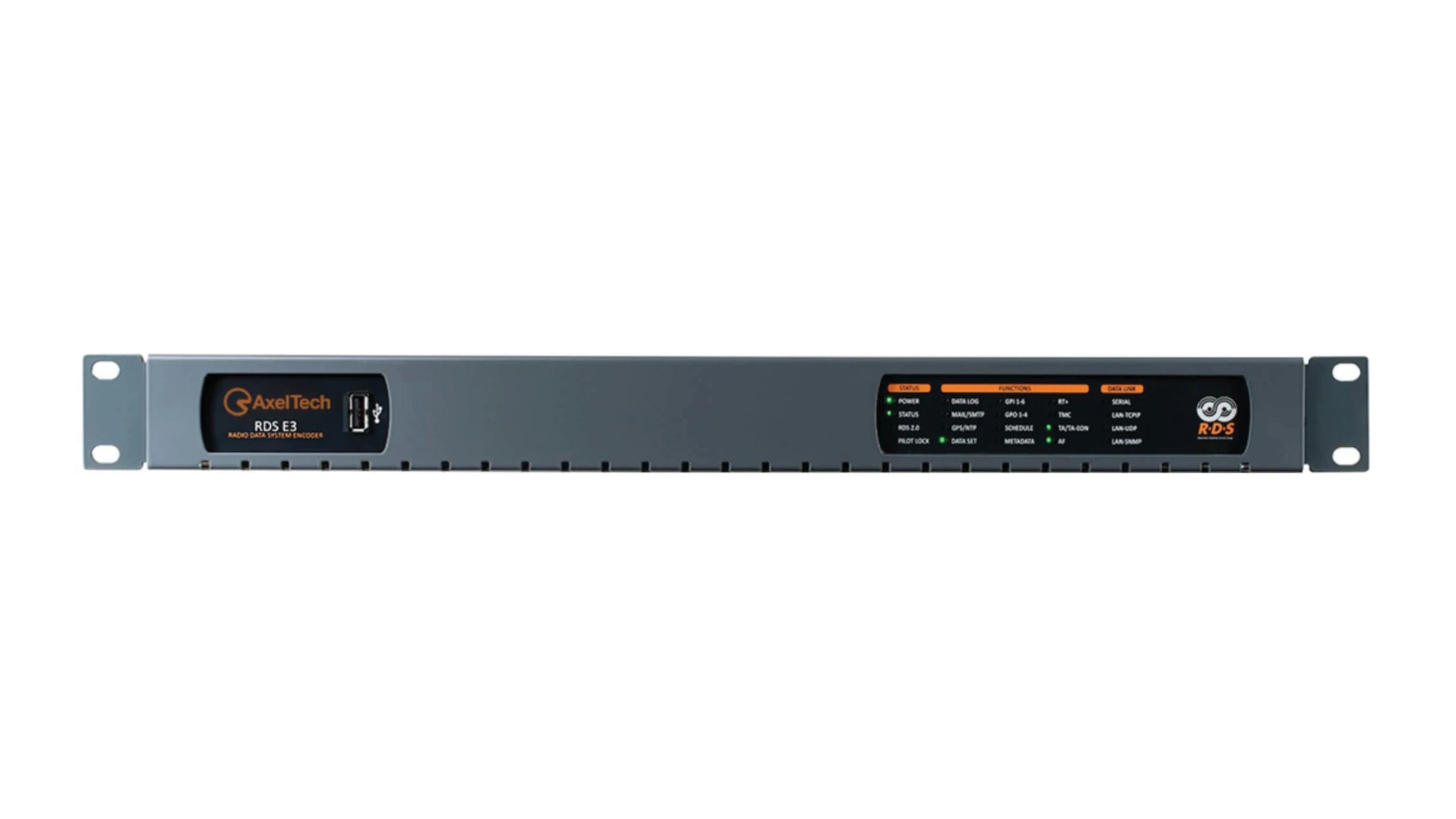

AxelTech RDS E3/E5
RDS E3 and RDS E5 are static/dynamic RDS Encoders supporting all the services and features requested by an advanced user.
RDS E3 and RDS E5 support the most advanced RDS dynamic services, including TMC, ODA, IH, TDC, EWS, Radio Text and Radio Text plus.
RDS E3 and RDS E5 manage up to 8 complete Data Set, each one with 1 Main PS and 10 EON. To assure the best flexibility, any Dataset can be managed via Standard Mode, using UECP commands or via Extended Mode using GPIOs, SNMP commands, REST API commands or ASCII commands.
In addition to standard CENELEC NRSC methods, RDS programming has been enriched with larger PS and RT sets (that are also available in dynamic mode).
RDS E3 and RDS E5 can interface with various Automation Systems and they offer an ASCII protocol for broadcast song/artist information. In case of alarms, they support SNMP alerting for NMS.
General
• Main Supply 90--260Vac 50/60Hz. 15W;
• Green device - only 15W;

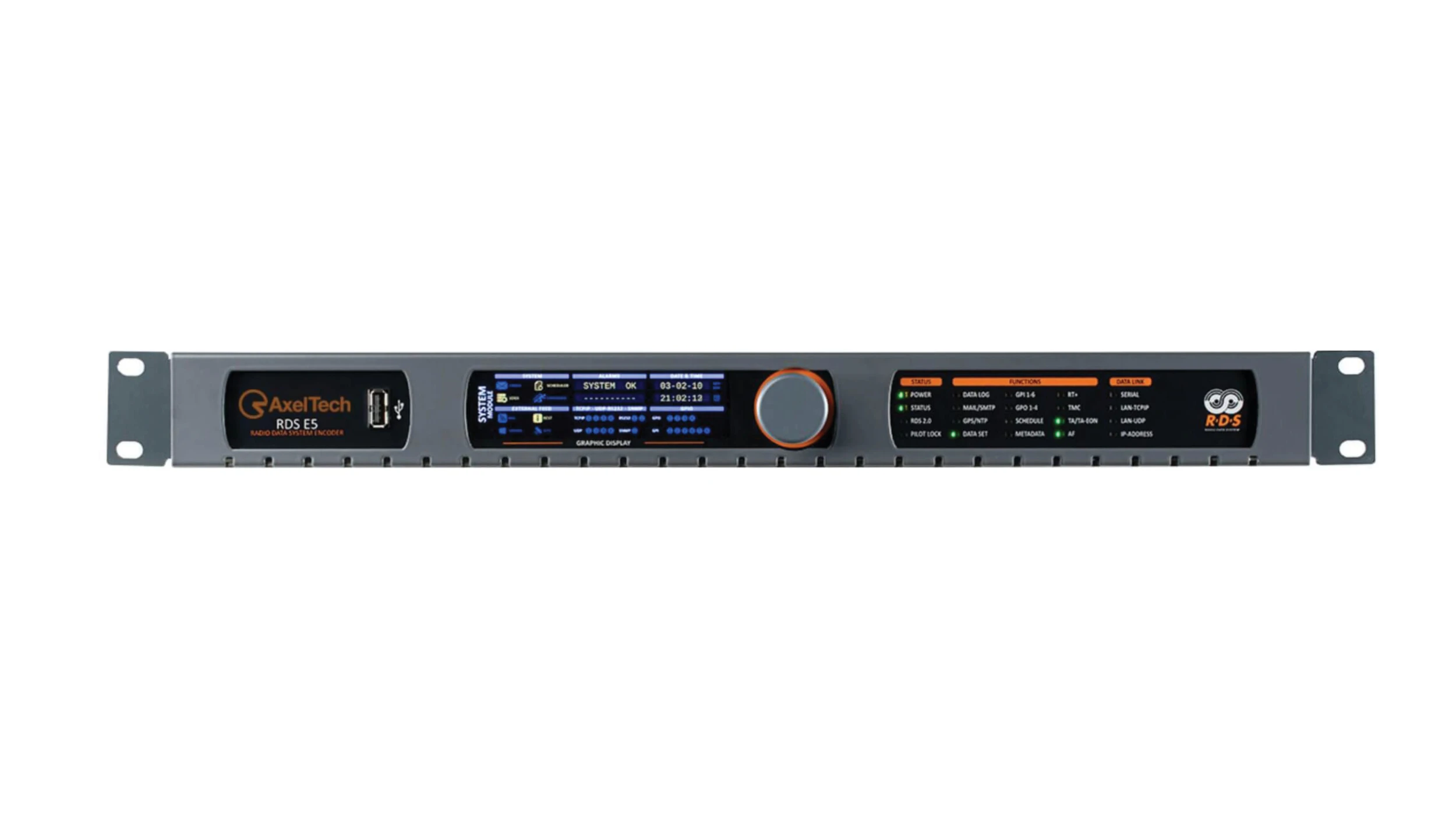

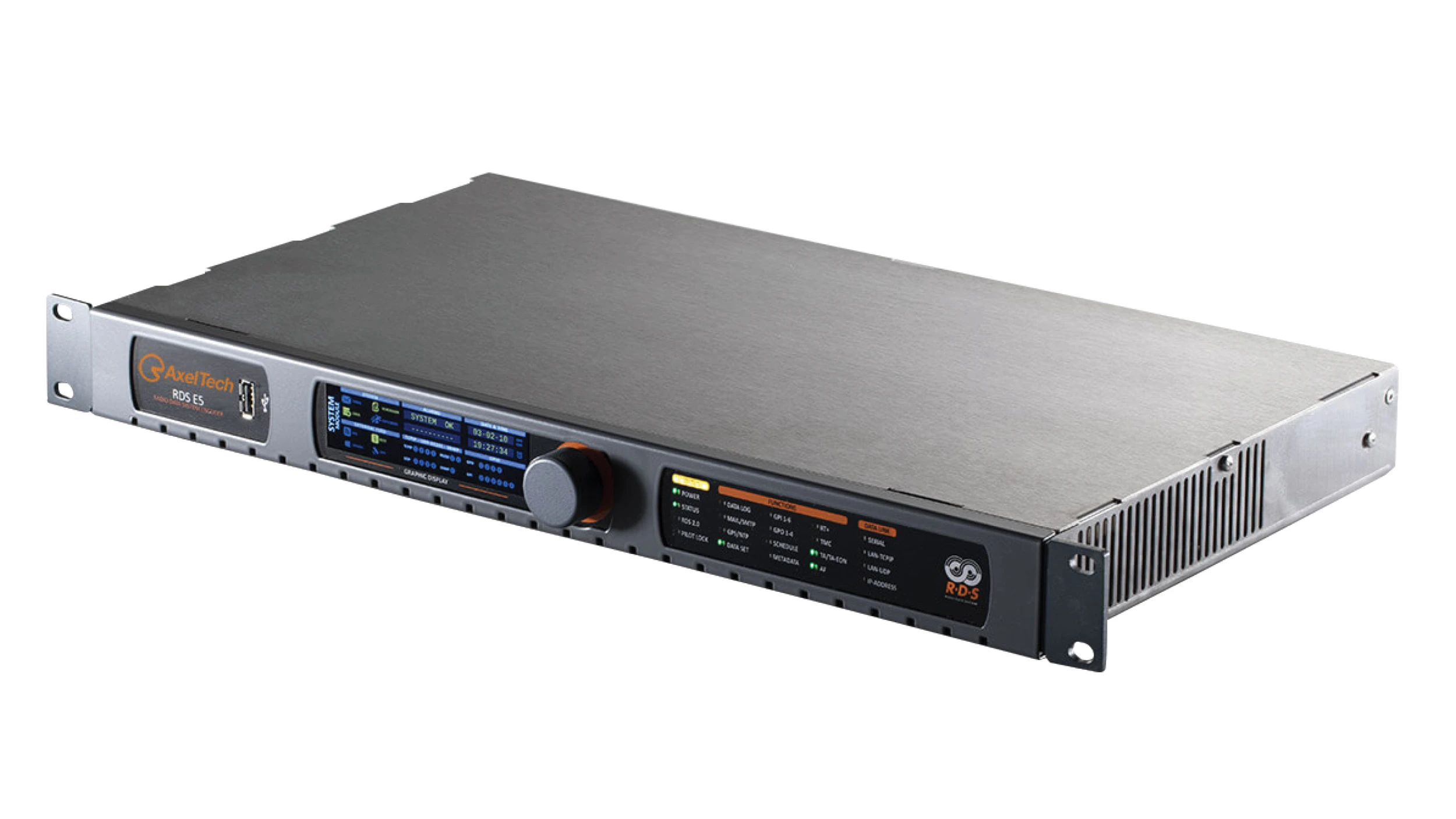

• Full Colour Graphic display 480x128 (only RDS RDS E5);
• Status led panel with 40 leds;
• Rack 1u 19” - Inox steel;
• Redundant PSU (available as an option);
• High immunity to strong RF fields, designed to be installed in high power TX sites;
• Fully Digital – No trimmer
Inputs & Outputs Sections
• Double MPX+RDS output with digital level setting;
• RDS output;
• Bypass HW on RDS+MPX Outputs (MPX to Out 1&2);
• 1 MPX input (wide band);
• 1 19kHz Sync imput to synchronize internal RDS.
Encoder RDS Section
• RDS encoder fully compliant with UECP EBU SPB490 v7.05, CENELEC (Europa) and NRSC (America);
• Fully support for all RDS services, Static and Dynamic services;
• UEPC Ports (2 Serials, 4 TCPIP, 4 UDP);
• n.8 Data Set;
• n.10 EON + Main PS for each Data Set;
• Integrated RDS decoder;
• Tuner FM with RDS decoder (as an option);
• Dataset switch managed by UECP/SNMP/REST/HTTP/ASCII PARSER/TXT FILE/GPI;
• Easy to interface to any kind of automation system (UECP/SNMP/REST/HTTP/ASCII PARSER/TXT FILE);
• The RDS can autonomously get data from the Radio Automation System (PS/RT/RT+/TA/MS);
• Easy RDS page fast setup;
• RDS 2.0 Ready.
GUI & Monitoring
• Fully programmable by Web GUI interface, all the browsers are supported;
• Simple and intuitive GUI, supported by all devices (PC, notebook, tablet, smartphone, etc.);
• Easy and configurable graphical interface;
• Multi user web GUI;
• Map with device geolocation (RX sat or fixed coordinates are required);
• Web GUI with info bubbles;
• Monitoring FM Tuner (as an option);
• RDS Groups data analyser;
• GUI with led meter bars.
Communications & Management
• Ethernet/USB/RS232/GPIO connections;
• Easy WiFi Access - Hot spot WiFi USB to connect directly a wireless device to RDS E3 and RDS E5;
• SNMP V2c;
• Possibility to set up to 3 NTP Servers (V1, V2, V3, V4);
• Possibility to send email to 4 receivers and to set 3 different SMPT servers;
• IPV4 and IPV6 support (3 addresses IPV4 and 3 addresses IPV6);
• N°2 RS232 for UECP commands;
• 6 GPI and 4 Relay Out (all GPIO are fully programmable by the GUI);
• HTTP, FTP, SNMP, SMTP, UDP, TCP support;
• Alarms via : TRAP (SNMP), email (SMTP), GPO, HTTP;
• External GPS support (Time, Date and Geolocation);
• uSD Card for clone function, for maintenance and easy replace of a faulty unit;
• Import and export configurations function;
• PRESET, with load/save/import /export functions;
• Logs 24/7 with export function;
• 6 levels of right access managment;
• Easy configuration page setup with info connection diagrams;
• REST API available to manage the device;
• ASCII PARSER interface for easy command line settings;
• SAMBA SHARE function to connect and get data from an external PC;
• Multi-user contemporary access.
