Analog Left & Right Input
Connector: Balanced on 2 XLR – EMI Suppressed
Input Impedance: 10Kohm
Nominal Input Level (Sensitivity): Software Adjustable from -12dBu to + 13,0 dBu (0,1dB step)
Nominal Input Level: -21,0dBu ÷ +24,0dBu
Max Input Level (clipping point): Selectable +15,0dBu or +24,0dBu
A/D conversion: CS4272, 24 bit / 48 Khz
Input CMRR: >60dB (20Hz-20kHz)

Digital Input
Connector: Balanced on 1 XLR – EMI Suppressed
Input Impedance: 110Ω
Standard: AES3
Audio Sample Rate: 32/44.1/48/96/192KHz
Adjustable Nominal Input Level (Sensitivity): From -25,0dBFS to -0,2dBFS (0,1dB step)Nominal Input Level: -36dBFS ÷ 0,0dBFS
Dynamic Range (Converter Values): 124dB (32KHz) – 126dB (44,1KHz) 126dB(48KHz) – 122dB (96KHz)
Resolution: 24 bit

MPX Input – MPX - AUX1/AUX2
Connector: Unbalanced on 2 BNC – EMI Suppressed
Input Impedance: 50K
Adjustable Nominal Input Level (Sensitivity): Software Adjustable -9dBm to +15,0dBm
Range of Level: -21,0dBu ÷ +24,0dBu
Max Input Level (clipping point): Selectable +5,0dBu or +18,0dBu
A/D Conversion: Texas PCM4202

MPX Output - MPX - MPX1/MPX2
Connector: Unbalanced on 2 BNC – EMI Suppressed
Output Impedance: 10 Ω
Load Impedance: 600 Ω or greater
Maximum Load Capacitance: 5nF
D/A Conversion: Texas PCM 1796
Composite Output Level: -0,0dBm to +15,0 dBm (0,1 dBm step)
S/N: ≥ 85dB
THD: ≤ 0.01%
Separation: ≥ 70dB

Backup Player
Support: On Micro SD CARD (max 64GB)
Supported formats: MP3, WAV
Supported Sample Rates: 32,44.1,48,64,96 KHz

MPX & RDS Signal
Pilot Frequency: 19 KHz +/- 1Hz
Pilot Injection: Adj from -25,0dB a -15,5dB (0,1 dB step); 6 to 18% of total deviation
Pilot Stability: ±10 ppm (-10 to +55°C)
Pilot Distortion: 0,05% (typical)
Pilot Distortion + Noise: 0,068% (on 100KHz band)
Composite out THD: 0,01% (typical on the whole band)
Stereo Separation: >70 dB (typical on the whole band)
Linear Crosstalk Main to Sub / Sub to Main: >70 dB (minimum)
Digital filtering / band: 30 Hz to 15 kHz (-0,1dB), 17 kHz (-70 dB), 19 kHz (-100 dB)
57 kHz (RDS/RBDS) Protection: Better than 51 dB
Pre-emphasis: Off, 50uS, 75uS (+/-0,1dB)
Freq Response: ±0,3 dB (30Hz-15kHz)
Operation: Mono / Stereo
MPX/RDS Output: Adj from -10,0 dB to 15,0 dB (0,1 dB step)
Signal/Noise Ratio: ≥ 85 dB (on 100 kHz band)
Carrier Suppression: > 85 dB

Digital Output MPX
Connectors: Balanced on 1 XLR – EMI Suppression
Input impedance: 110 Ω
Format: AES192
Sample rate: 192 KHz
Output level adjustment: From 0,0 dBFs to –30,0 dBFs (0,1 dB steps)

System
GPIO Inputs/Outputs: 6 GPI / 4 GPO
Communication Port: 2xRS232, 3xUSB, 1xLAN
Synchronization: Ext(Pilot Mpx)/Int/ Auto
Synchronization Monitoring: Yes
RDS Level adjustment: Digitally controlled
Phase adjustment: Yes, 0 ÷ 359.9°
Separate outputs for RDS+MPX and for RDS only: Yes
Command to activate the RDS SCA: Yes
Side Chain Mode, Loop through mode, Bypass feature: Yes
RDS Subcarrier: 100% Digitally Generated Shape
CENELEC – EN50067 compliant –: Yes
Accurate Clock Time (CT) Sync with Internet Connection: Yes
Remote TA actuation for Traffic Announcements: Yes
GPS module for automatic synchronization of the built-in Real Time Clock (RTC): Optional (USB External)
RDS decoder for rebroadcasting RDS Data: Yes
Firmware can be upgraded on the field: Yes

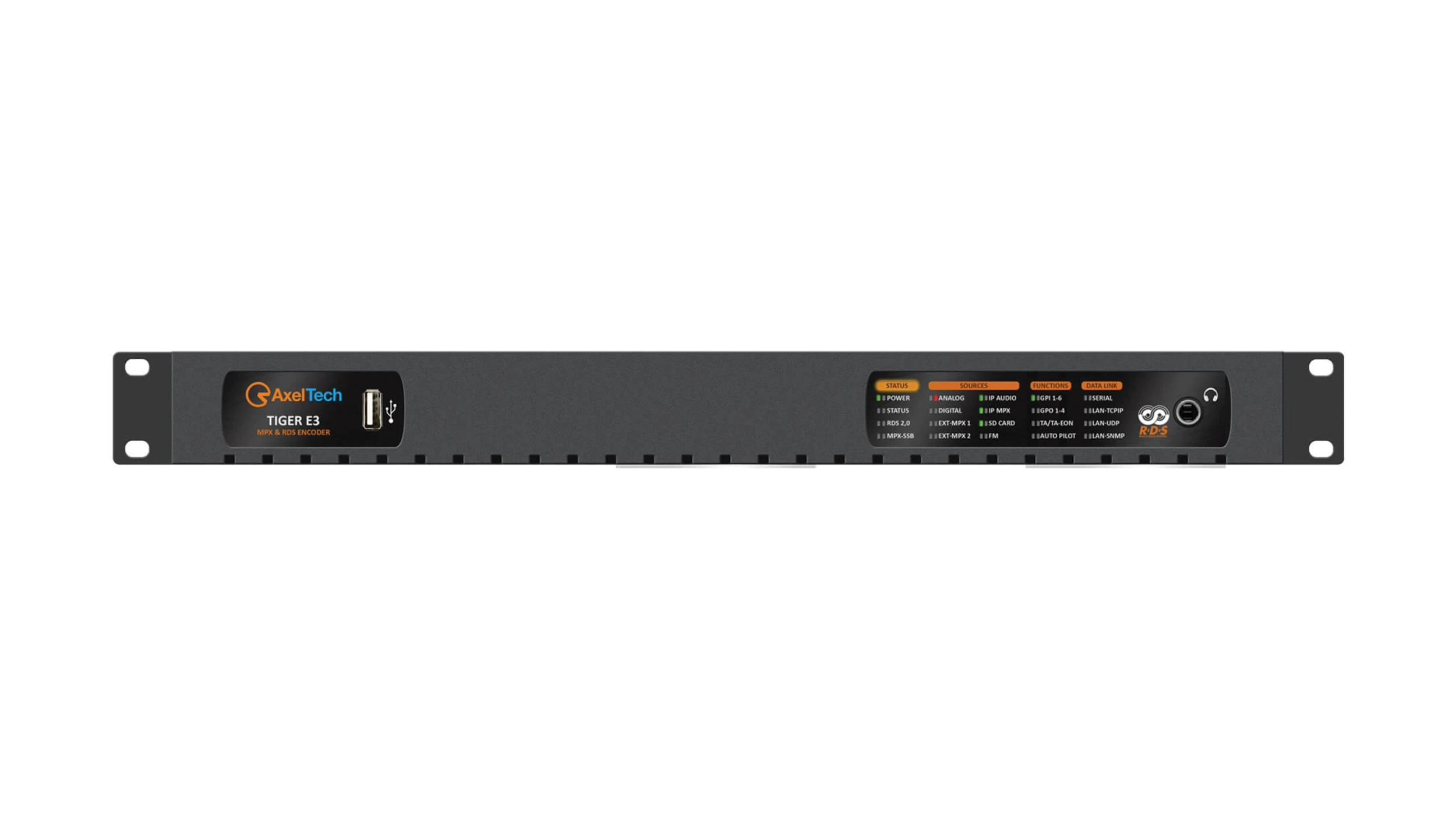

Front-panel Colour TFT Display: No (Tiger E3) Yes (Tiger E5)
Data may be entered on-site with Front-panel knob: No (Tiger E3) Yes (Tiger E5)
Front Panel Leds: 40
Operating Temperature: 0°C ÷ 50°C

RDS Features
Group supported: All
Group Sequence: Configurable
PS: 8 DSN x MAIN+10 PSN
PI: 8 DSN x MAIN+10 PSN
PIN & PTY: RDS/RBDS
AF Method A: up to 1024 (64 lists)
AF Method B: up to 1024 (64 lists)
RT: Yes, 32 messages
RT rate adjustment: Group Sequence
RT+ for songs and content tagging: Yes
TP: Yes
TA Control: Command, Software, GPI
PTYN: Yes
EON: 10 PSN
CT: Yes
TMC, EWS, IH, TDC: Yes
Free Format Groups (FFG): Yes
Open Data Application (ODA): Yes
PS Scrolling: Yes
Scrolling by characters, by word, auto centre, truncate long words: Yes (Characters – from 1 up to 8)

Communication
Connection with Automation Software: Yes
Network Connectivity: 4 TCP ports / 4 UDP / 1 SNMP
Configuration Software: Web Server, FTP
Password Protection: Yes
ASCII Protocol: Configuration Messages
REST Command: Yes
Alert notifications on user-defined events via SNMP traps or E-mails: Yes
Embedded SNMP agent permitting active management tasks: Yes
Supported Network Protocols: HTTP, SMTP, UDP, TCP, NTP, FTP
UECP Protocol: EBU SPB490 Ver.7.05
PI Calculator: Yes
RDS 2.0 Ready: Yes

PSU
Power Supply: 90-260 Vac / 47-63 Hz 15W

Dimensions
Dimensions (W; H; D): 485 x 44 x 240 mm
Weight: < 3Kg
