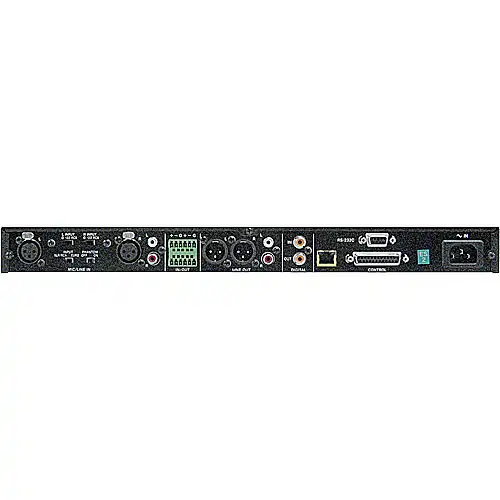

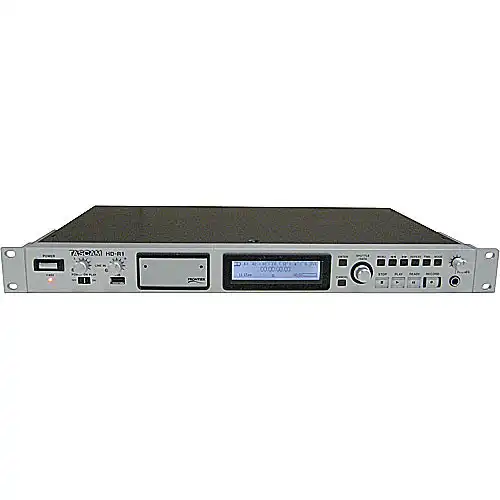

You can control the HD-R1 from the intuitive front-panel interface, or you can use the RS-232, Parallel, or RJ45 connectors on the rear to control the unit remotely. Signal I/O options include analog RCA, XLR, and Euroblock connectors, and digital coaxial S/PDIF as well.

The unit has built-in mic preamps with a 20dB pad that also provide phantom power, so you can plug a microphone directly into the recorder. A front-panel 1/4" headphone jack with a volume control provides convenient monitoring.

Rack mountable
Records to standard CompactFlash cards
USB host interface lets you use USB flash cards
Records PCM or MP3 files
Balanced mic/line XLR I/O connectors with 20dB pad and phantom power
RCA and Euroblock analog I/O connectors
S/PDIF digital coaxial I/O connectors
RS-232, RJ45, and Parallel connectors for remote control
Front-panel headphone jack with volume control

TASCAM HD-R1 Specs
Type Rack Mount
Recording/Reading Methods CompactFlash Cards or USB Flash Cards
Recording Bit Rate 16, 24-bit
Sampling Frequency 44.1, 48, 88.2, and 96kHz
Number of Channels 2
Connectors 2 x XLR Inputs (L/R)
2 x XLR Outputs (L/R)
1 x Stereo RCA Input (L/R)
1 x Stereo RCA Output (L/R)
1 x Euroblock I/O Connector
1 x Digital Coaxial Input
1 x Digital Coaxial Output
1 x RJ45 Connector
1 x RS-232 Connector
1 x D-Sub 25-Pin Connector
1 x USB Port (Front)
1 x 1/4" Headphone Output (Front)
1 x Power Input
Dimensions Not Specified by Manufacturer
Weight Not Specified by Manufacturer
Packaging Info
Box Dimensions (LxWxH) 21.6 x 15.6 x 5.6"
