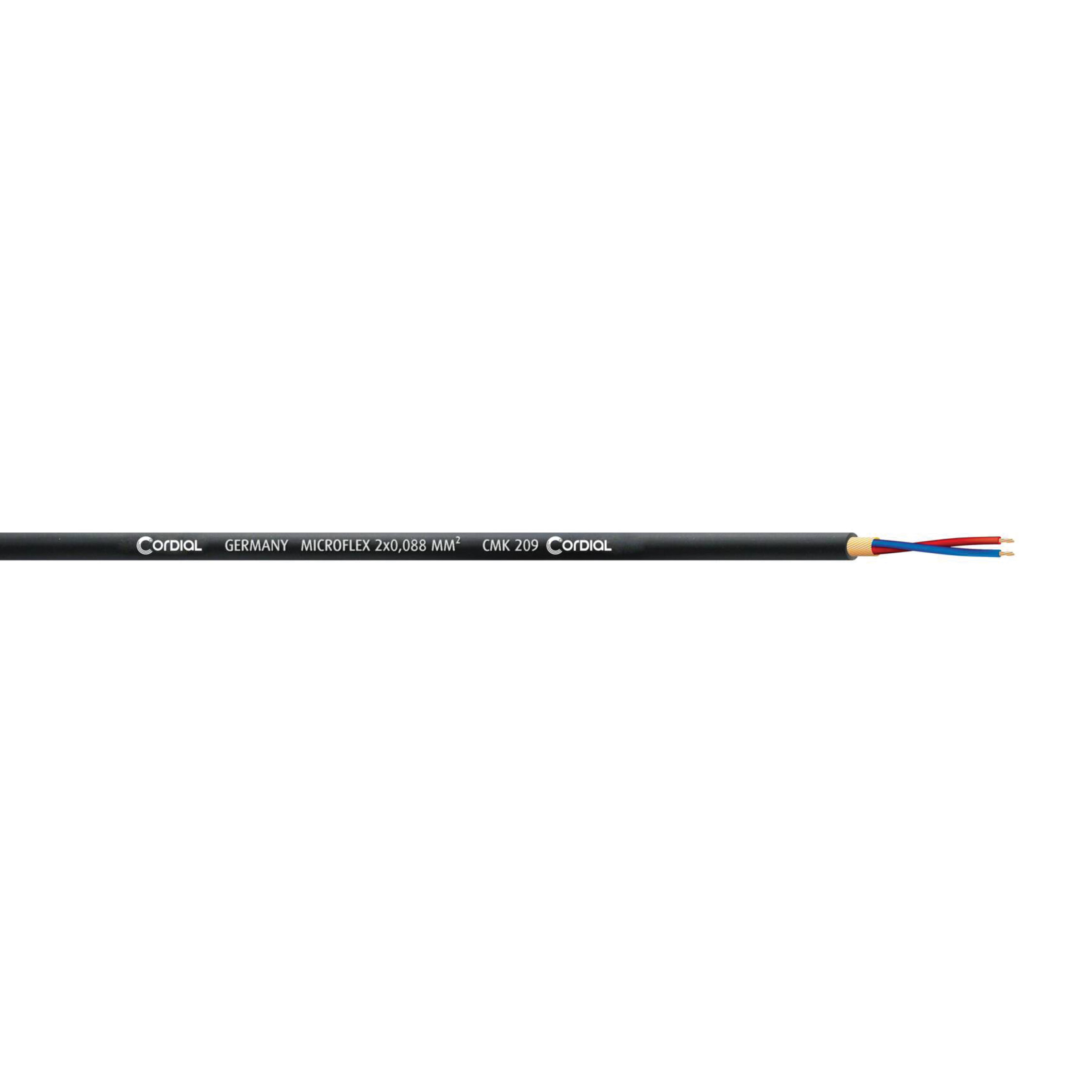

Cordial CMK 209 BLACK 500
The CMK 209 is an ultra-thin, highly flexible miniature mic cable with a thin cross-section. Two Kevlar Aramid fiber strands are integrated in the cable, adding tensile strength and enhancing torsional stiffness. Suitable for hanging mics (e.g. choir miking, lecterns) or the laying through narrow cable ducts. Can also be used as a spare cable for clip-on mics.
Conductor area: 0.088 mm²
Composition of cores: 2 cores twinned, Reinforced by two Aramid ("Kevlar") threads
AWG: AWG 28
Shielding: spiral wound copper wire screen
Composition of conductor: 7 x 0.127 mm
Material: bare copper
Conductor isolation: PP
Conductor resistance: < 217 Ω / km
Capacity cond.-cond. (pF/m): 54 pF / m ± 8 %
Category: Microphone
weight bulk cable: 13 g/m
diameter: 3 mm
test voltage: 500 V eff.
