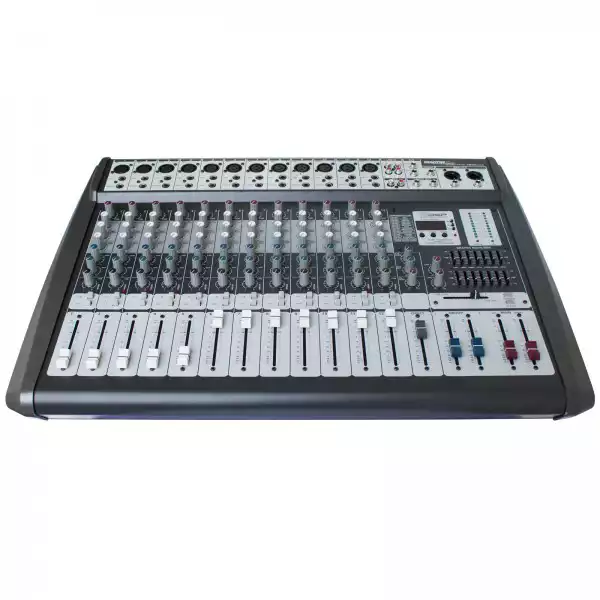

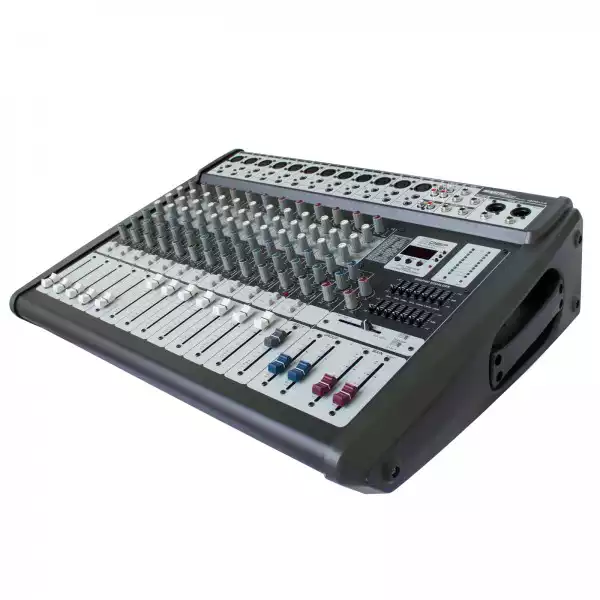

Martin Wisman PMA 1200 MK2

Professional Power Mixer 12 Channels, 2X 600W, 4Ω with power

• Ultra low-noise 12-channel mixer: 12 mono, pan
• +48 V Phantom Power
• 3-band EQ for each channel
• Aux / Effect Output
• Aux Send / Return
• Effects - DSP 256
• 2x7 band graphic EQ
• 2TR In / Out
• Master Stereo and Group
• Ten stereo LED metering
• Output Power: 2x600W / 4 Ohm
• Dimensions: 657 x 450 x 160 mm

• 12 Mono Input Channels with sliver plated XLRs and balanced Line Inputs
• Ultra-low noise discrete Mic Preamps with +48 V Phantom Power
• Ultra-musical 3-band EQ on all channels
• Peak LEDs all Mono Channels
• 1 Aux Send per channel for external effects
• Built in digital multi effect (16 DSP OR 256 DSP)
• 2-Track Inputs assignable to Master Mix Output
• Highly accurate 10 segment Bargraph Meters
• 1 Stereo master output and 1 Stereo Group output
• (Separate Master Mix Outputs)

Specifications

Mono Inputs

Mic Input: electronically balanced, discrete input configuration
Bandwidth: 10 Hz to 60 kHz ± 3 dB
Distortion (THD & N): 0.01% at +4 dBu, 1 kHz, Bandwidth 80 kHz

Mic E.I.N (22 Hz - 22 kHz)

-129.5 dBu, 150 Ohm source
-117.3 dBqp, 150 Ohm source
-132.0 dBu, input shorted
-122.0 dBqp, input shorted

TRIM range: +10dB to +60dB

Line Input: electronically balanced
Bandwidth 10 Hz to 60 kHz ± 3 dB
Distortion (THD&N): 0.01% at +4 dBu, 1 kHz, Bandwidth 80 kHz
Line level range: +10 dBu to -40 dBu

Equalization
Hi Shelving: 12 kHz +/-15 dB
Mid Range: 2.5 kHz +/-15 dB
Lo Shelving: 80 Hz +/-15 dB

Master Mix section
Max Output: +22 dBu balanced
Aux Send Max Out: +22 dBu unbalanced
Control Room Out: +22 dBu unbalanced
Signal-To-Noise Ratio: 112 dB, all channels at Unity Gain

Power supply
Mains Voltages 240 V AC, 50 Hz,
