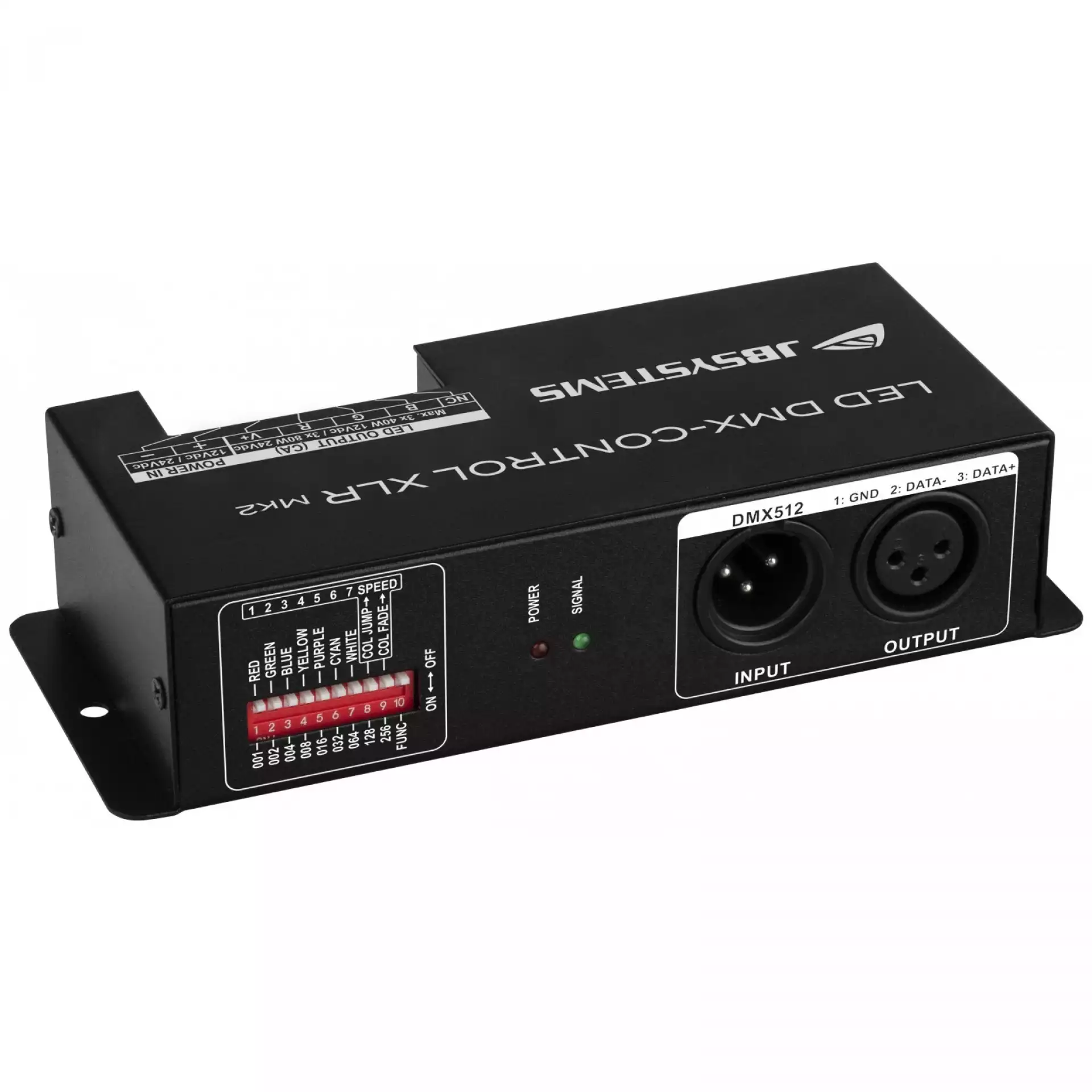

JBSYSTEMS LED DMX CONTROL XLR Mk2
Garantujemo najnižu cenu!
Extremely versatile DMX LED-controller for all kinds of passive 12Vdc / 24Vdc LED-projectors like led strips.

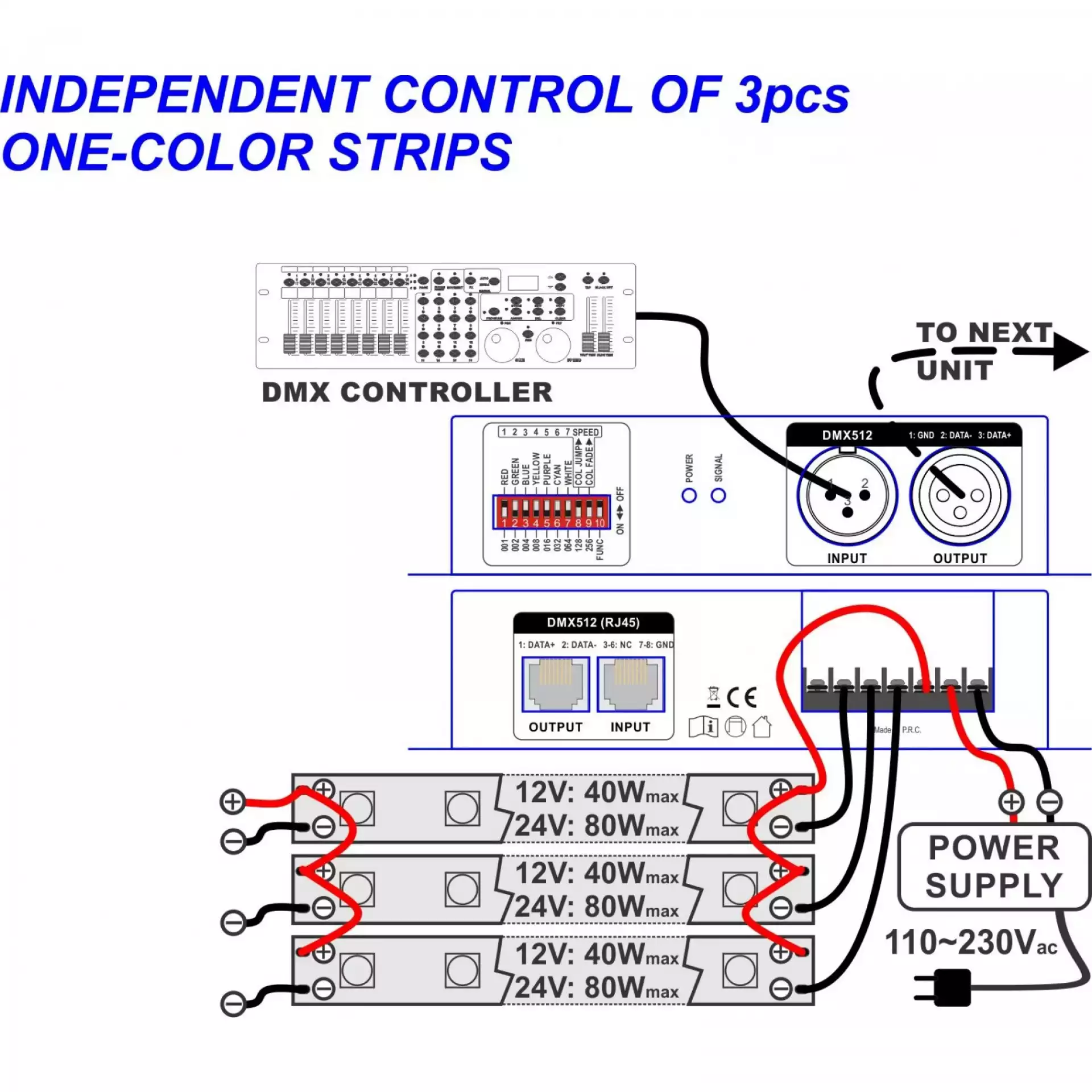

Can be used for both RGB and 1color led strips.
PWM technology for smooth and flicker-free dimming from 0% to 100%

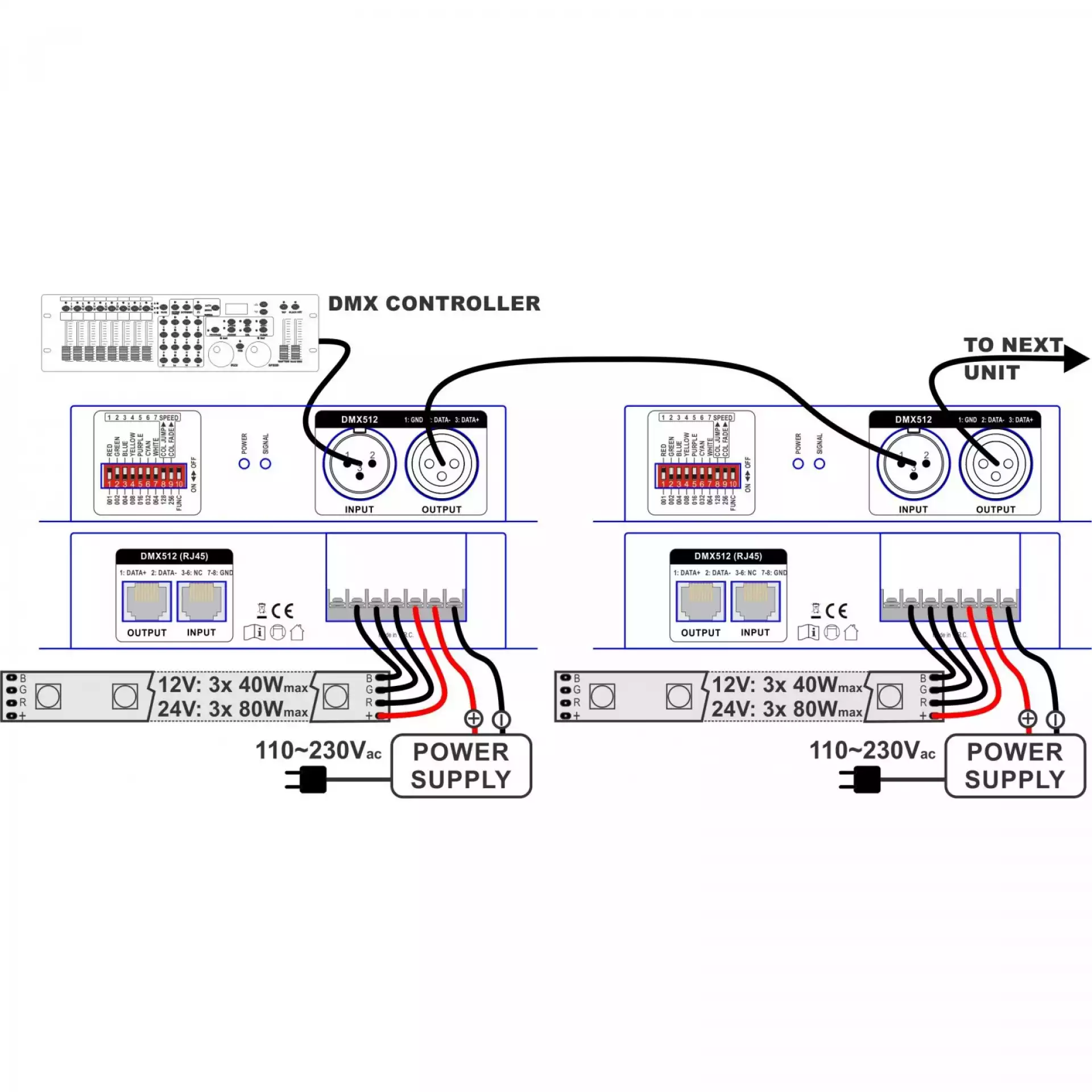

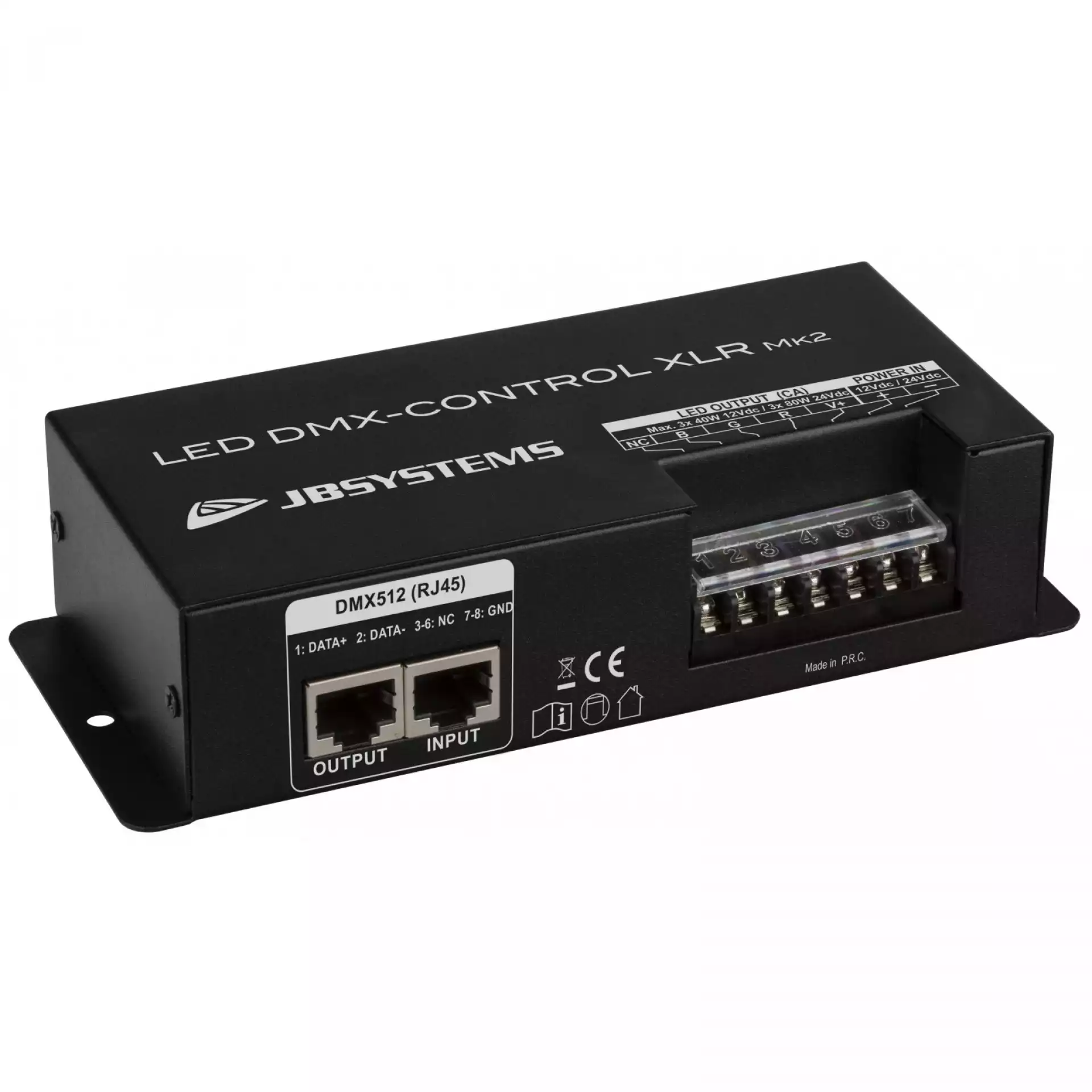

Easy electrical installation: equipped with XLR and RJ45 DMX-in/out + wire terminal LED-outputs
Max output: 40W/ch = 120W @ 12Vdc or 80W/ch = 240W @ 24Vdc
LED-output power can always be increased using our [LED REPEATER] boosters.
All functionscan be controlled:
Directly on the on the controller (DIP switches)
Using an optional LEDCON-02 Mk2 (also with sound mode)
Using any standard DMX-controller
Different standalone working modes:
Fixed color mode: Instant access to 7 pre-programmed colors
Auto chase mode: 7 color chase with 7 different speeds.
Fade chase mode: 7 colors fading smoothly at 7 different speeds.
4 DMX channels needed: Ch1=red, Ch2=green, Ch3=Blue, Ch4=Dimmer/strobe.
Enclosure prepared for easy installing against the wall.
Perfect for use in LED installations for homes, shops, …
No fan cooling: completely silent!
General : Dimensions (cm) 16.5 x 6.6 x 4.2
General : Weight (kg) 0.3
General : Powerinput 24Vdc, 12Vdc
General : Energy Label No
General : Color black
General : Display No
General : IP rating indoor
Control : Modes DMX
Control : Protocol DMX
Control : programmable No
Control : upgradable software No
Control : minimum DMX channels N/A
Control : maximum DMX channels 4
Light : max. refresh rate (kHz) 0.5
Connections : input 3 pin XLR
Connections : output 3 pin XLR
Brand JB SYSTEMS
EANCode 5420025654012
