The unit records directly to SD and SDHC cards. Additionally, you can export your tracks to an external computer via the unit's USB port. A power supply, 2 GB SD card, and a USB cable are included.

12 Mono/Stereo Selectable Faders
The recorder has 12 selectable tracks between MONO or STEREO. Use a STEREO track for recording synthesizer, or set the track to MONO when recording guitar or vocal. Not only that, you can create independent settings for each track (set #9 to #12 STEREO, then set #13 to #22 MONO)
19 Faders Eliminates Layer Structuring
The device features 19 total faders, one of which is assigned as the master fader

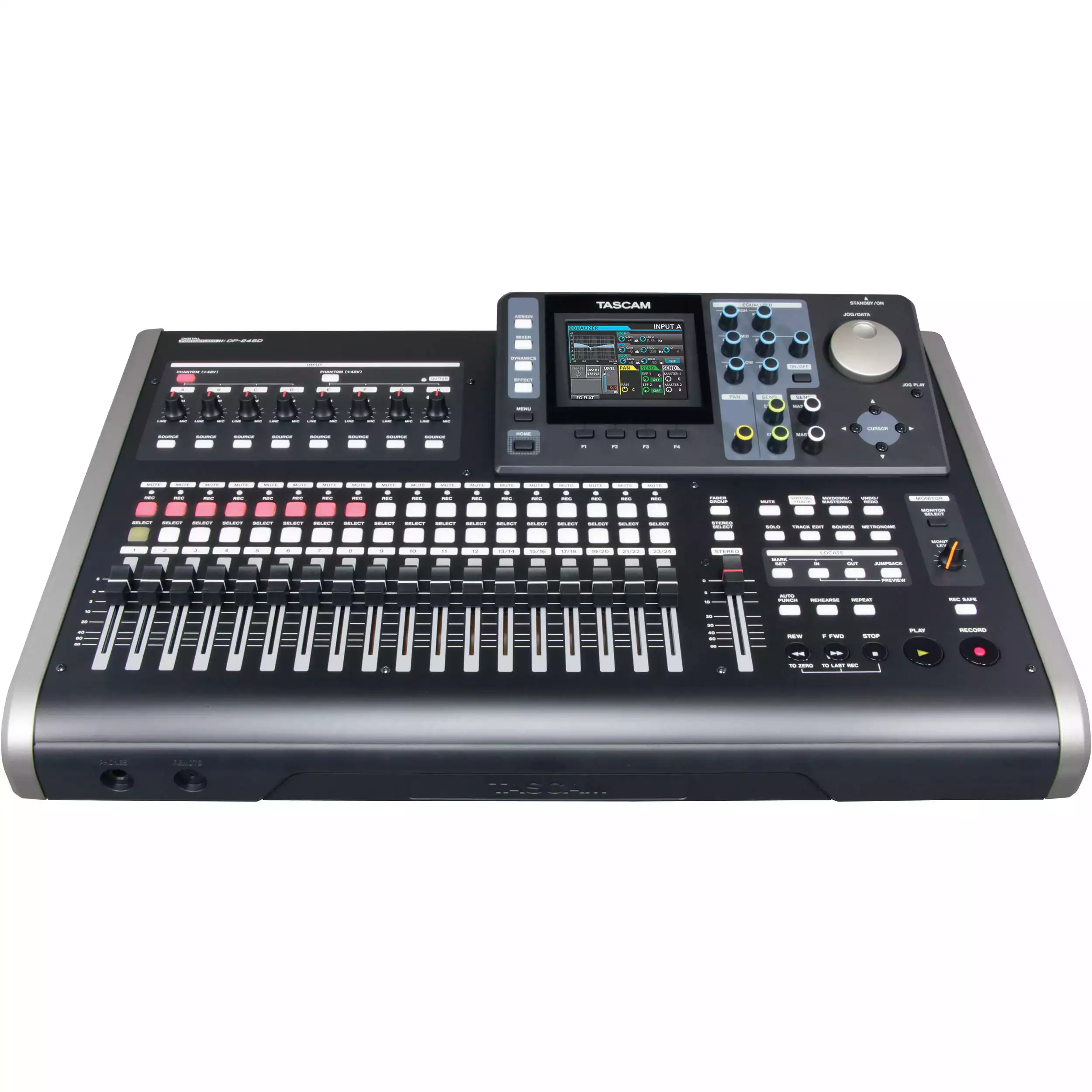

3.5" Color LCD and Self-Illuminated Buttons
The DP-24SD has a 3.5" LCD screen and select self-illuminated buttons, to view your entire creative process. Some of the illuminated buttons include SOURCE, SELECT, REC, MUTE
12 Rotary Knobs
The DP-24SD has employed rotary knobs to control qualities such as EQ, Effect Send and other related features

Records to SD/SDHC Media
The DP-24SD uses SD/SDHC media. These cards provide secure shock resistance due to the absence of any moving parts. The file format in the DP-24SD is FAT 16 or 32. You can transfer the recorded files to your computer via USB

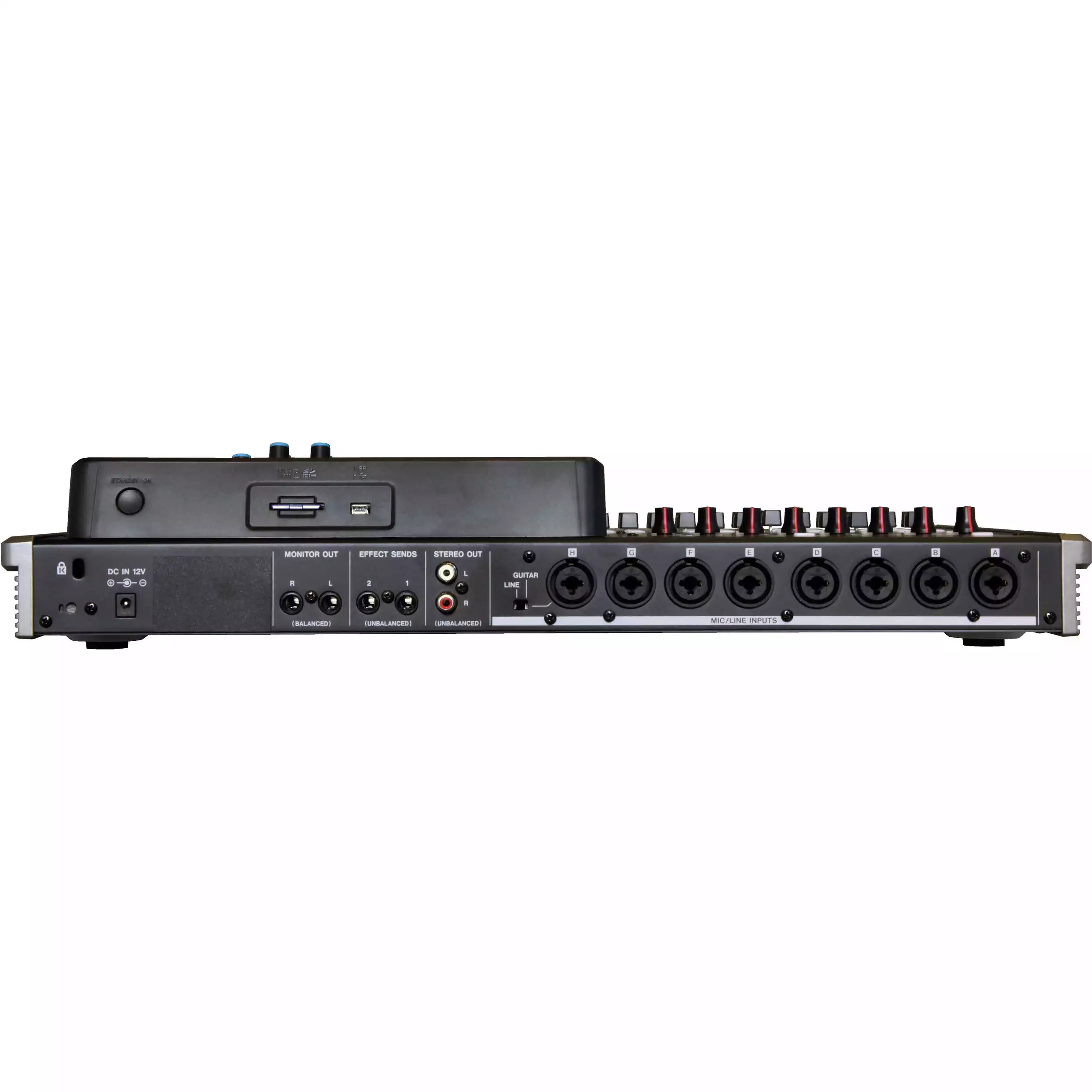

8 XLR/TRS Inputs, 8 Channel Recording,
The DP-24SD has 8 XLR/TRS combo inputs. You can record up to eight sources at one time

3-Band EQ
Input A-H and each track are equipped with 3-band EQ. The equalizer for each track and each input are independent from other effects. Record with EQ for each individual track

8 Dynamic Effects, Guitar Effects, and Mix-Down Effects
Use up to 8 dynamics effects at once, one for each input source. For example, utilize the built-in compressor effect for your bass, guitar and drum tracks. In addition, the DP-24SD has multiple guitar and mixing effects

Built-In Digital Mastering
The unit is equipped with mastering effects for finished-sounding mixes. There is no need for computers when recording and mixing. The mastering effects section includes a Multi-Band Compressor, EQ, Noise-Shaping Dither, and a Normalize Effects. You can create a 2-track master file for transfer to your computer and delivering to CD mastering or sharing online

Headphone Amplifier
The headphone amplifier provides ample monitoring in loud environments such as a rehearsal studios or live performance
Track bounce function
Virtual tracks (8 virtual tracks per one track)
Locate mark up to 99 at one song
Chromatic tuner

Tascam DP-24SD Specs
Form Factor Rackmount
Number of Tracks 24
Maximum Simultaneous Tracks 24 x Recording
Maximum Sampling Rate 48 kHz / 24-Bit
Connectivity
Analog Audio I/O 1 x Stereo RCA Coaxial Unbalanced Output
2 x 1/4" TRS Balanced Monitor Output
2 x 1/4" TRS Headphone Output
2 x 1/4" TS Unbalanced FX Send
7 x Combo XLR-1/4" TRS Balanced Mic/Line Input
1 x Combo XLR-1/4" TRS Balanced/Unbalanced Line/Hi-Z Input
USB (Non-Host) 1 x Mini-USB (USB 2.0, External Storage)
Other I/O 1 x 2.5 mm TRS Remote Input
Performance
Frequency Response 20 Hz to 20 kHz ±1 dB
Maximum Input Level XLR Inputs:
+2 dBu
1/4" Inputs:
+20 dBu
Maximum Output Level FX Send:
+6 dBV
Monitor Outputs:
+14 dBV
RCA Outputs:
+6 dBV
Headphone Output Power 70 mW per Channel into 32 Ohms (Max, 0.1% THD)
Impedance 1/4" FX Send:
200 Ohms
Monitor Outputs:
200 Ohms (Balanced)
RCA Outputs:
200 Ohms
XLR Inputs:
2.4 Kilohms
1/4" Inputs:
≥ 22 Kilohms
Hi-Z Inputs:
1 Megohm
SNR ≥ 90 dB
THD ≤ 0.01%
Audio Storage & Playback
Supported Media SD Card
Memory Card Slot 1 x SDHC
Supported Media Capacity SD:
512 MB Minimum to 2 GB Maximum
SDHC:
4 GB Minimum to 32 GB Maximum
File System Support SD: FAT16
SDHC: FAT32
Compatibility
OS Compatibility Windows XP
Windows Vista
Windows 7
Windows 8
macOS 10.6 or Later
*As of November, 2021: Check with manufacturer for the most up-to-date compatibility
Processor Requirement PC:
300 MHz Intel Pentium or Better
Mac:
266 MHz PowerPC G3 or Better
RAM Requirements PC:
128 MB
Mac:
64 MB
Required Hardware Available USB 2.0 Port
Power
Power Requirements AC/DC Power Adapter (Included)
Power Consumption 12 W
Physical
Operating Temperature 41 to 95°F / 5 to 35°C
Dimensions 20.2 x 4.1 x 13.4" / 514 x 104 x 340 mm
Weight 13.7 lb / 6.2 kg
Packaging Info
Package Weight 16 lb
Box Dimensions (LxWxH) 23.7 x 17.5 x 7.2"
